| Product Specifications | |
|---|---|

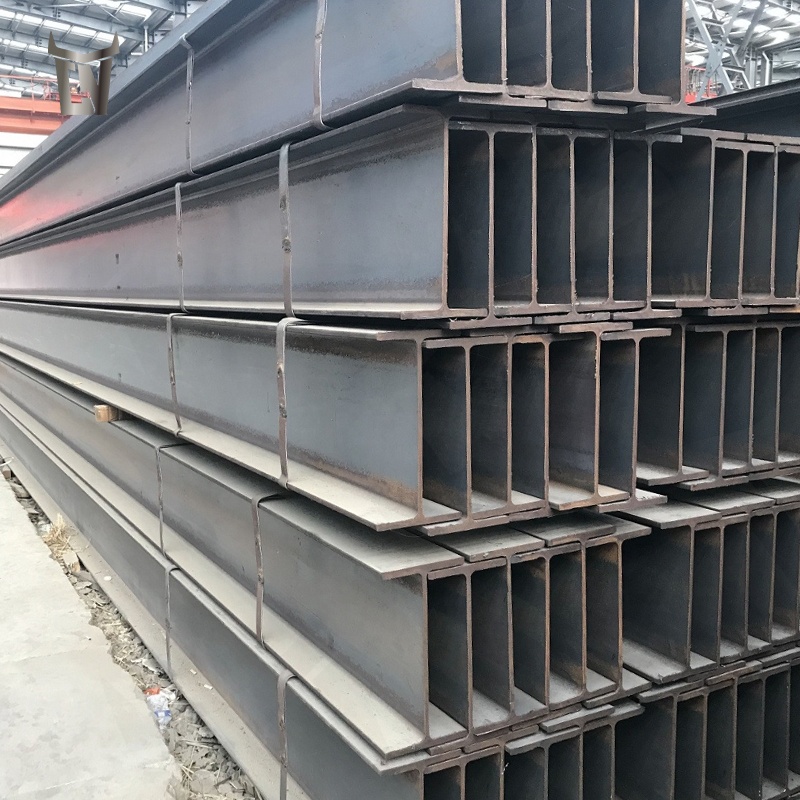

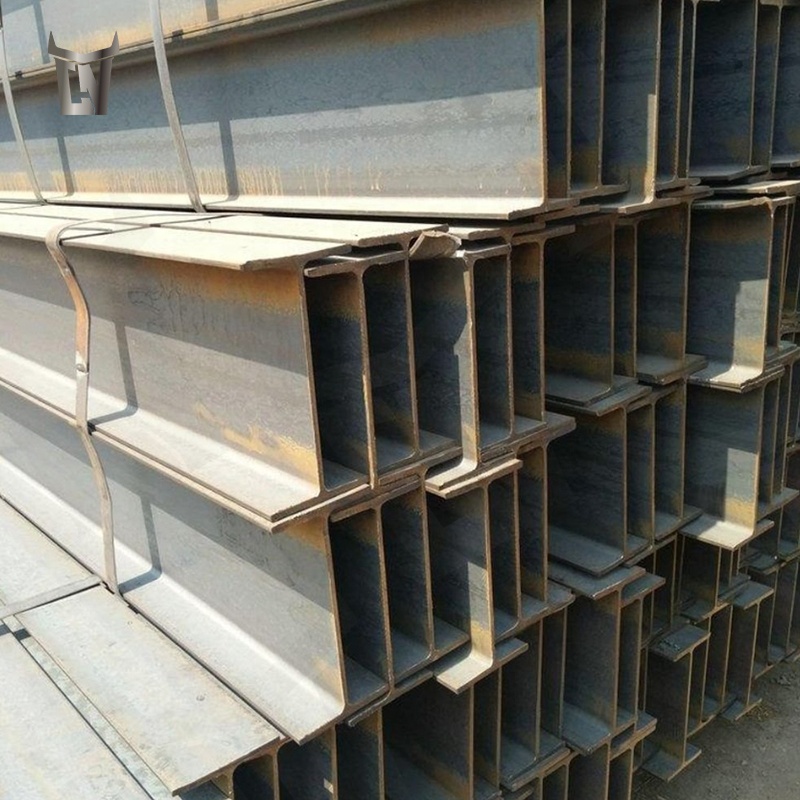

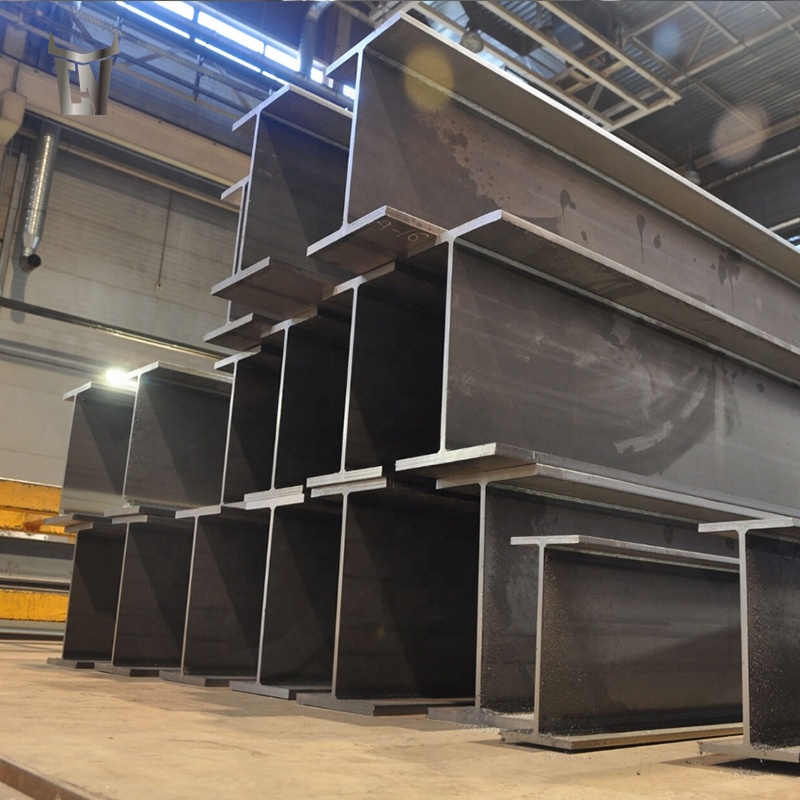

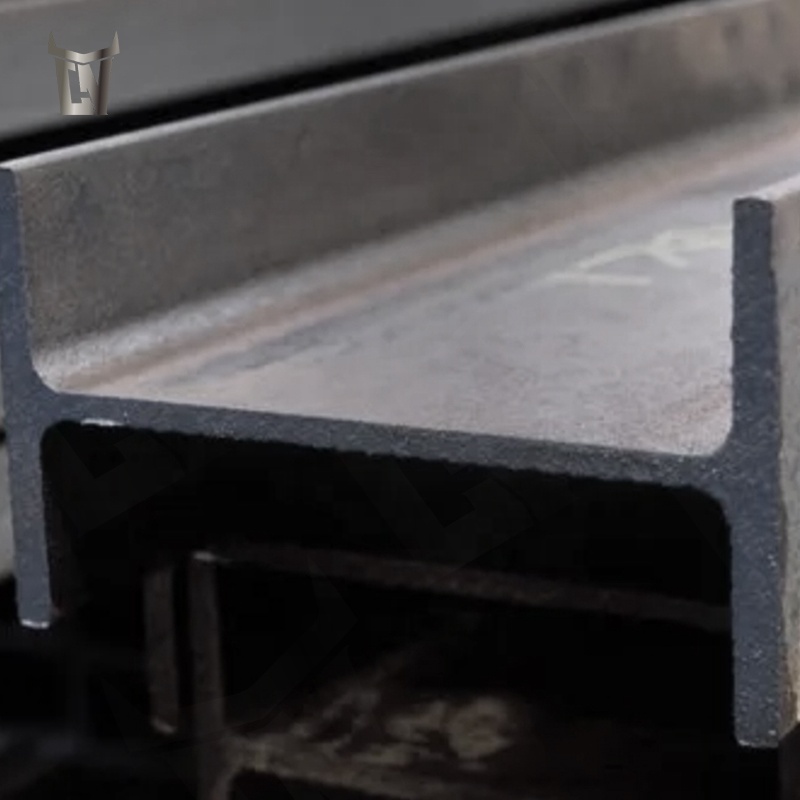

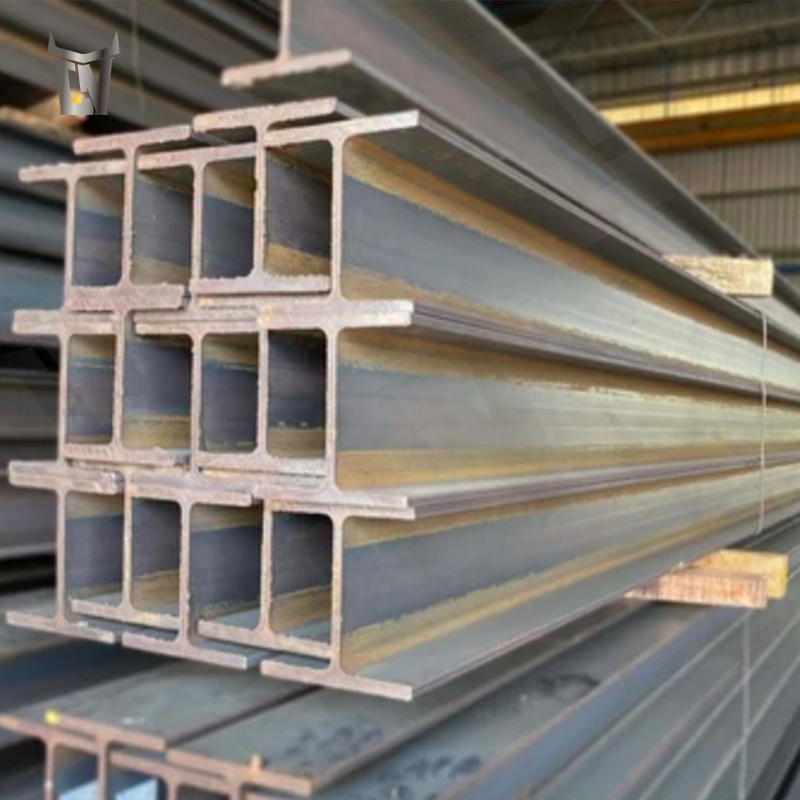

| Product Name | carbon steel h beam |
| Size | 1. Web Width (H): 100-900mm 2. Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm |
| Length | 1m - 12m , or according to your requests. |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Material | Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 |
| Technique | Cold Rolled, Hot Rolled or Welded |
| Application | Industry, Construction, Decoration, Shipbuilding, Bridging, etc. |
| Price Item | FOB, CIF, DDU, FCA, EXW, etc. |
| Supply Ability | Export standard packing or according to customers' requirement |
| Packing | Export standard packing or according to customers' requirement |
| Size and Theoretical Weight Chart (Length = 6-12 meters) | |||||
|---|---|---|---|---|---|
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 100*50*5*7 | 9.3 | 250*125*6*9 | 29 | 446*199*8*12 | 65.1 |
| 100*100*6*8 | 16.9 | 250*250*9*14 | 71.8 | 450*200*9*14 | 74.9 |
| 125*60*6*8 | 13.1 | 294*200*8*12 | 55.8 | 482*300*11*15 | 110.8 |
| 125*125*6.5*9 | 23.6 | 298*149*5.5*8 | 32 | 488*300*11*18 | 124.9 |
| 148*100*6*9 | 31.1 | 340*250*9*14 | 36.7 | 496*199*9*14 | 77.9 |
| 150*75*5*7 | 14 | 300*150*6.5*9 | 93 | 500*200*10*16 | 88.1 |
| 150*150*7*10 | 20.7 | 300*300*10*15 | 78.1 | 582*300*12*17 | 132.8 |
| 175*90*5*8 | 18 | 346*174*6*9 | 41.2 | 588*300*12*20 | 147 |
| 175*175*7.5*11 | 40.4 | 350*175*7*11 | 49.4 | 596*199*10*15 | 92.4 |
| 194*150*6*9 | 29.9 | 350*350*12*19 | 134.9 | 600*200*11*17 | 103.4 |
| 198*99*4.5*7 | 17.8 | 390*300*10*16 | 104.6 | 700*300*13*24 | 181.8 |
| 200*100*5.5*8 | 20.9 | 396*199*7*11 | 56.1 | 800*300*14*26 | 206.8 |
| 200*200*8*12 | 49.9 | 400*200*8*13 | 65.4 | 900*300*16*28 | 240.1 |
| 244*175*7*11 | 43.6 | 400*400*13*21 | 171.7 | - | - |
| 248*124*5*8 | 25.1 | 440*300*11*18 | 120.8 | - | - |
