Product Description

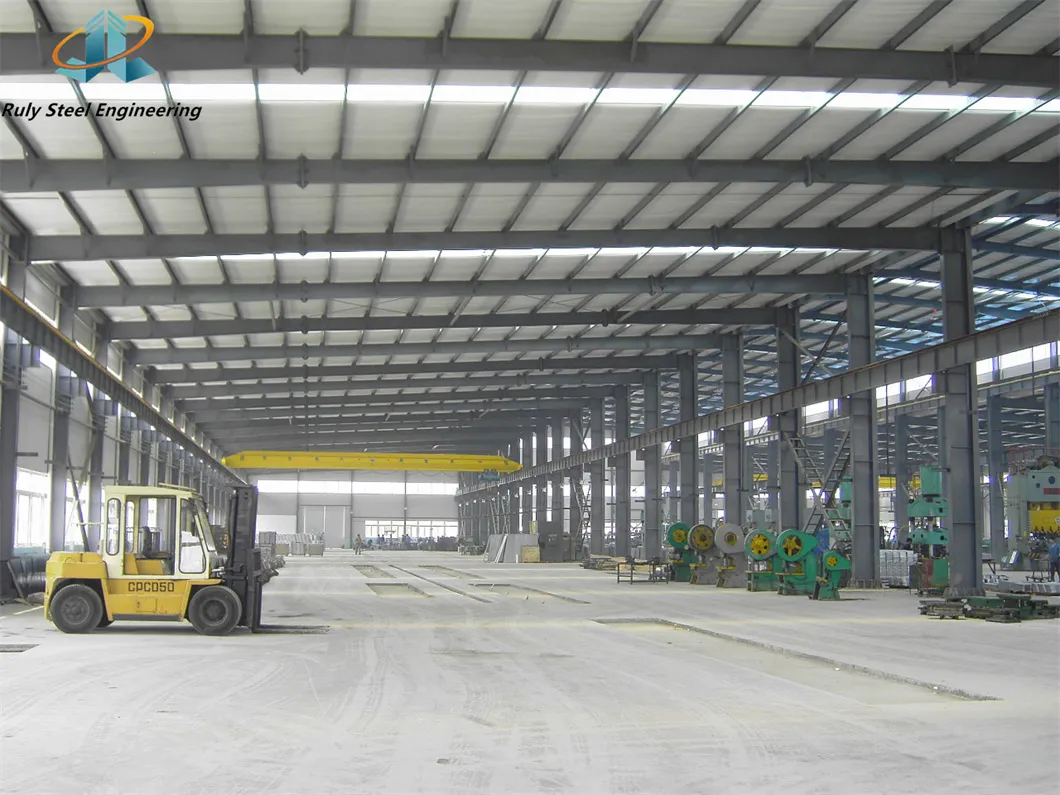

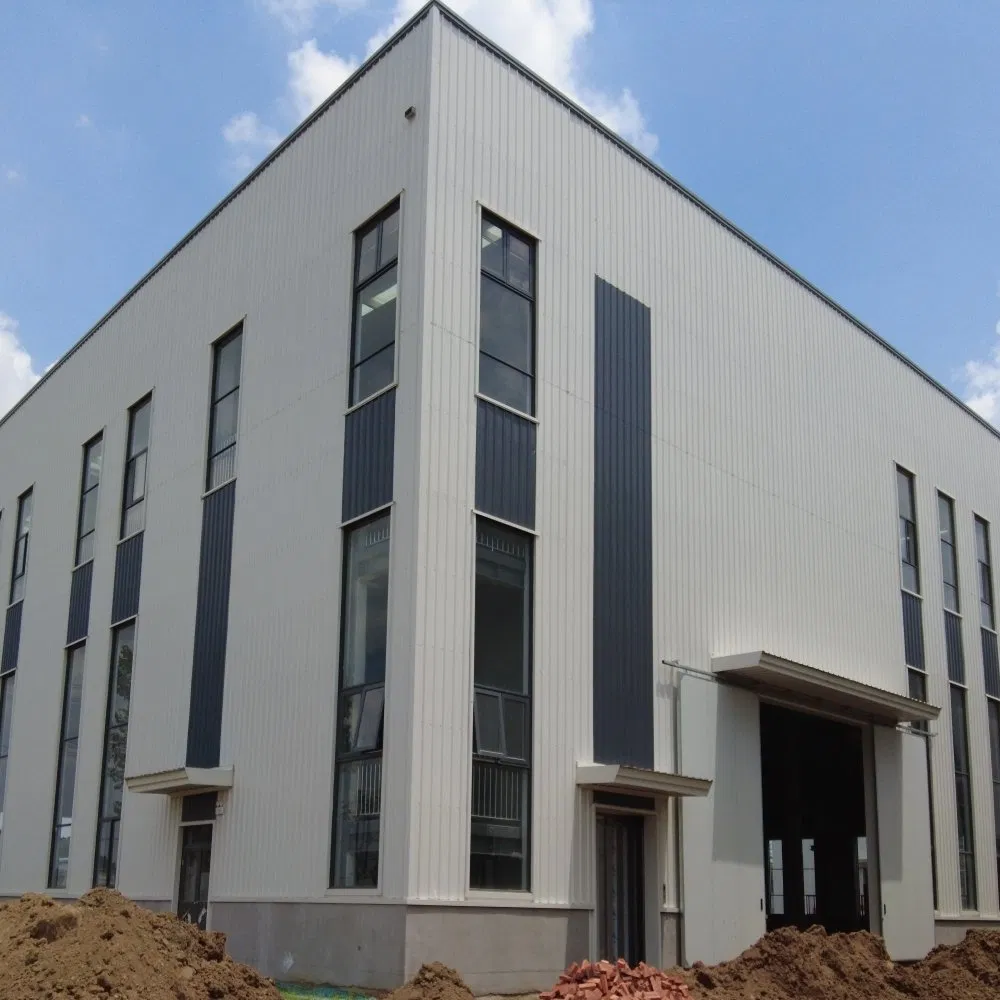

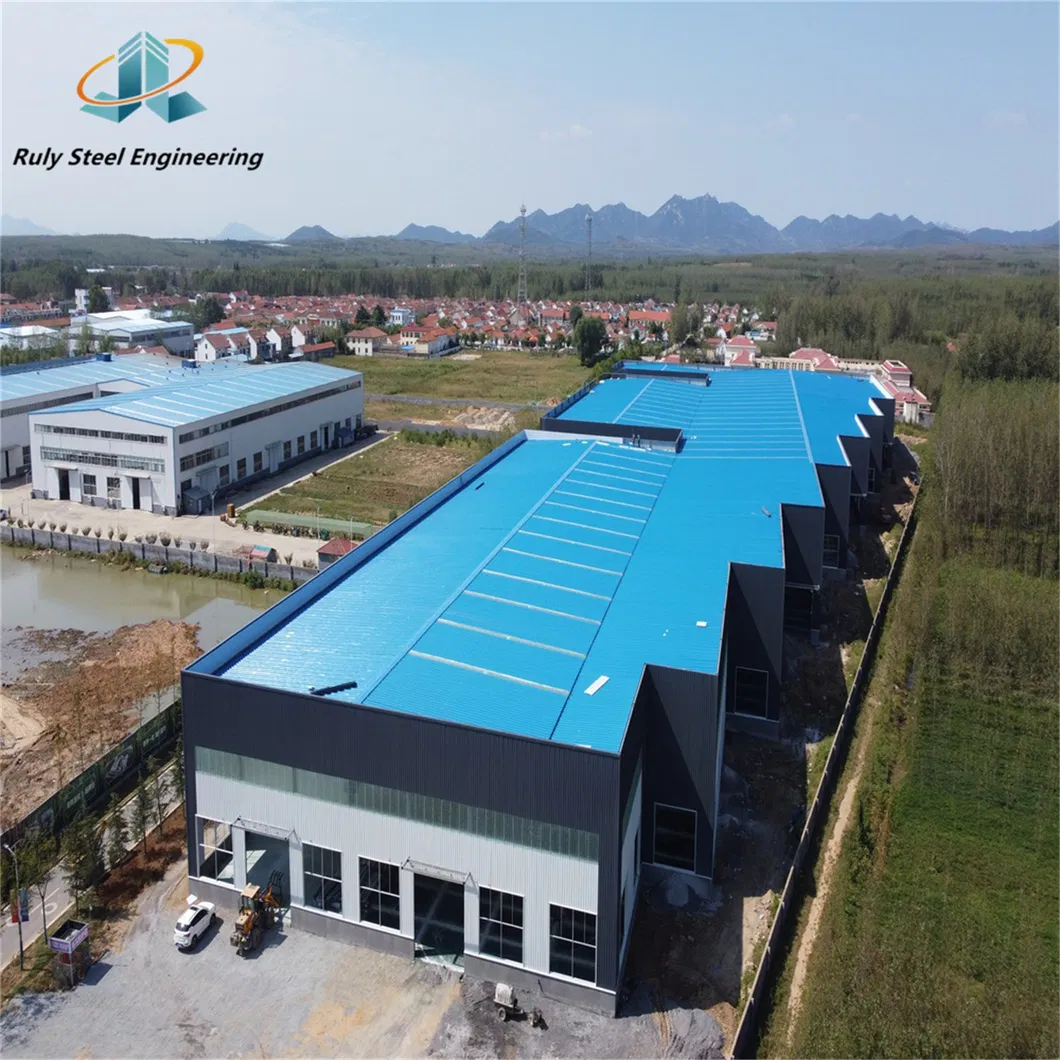

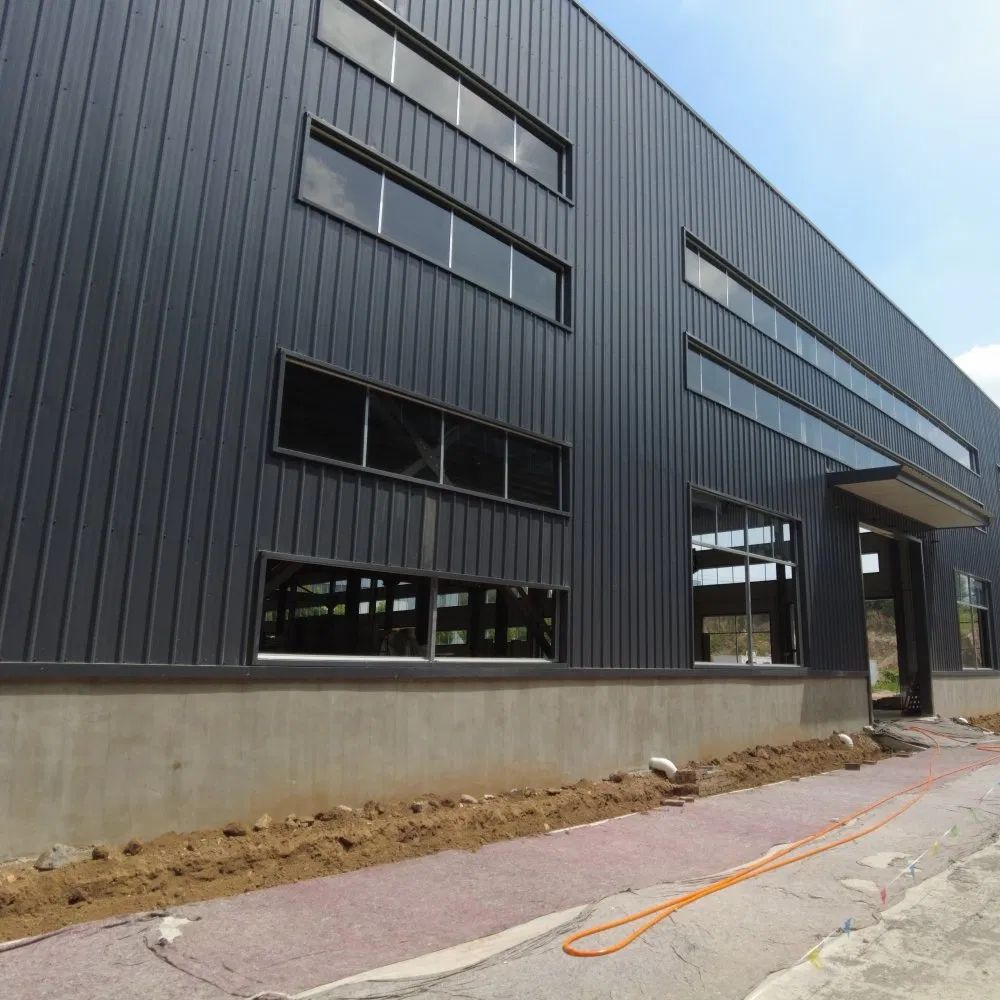

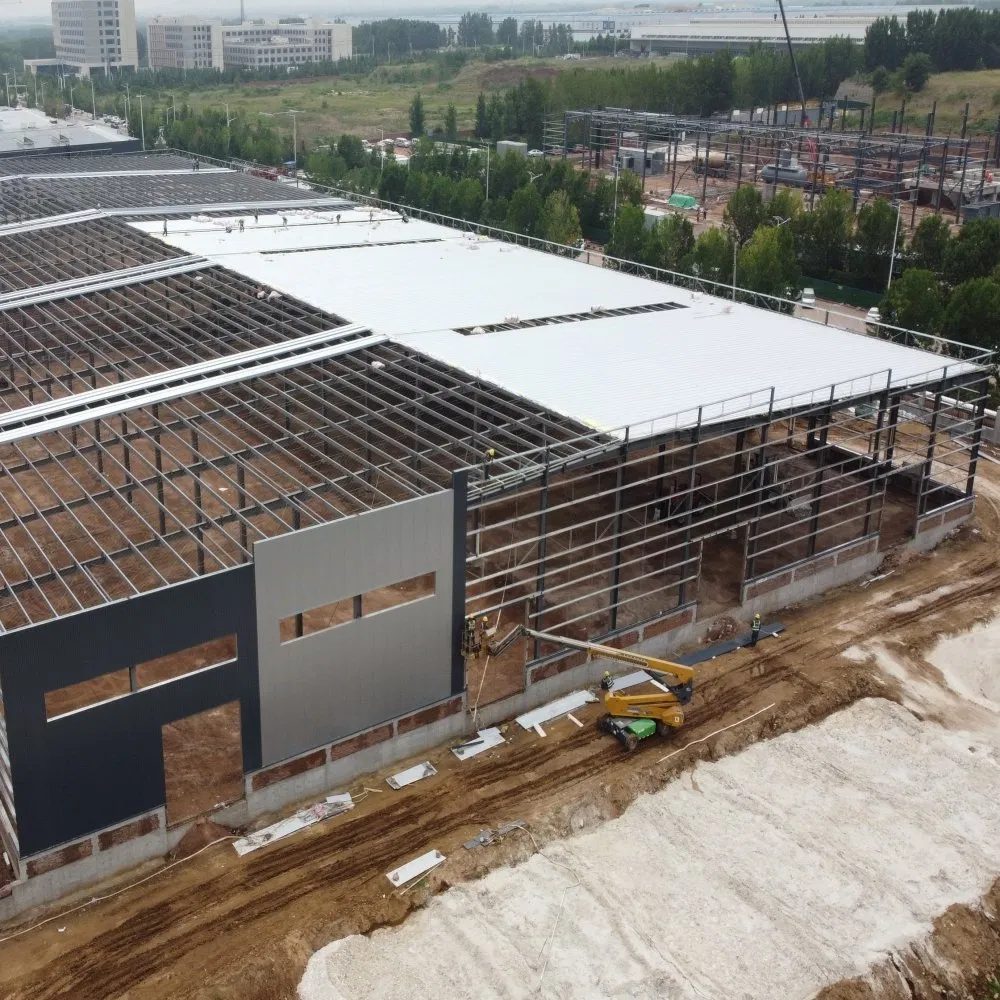

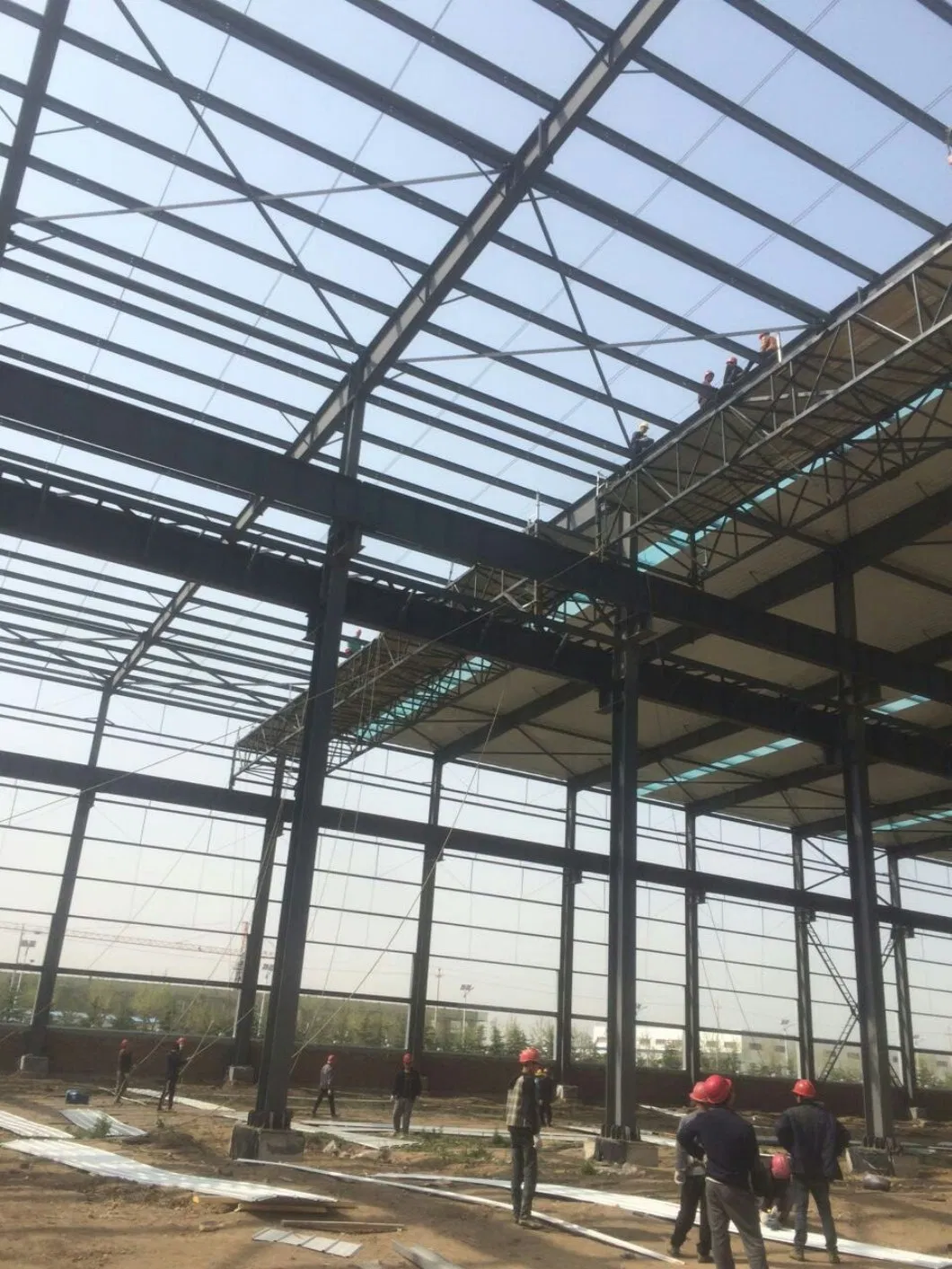

The main load-bearing component of industrial steel warehouse building is steel structure. It includes pillars, top beams, basements and supporting systems. It also includes wall and roof purlins. Q345B steel for the main frame and Q235B steel for the support system. Monochrome metal panels are used for the walls and roof. Use sandwich panels according to local temperature conditions. When calculating the quotation for a steel structure warehouse, dimensions are essential, including length, width and height. Local wind speed and snowfall will also affect construction costs.

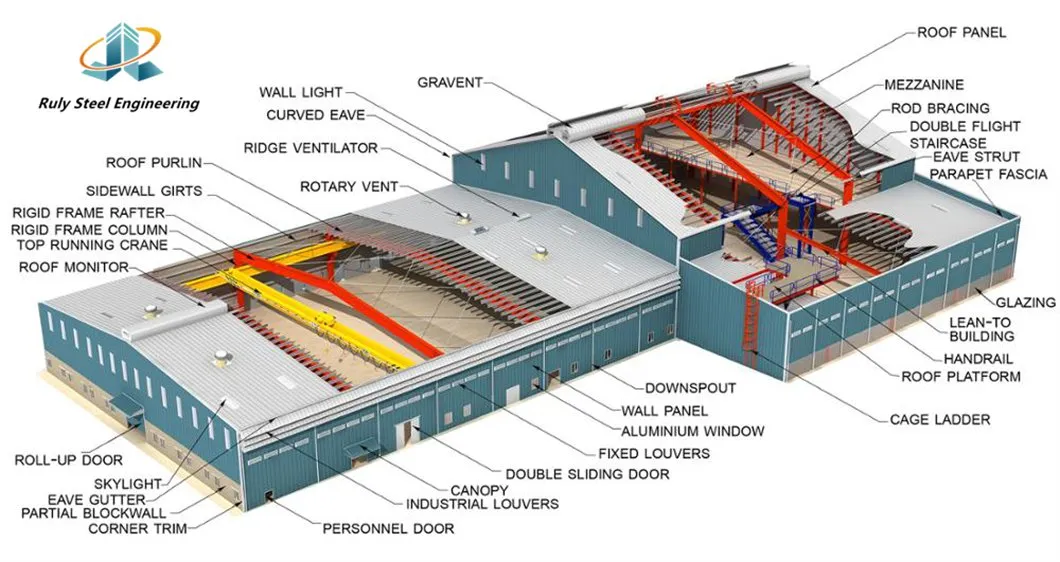

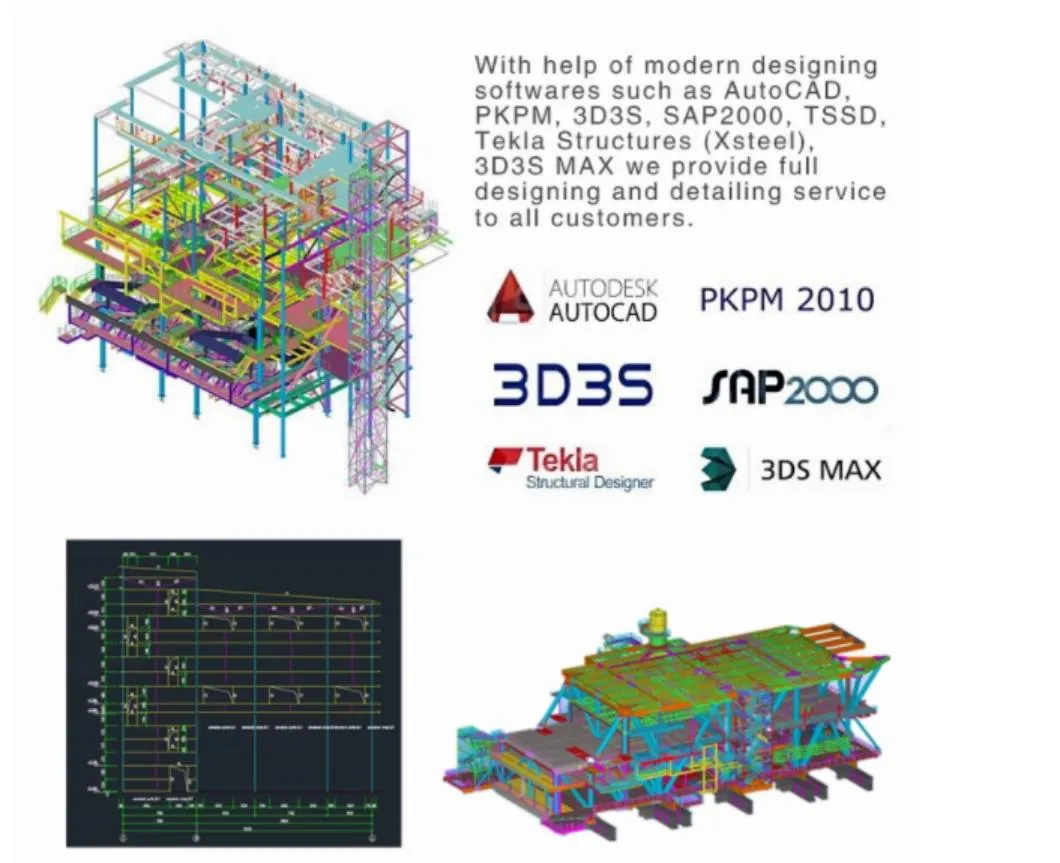

Design and Engineering Visuals
For each custom project, preliminary layout drawings, 3D Tekla models, and detailed installation drawings are designed to support precise completion.
Inquiry Checklist for Quotation
To provide an accurate design and competitive quotation, please provide the details below whenever possible.
| No. |
Required Design Parameters |
Your Project Details / Target Requirements |
| 1 |
Project Location (Where will it be built?) |
_____ Country, Area |
| 2 |
Size Requirements |
_____ Length * _____ Width * _____ Height (mm) |
| 3 |
Wind Load (Max wind speed) |
_____ kn/m², _____ km/h, _____ m/s |
| 4 |
Snow Load (Max snow height) |
_____ kn/m², _____ mm |
| 5 |
Anti-Earthquake Level |
_____ Level |
| 6 |
Brick Wall Requirement |
If yes, 1.2m high or 1.5m high is preferred |
| 7 |
Thermal Insulation Preference |
If yes: EPS, fiberglass wool, rockwool, or PU sandwich panels. If no: Single metal sheets (much more economical). |
| 8 |
Door Quantity & Size |
_____ Units, _____ Width (mm) * _____ Height (mm) |
| 9 |
Window Quantity & Size |
_____ Units, _____ Width (mm) * _____ Height (mm) |
| 10 |

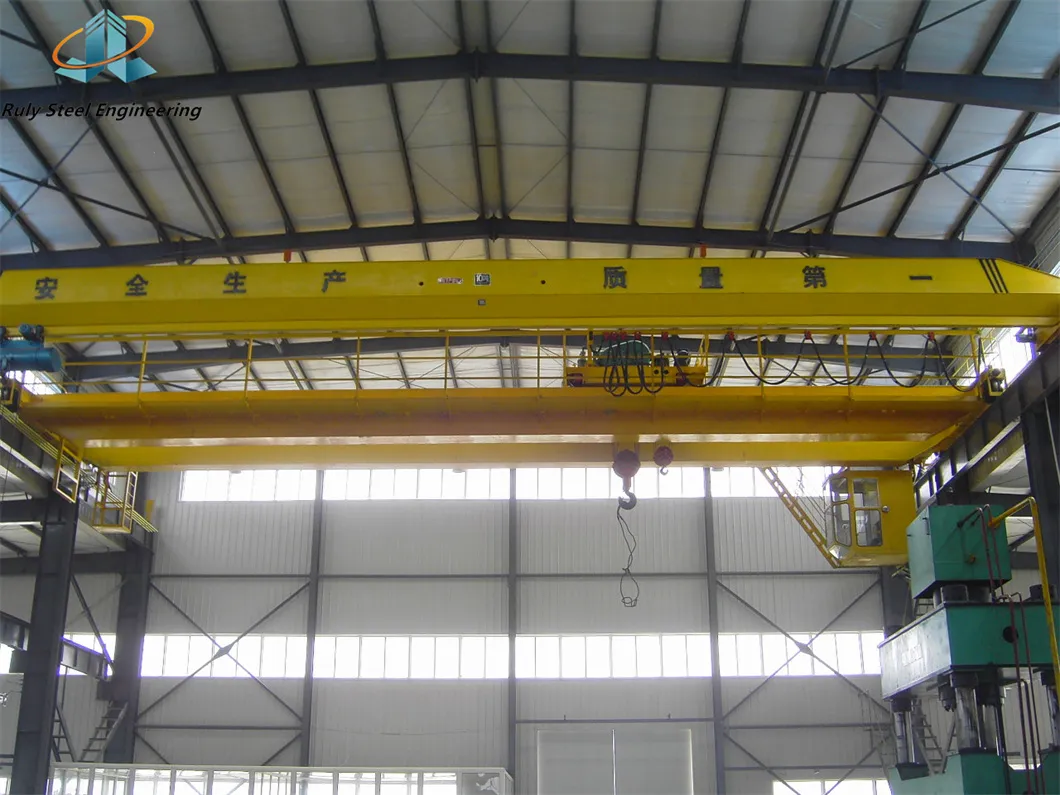

Crane Needed or Not |
If yes, _____ Units, max lifting weight _____ tons, max lifting height _____ m |
Frequently Asked Questions
Q
What are the primary structural steel grades used in the framework?
We primarily use high-strength Q345B steel for the main framing systems (such as columns and beams) and durable Q235B steel for secondary supporting systems and structural bracings.
Q
How are the steel components treated for corrosion resistance?
All major components undergo strict Sa 2.5 grade shot blasting to remove rust and impurities, followed immediately by high-quality primer painting (DFT > 75UM) or high-durability hot-dip galvanizing to ensure a structural service life of up to 50 years.
Q
What cladding and insulation options are available for walls and roofs?
Depending on local climate conditions and your thermal insulation requirements, we offer sandwich panels with EPS, Rock Wool, PU, or Glass Wool cores. For projects requiring no insulation, economical monochrome single-skin metal steel sheets are also available.
Q
Which design tools and engineering standards do you support?
Our structural engineering team utilizes advanced software including CAD, Tekla 3D modeling, PKPM, and BIM to prepare detailed preliminary layouts, shop drawings, and easy-to-follow onsite installation guides.
Q

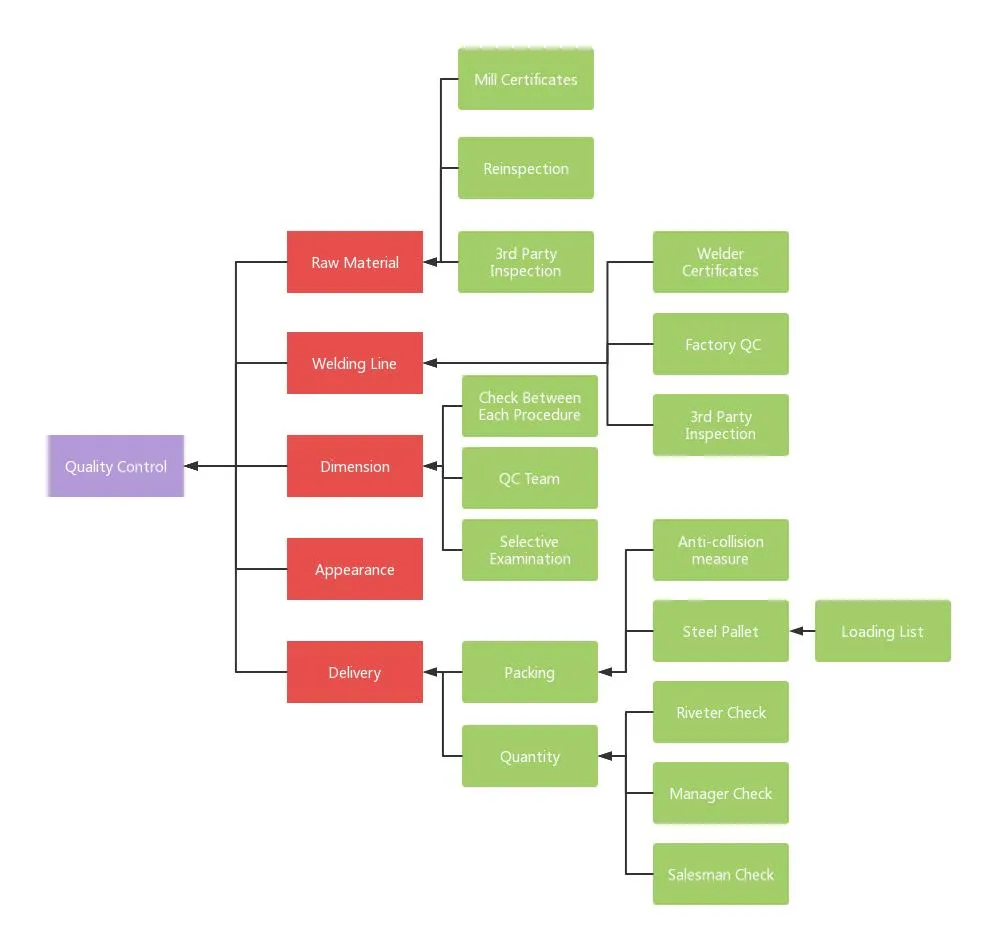

What quality testing procedures are conducted before shipping?
Our strict quality control system includes 100% dimensional tolerance testing (< 1mm), in-house yield and tensile strength testing of raw material, 20% sample weld ultrasonic testing, and 20% magnetic powder testing to ensure defect-free, smooth connections.
Q
How is the prefabricated steel structure building delivered and installed?

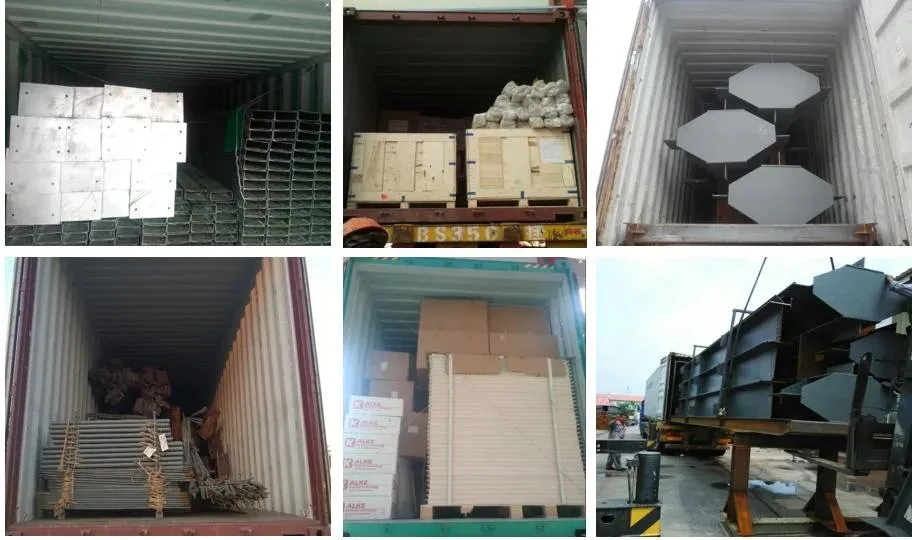

The components are secured using high-quality seaworthy packaging to prevent transit damage. Once delivered on-site, the structural parts are quickly bolted together according to the customized layout and structural design drawings, supported by professional engineer guidance.
