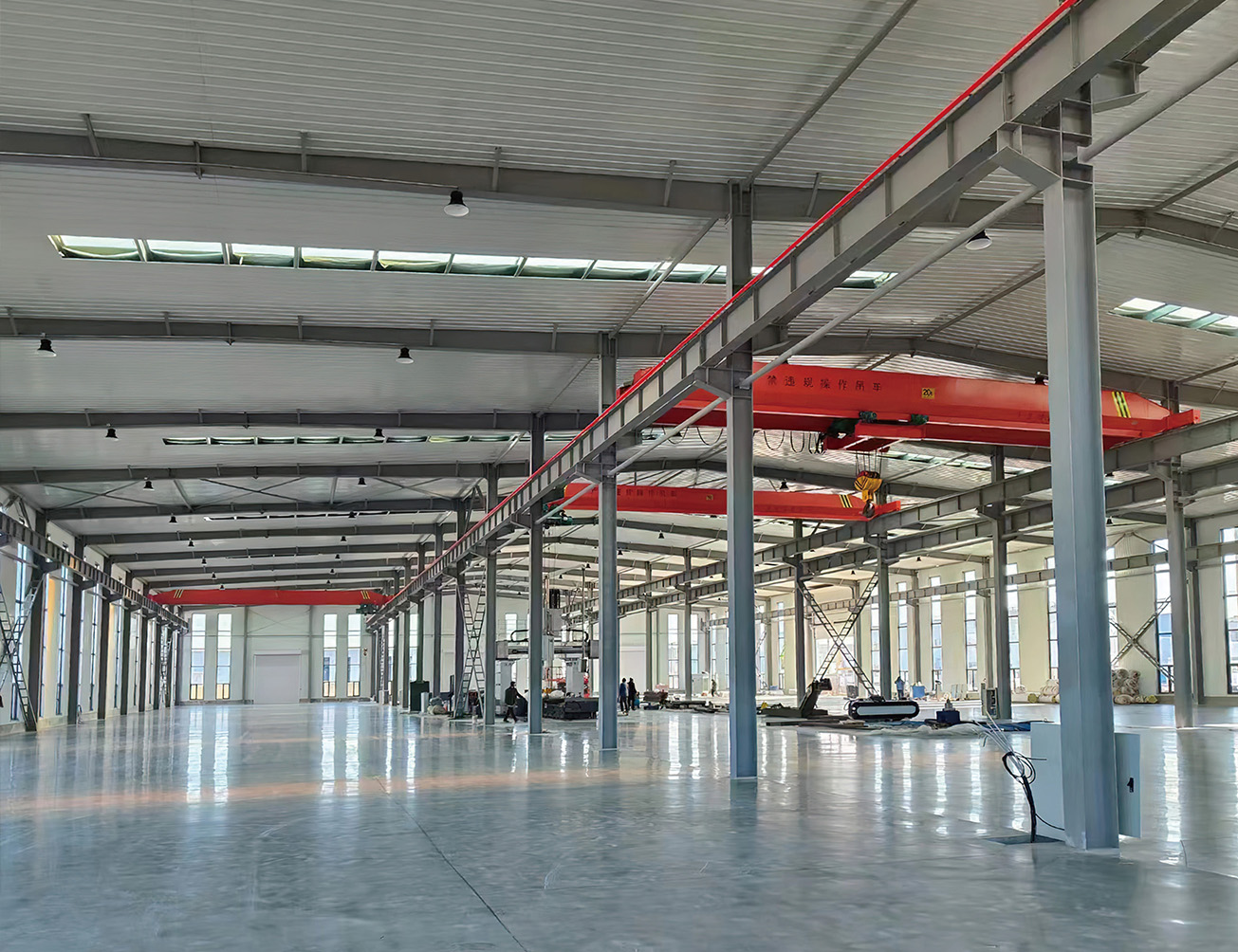

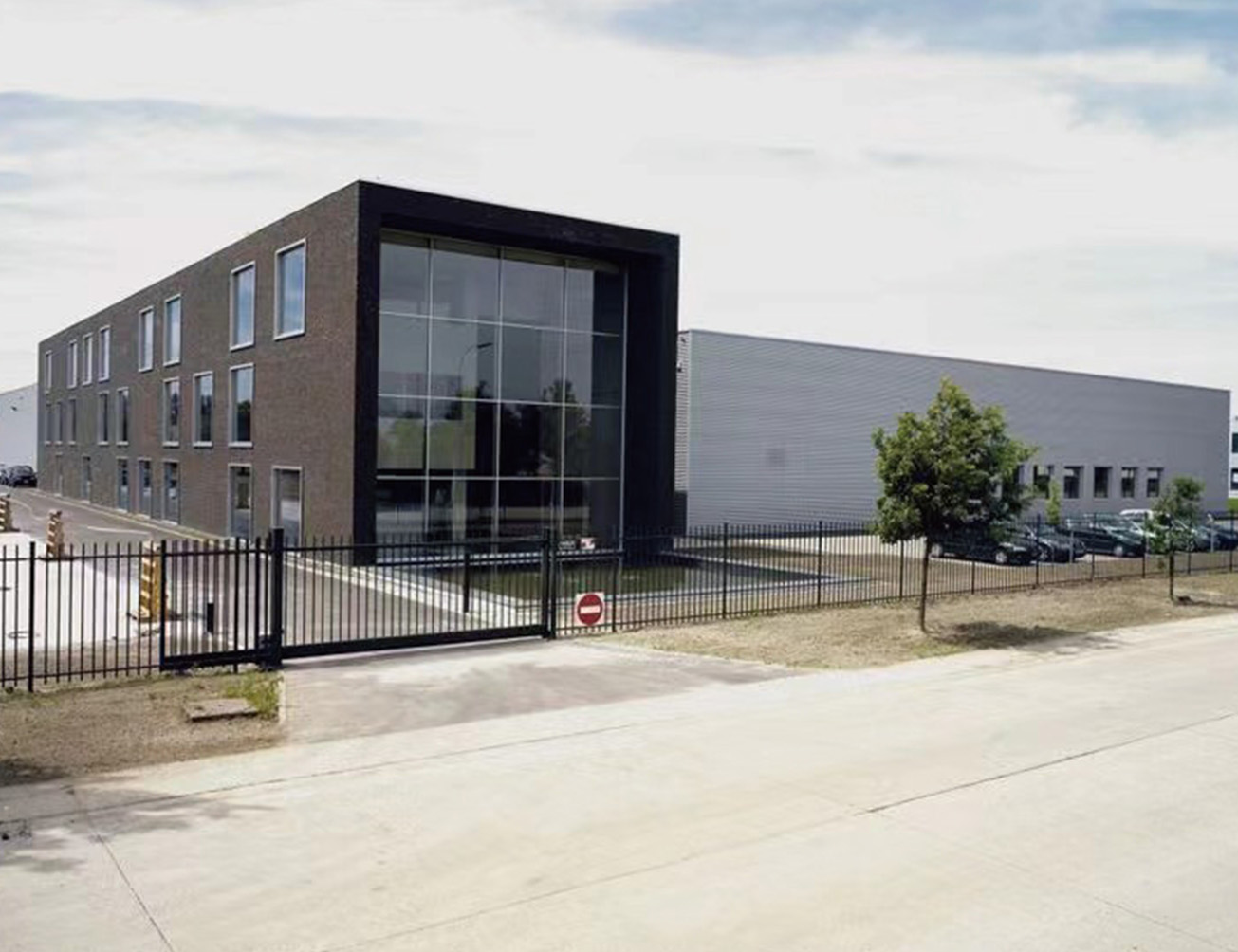

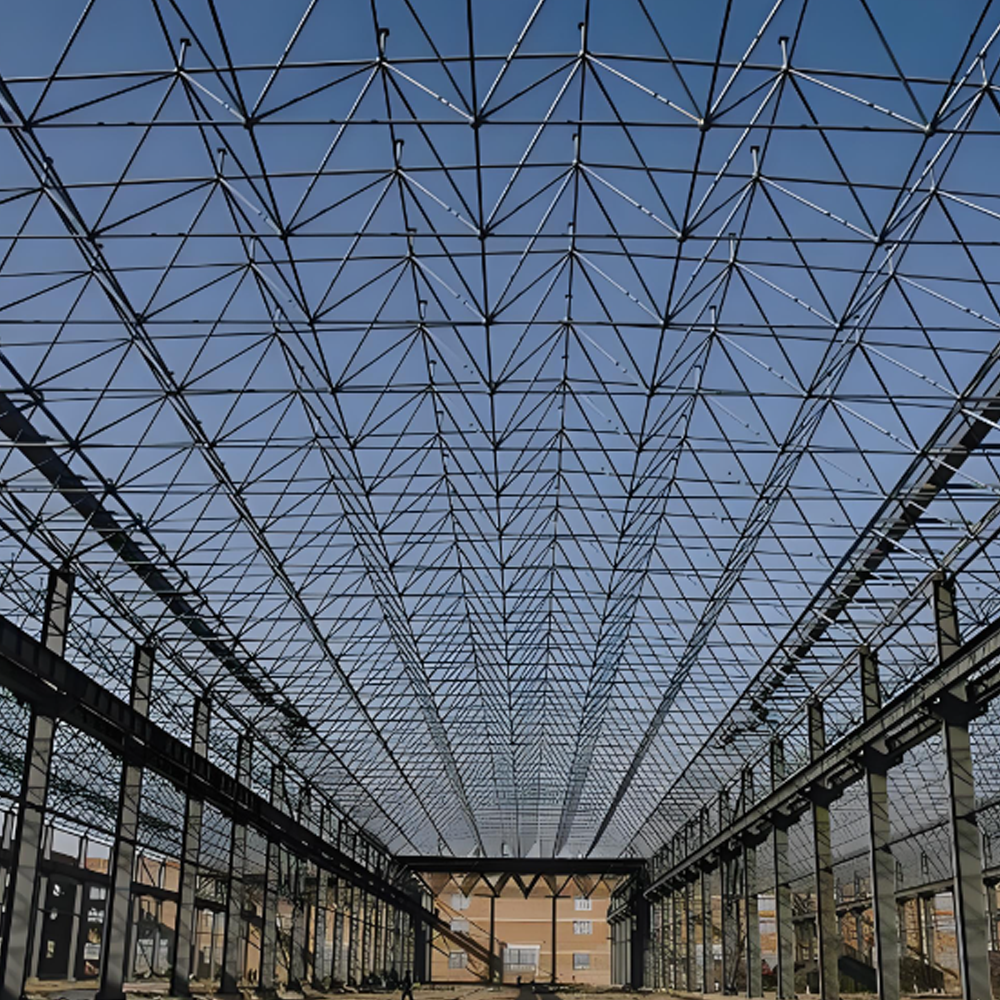

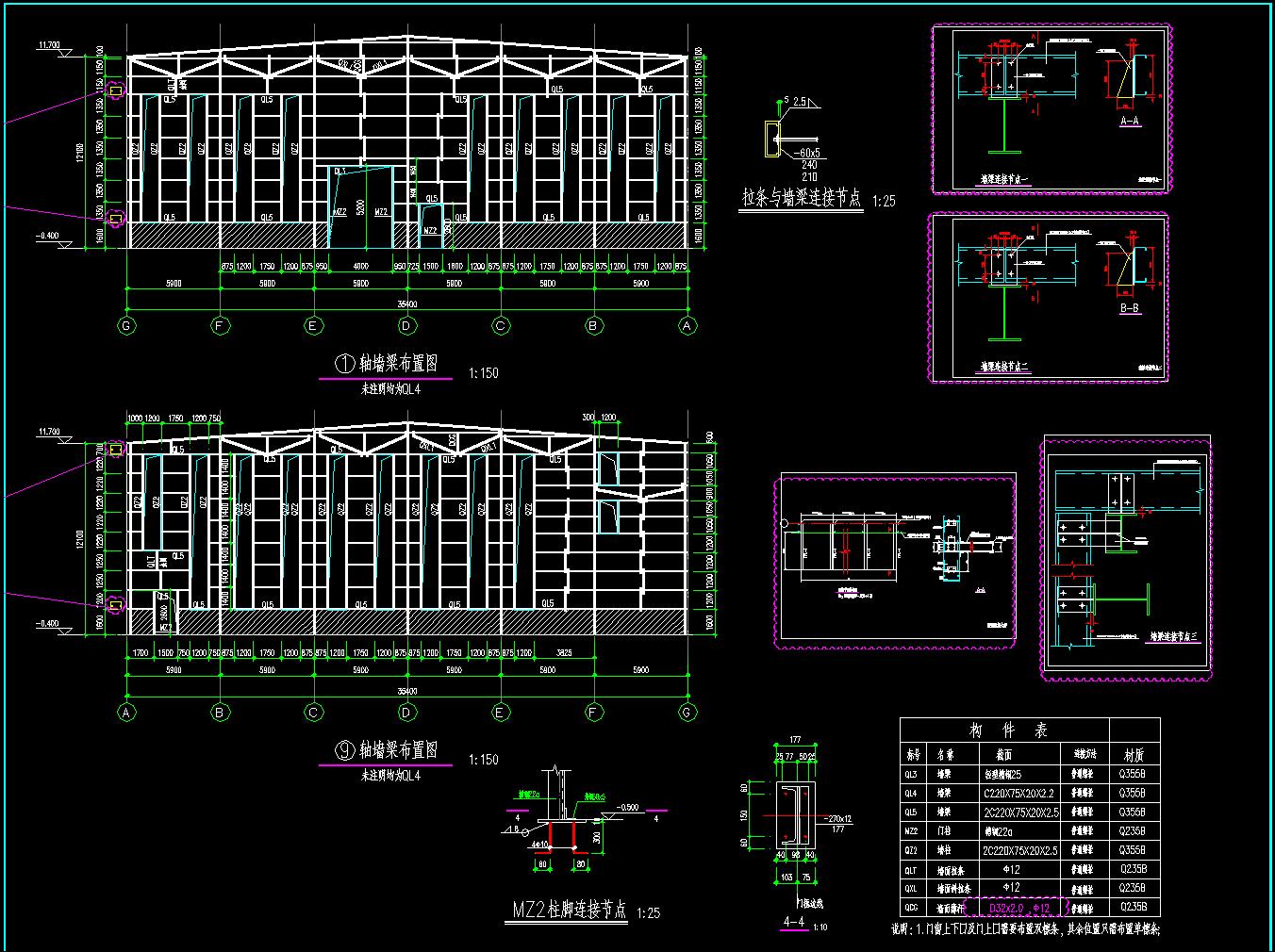

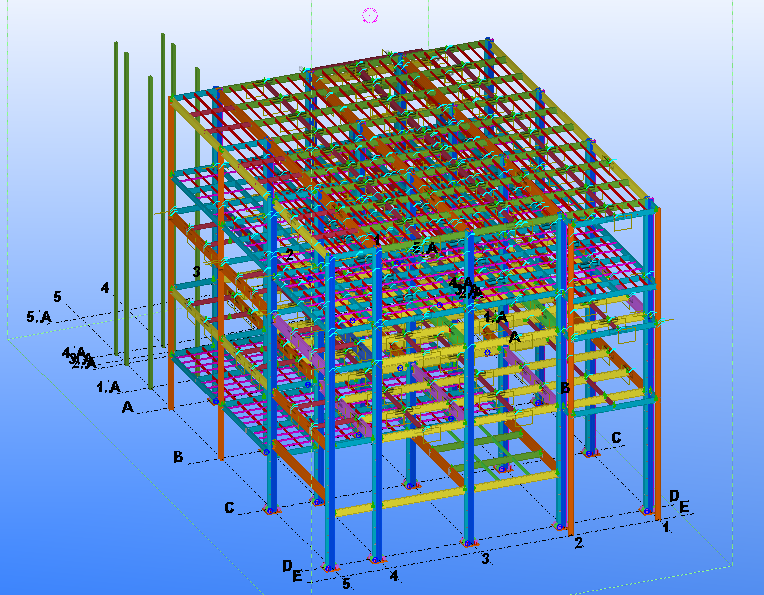

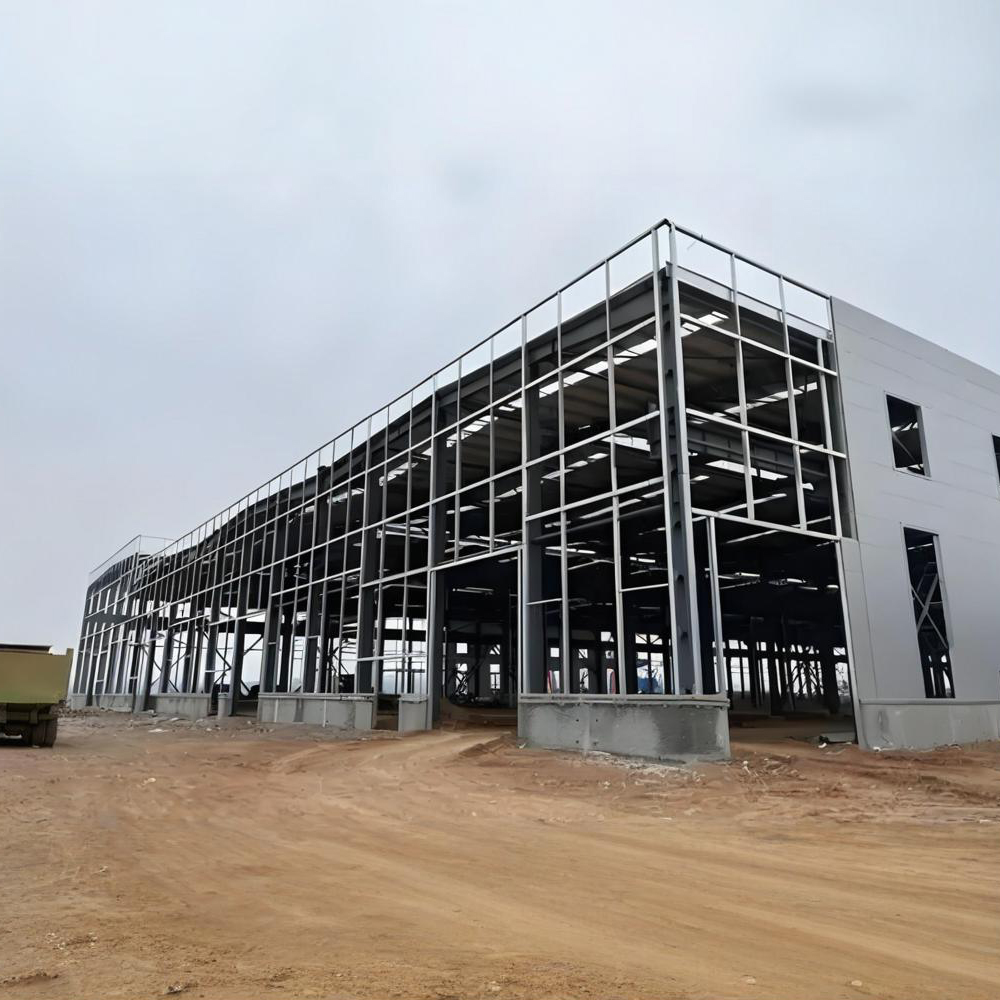

Steel structure buildings are fully customizable solutions tailored to your unique needs. Even if the reference designs we provide differ significantly from your requirements, there’s no need to worry. Whether you need prefabricated warehouses, multi-story facilities, or any structure (larger, smaller, or customized dimensions), simply share your technical specifications, sketches, or conceptual drawings.

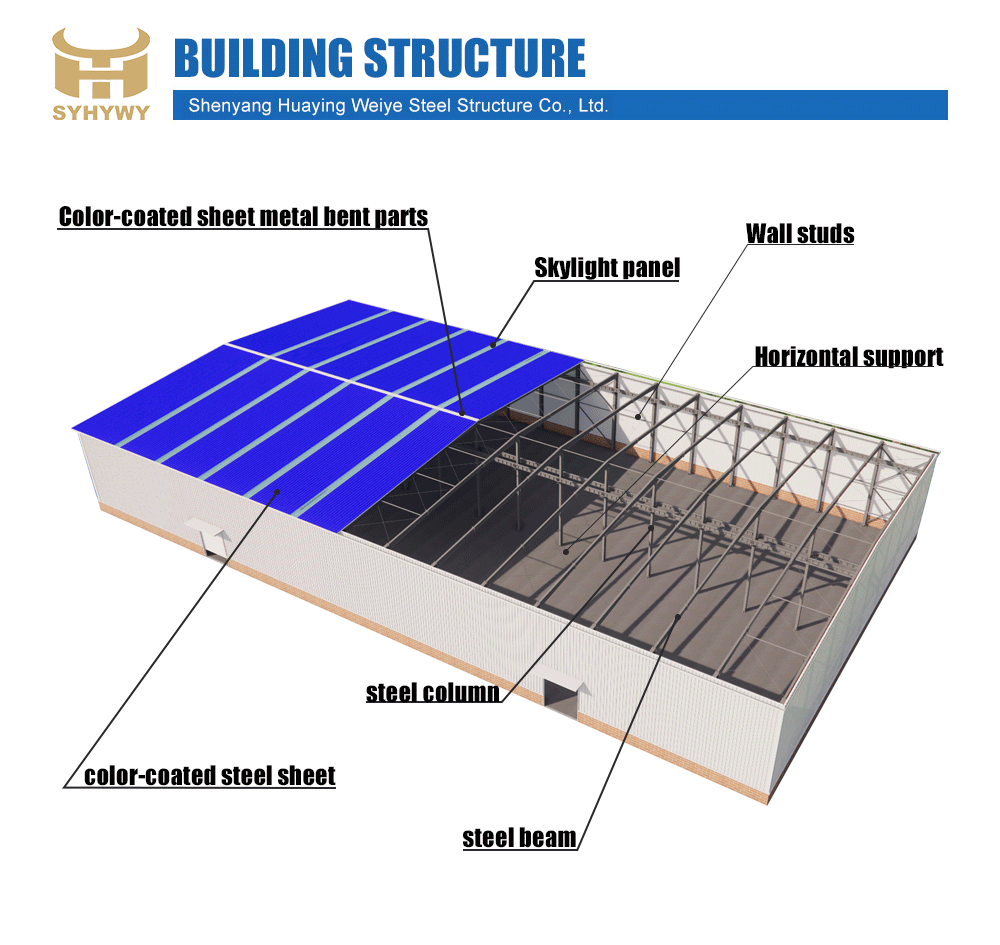

| Items | Specifications |
|---|---|

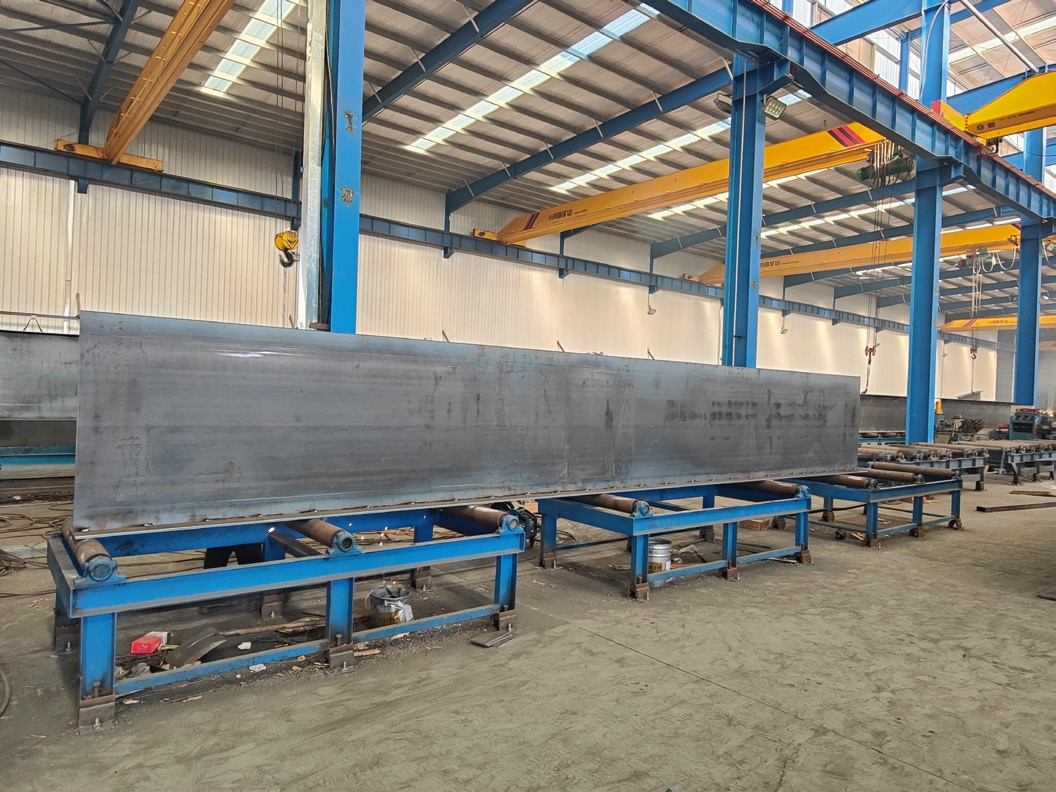

| Main structure | PEB Welded H-shaped steel, Q355B or Q235B |
| Anti-rust protection | Hot dip galvanized or anti-rust painting |

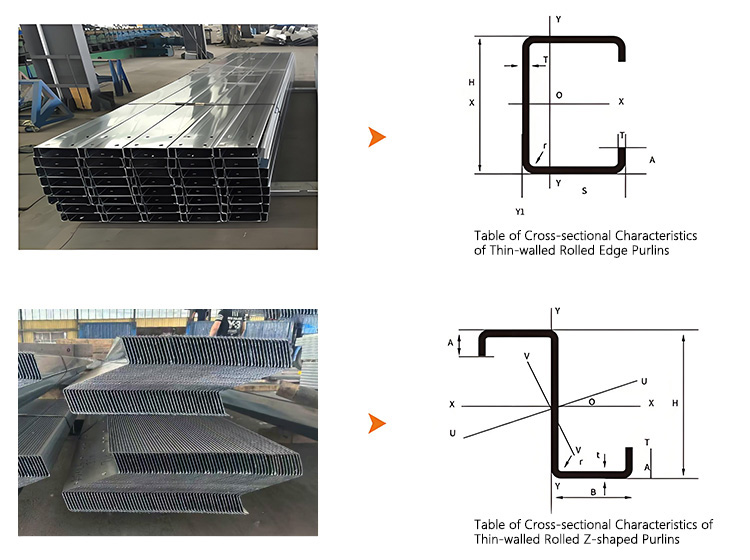

| Purlin | Cold rolled C or Z steel, Q355 or Q235 |

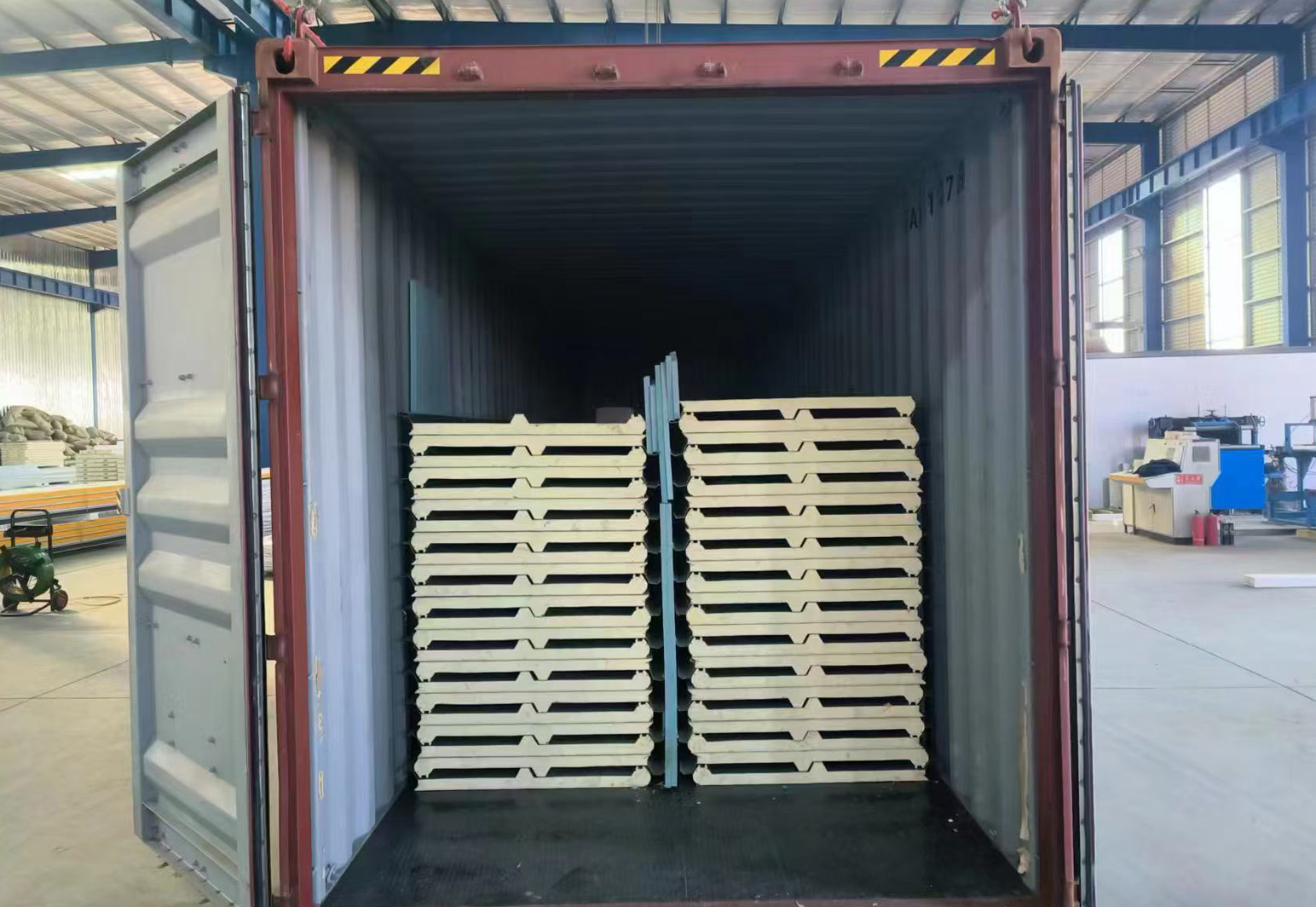

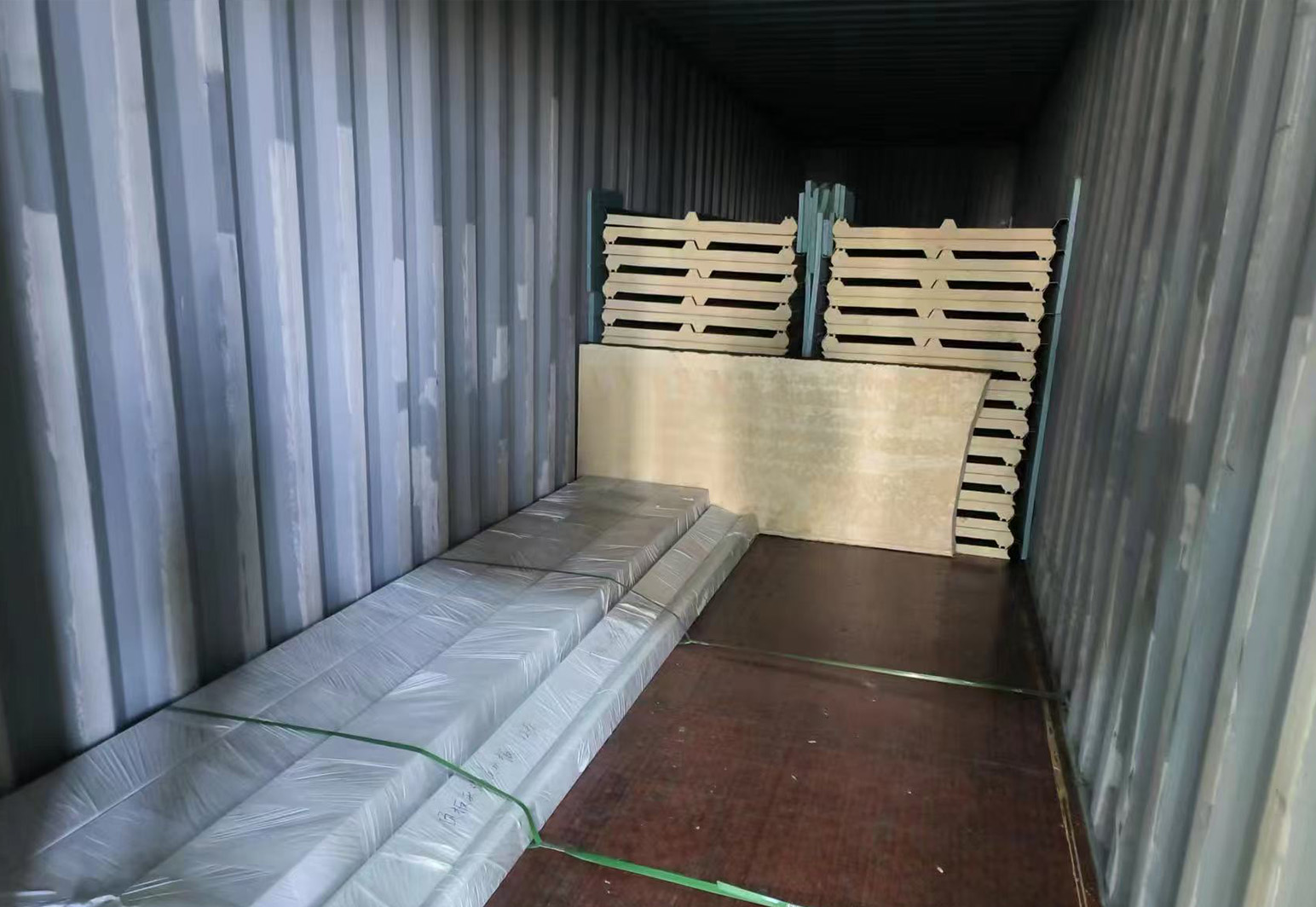

| Roof and wall | Single layer steel sheet or sandwich panel |
| Gutter | Heavy duty galvanized steel/Stainless Steel |
| Downpipe | PVC |
| Door | Sliding/Swing/Rolling Door |
| Windows | UPVC or aluminum alloy |
| Other components available upon request. Please provide requirements for detailed custom design. | |
| Model | Layout Size (mm) | Hole Spacing | ||||
|---|---|---|---|---|---|---|
| H | B1 | B2 | C | T | ||
| Z100 | 100 | 55 | 50 | 20 | 2.0-3.0 | Adjustable |
| Z120 | 120 | 55 | 50 | 20 | 2.0-3.0 | Adjustable |
| Z150 | 150 | 67 | 61 | 20 | 2.0-3.0 | Adjustable |
| Z200 | 200 | 67 | 61 | 20 | 2.0-3.0 | Adjustable |
| Z250 | 250 | 78 | 72 | 20 | 2.0-3.0 | Adjustable |
