| Model NO. | SSB-003 |
|---|---|

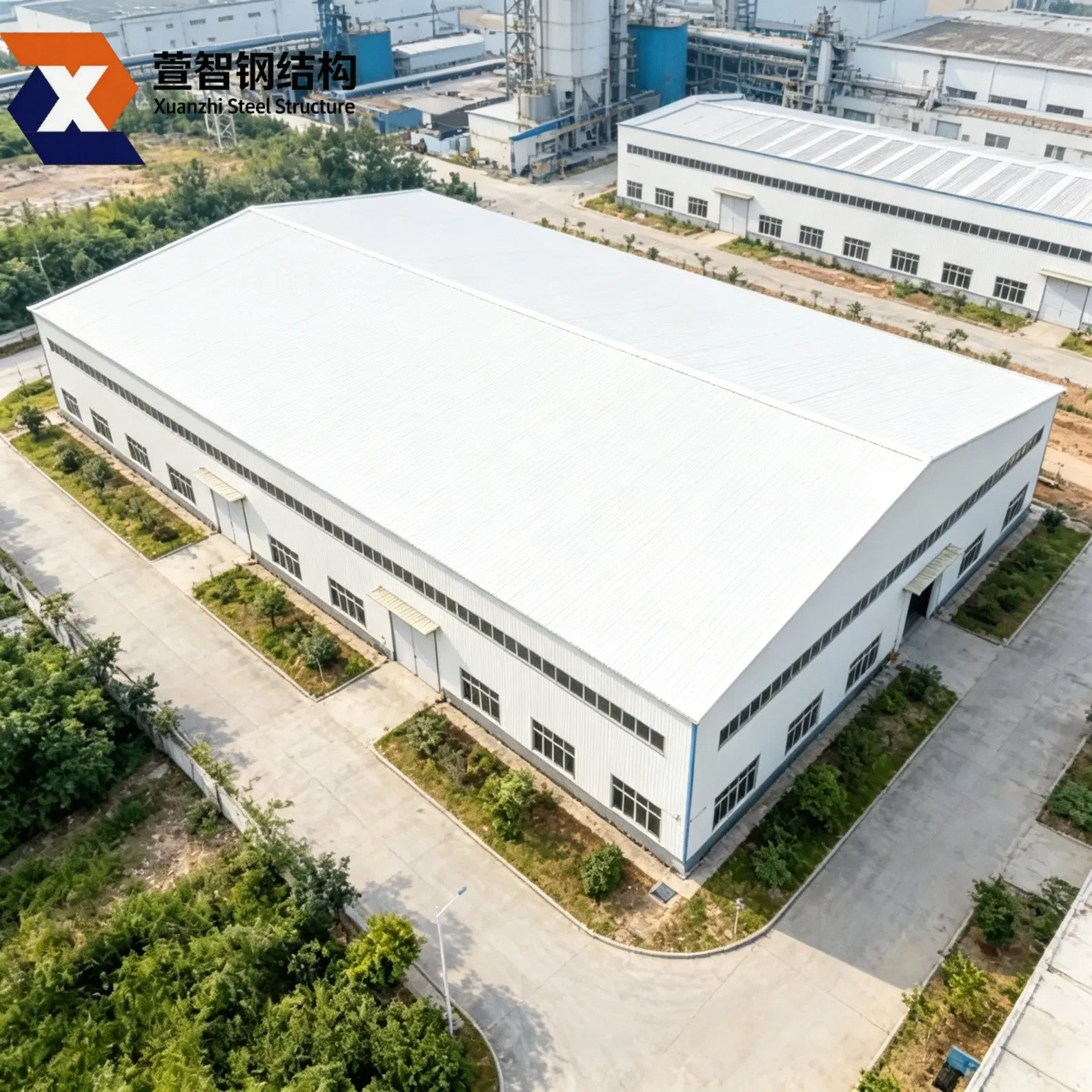

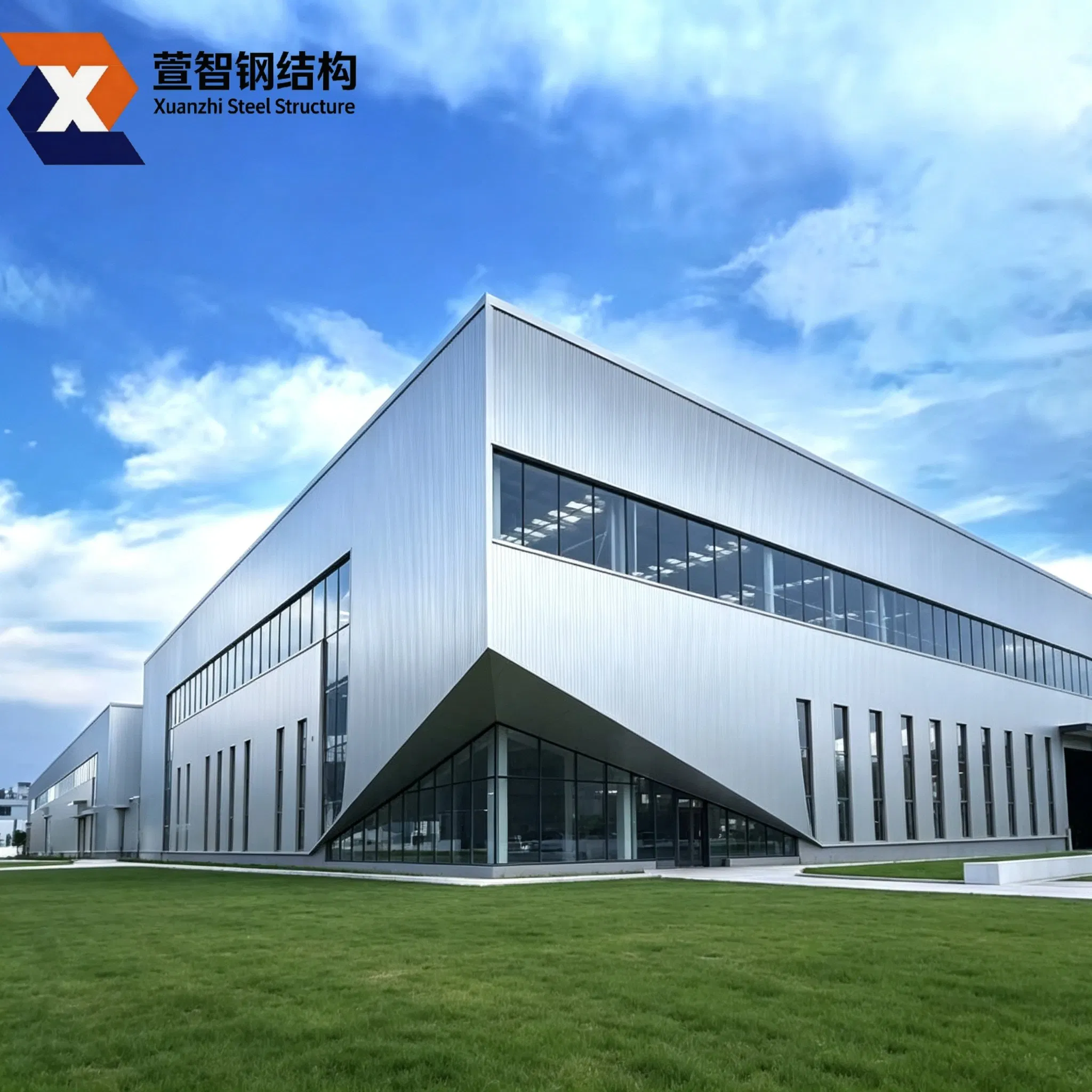

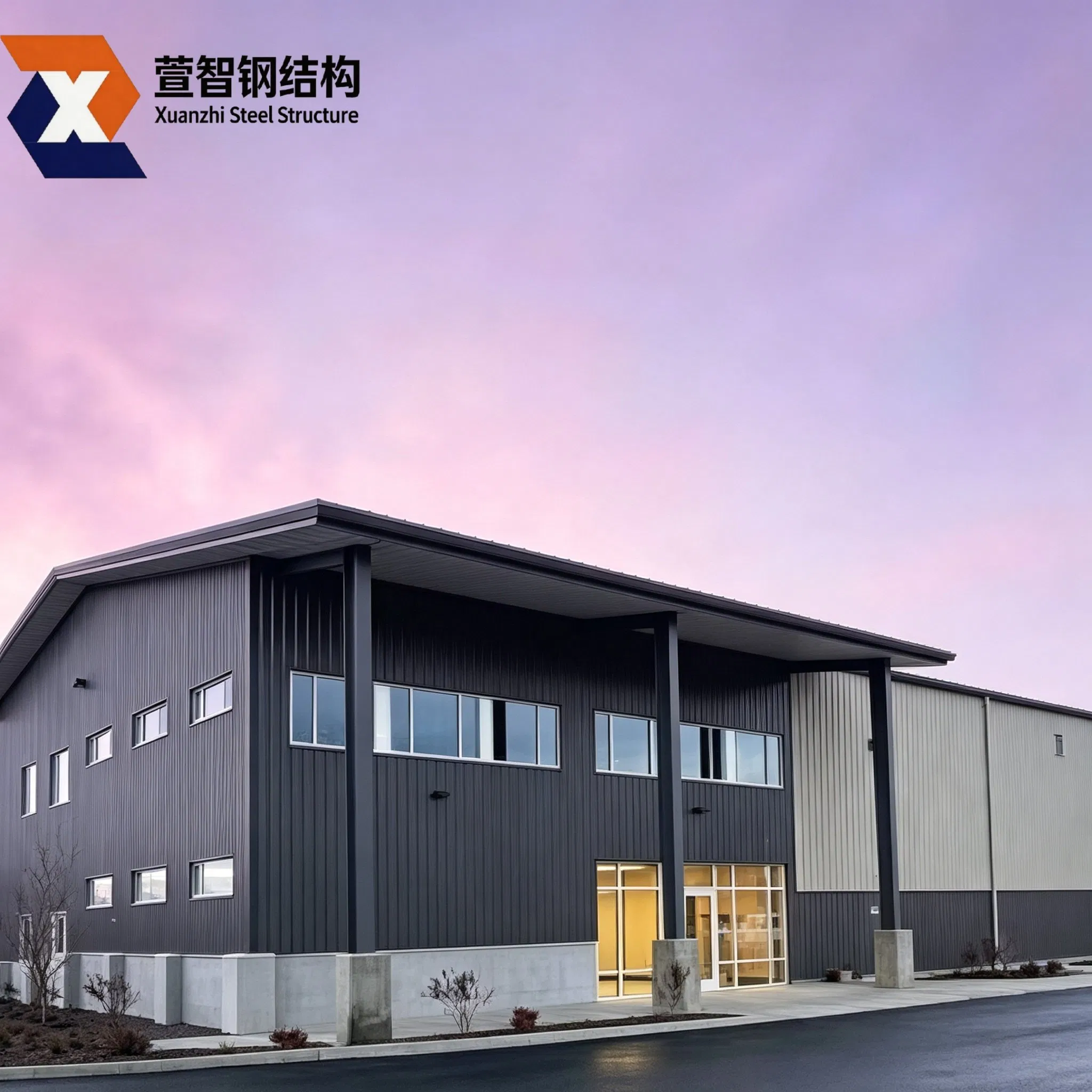

| Product Type | Steel Structure Workshop / Warehouse |
| Main Frame Material | Q235B/Q355b H/I Steel Beams |
| Construction Member | Steel Beam |
| Molding Method | Hot-Rolled Steel |
| Surface Treatment | Hot-DIP Galvanized / Painted |
| Standard | GB / ISO / CE / EN 1090 |
| Service Life | 50+ Years |
| Wind Resistance | 0.3-1.5 kN/M² (Grade 12) |
| Seismic Grade | 7-9 Grade |
| Production Capacity | 50,000 Tons/Year |
| Component | Detailed Specifications |
|---|---|
| Main Structure | Q235B / Q355B H-section carbon steel; Hot-dip galvanized or anti-rust painted. |
| Secondary Structure | C/Z type Purlins (C80~C320); X-type/V-type bracing; Bolted connections. |
| Roof & Wall System | Single color steel sheet or Insulated sandwich panels (PU/EPS/Rock wool). |
| Doors & Windows | Galvanized roller shutter/sliding doors; Aluminum alloy double-glazed windows. |
| Fasteners | Grade 8.8/10.9 High-strength galvanized bolts; Anchor bolts M16~M24. |
| Design Parameters | Wind: 120km/h; Seismic: Grade 8; Life: 50+ Years. |
High-strength hot-rolled H-section steel complying with international standards (GB, ASTM, EN). Maximum resistance to Grade 12+ typhoons.
90%+ prefabrication rate in factory ensures dimensional accuracy within ±2mm. Construction cycle is 50% shorter than traditional buildings.

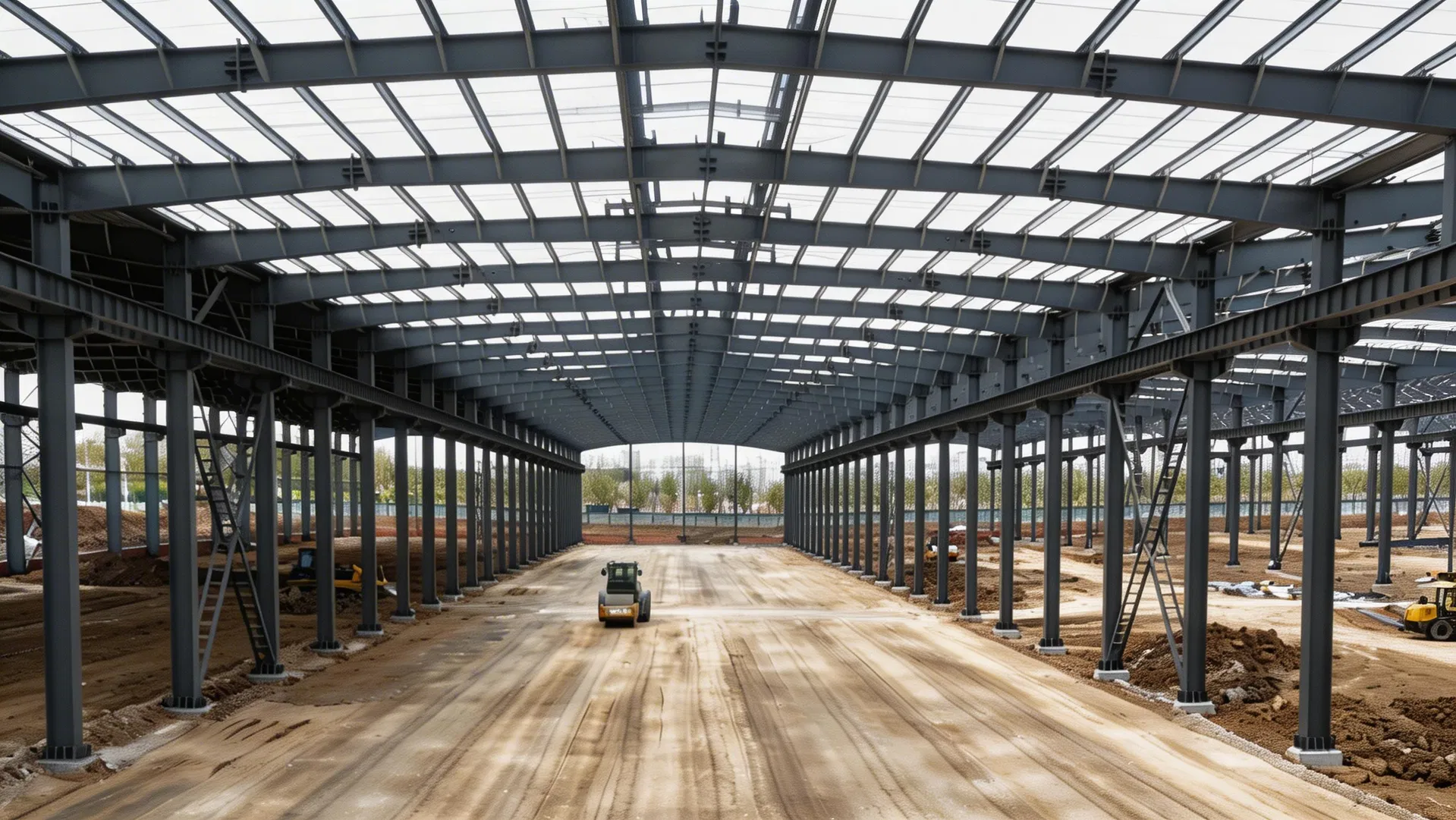

Single spans up to 36m without middle columns. 20% higher space utilization compared to traditional concrete structures.
100% recyclable steel materials. High-performance insulation reduces energy consumption for cooling and heating by over 30%.
