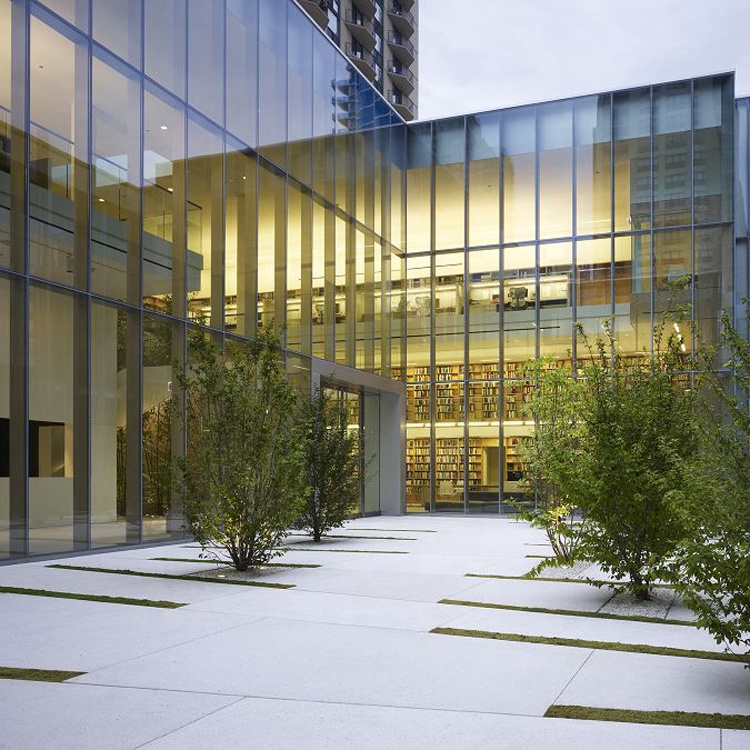

The weight of a glass curtain wall is generally 60kg/m², which is lighter than the curtain wall made of concrete, ceramic tile, and stone slab. The glass curtain wall can be used to replace traditional concrete, brick, and other materials, which can reduce the external wall weight of the building by about 5 times. On the one hand, the height of the building can be raised under the same foundation condition; on the other hand, it can reduce the transportation quantity and transportation cost of materials in the building process, solving key engineering costs.
The glass curtain wall is lighter than concrete and brick. At the same time, it makes the performance of the building's peripheral protection system very superior for resisting earthquakes because of the suspension structure, floating node, and better adaptability of interlaminar displacement. Curtain walls can significantly improve the performance of safety and disaster prevention of buildings.

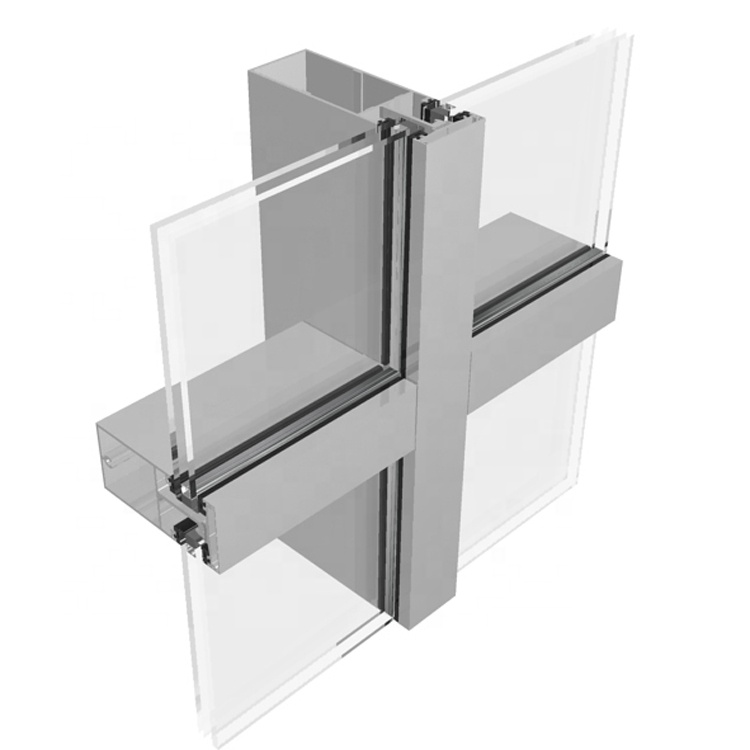

| Product name | Aluminum exterior glass curtain wall |
| Aluminum profile |
1. 6063-T5/T6 grade of thermal break aluminum profile 2. 6063-T5/T6 grade of non-thermal break aluminum profile |
| Glass Type |

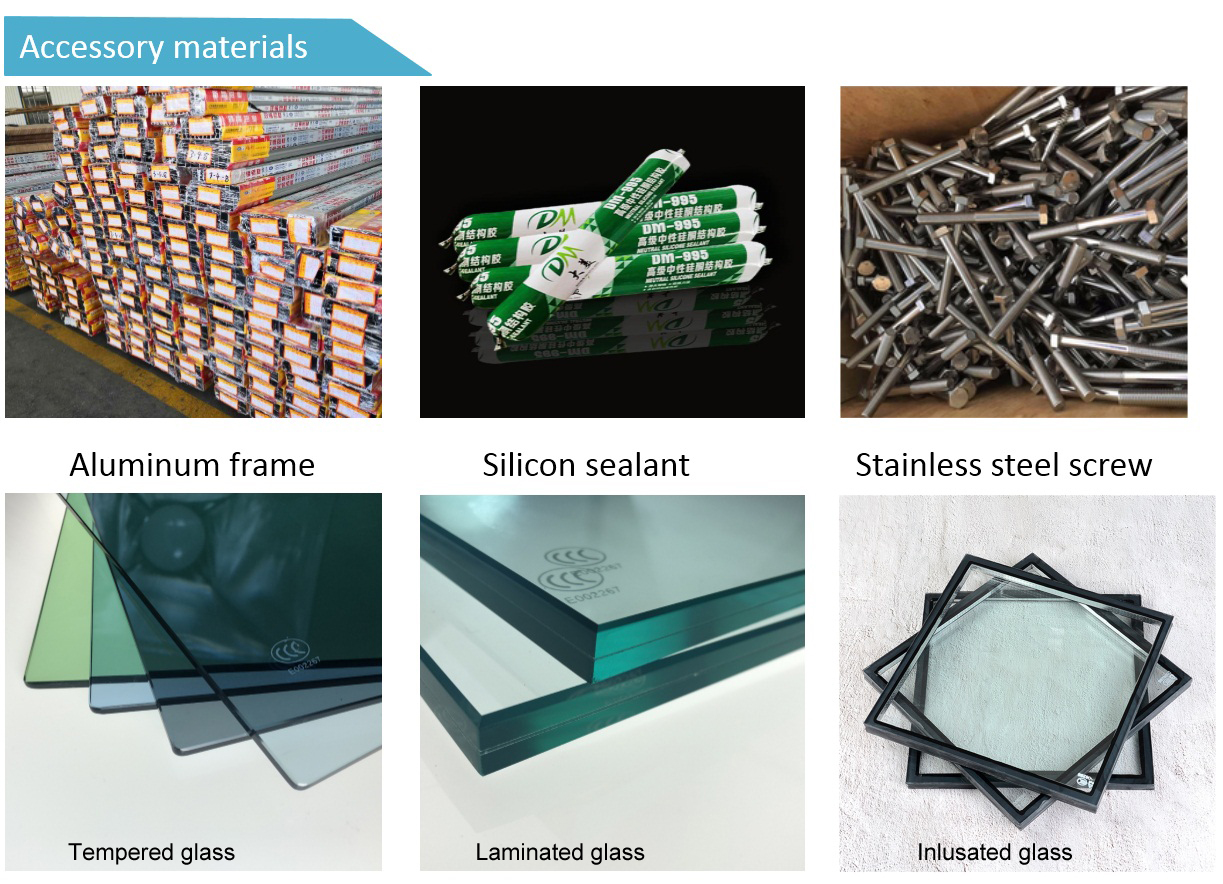

1. Tempered Glass: 5mm-12mm tempered glass with clear or tinted options 2. Double glass: 5mm+6A/9A/12A+5MM, 6MM+6A/9A/12A+6MM etc. 3. Laminated glass: 5mm+0.38/0.76/1.14pvb+5mm, 6mm+0.38/0.76/1.14pvb+6mm etc. 4. Elements: low-e, tinted, reflective & obscure/frosted to meet different U value and SHGC |
| Glass Color | Clear, white, bronze, blue, gray, green, dark green, F-green, sapphire blue, ocean blue, bronze |

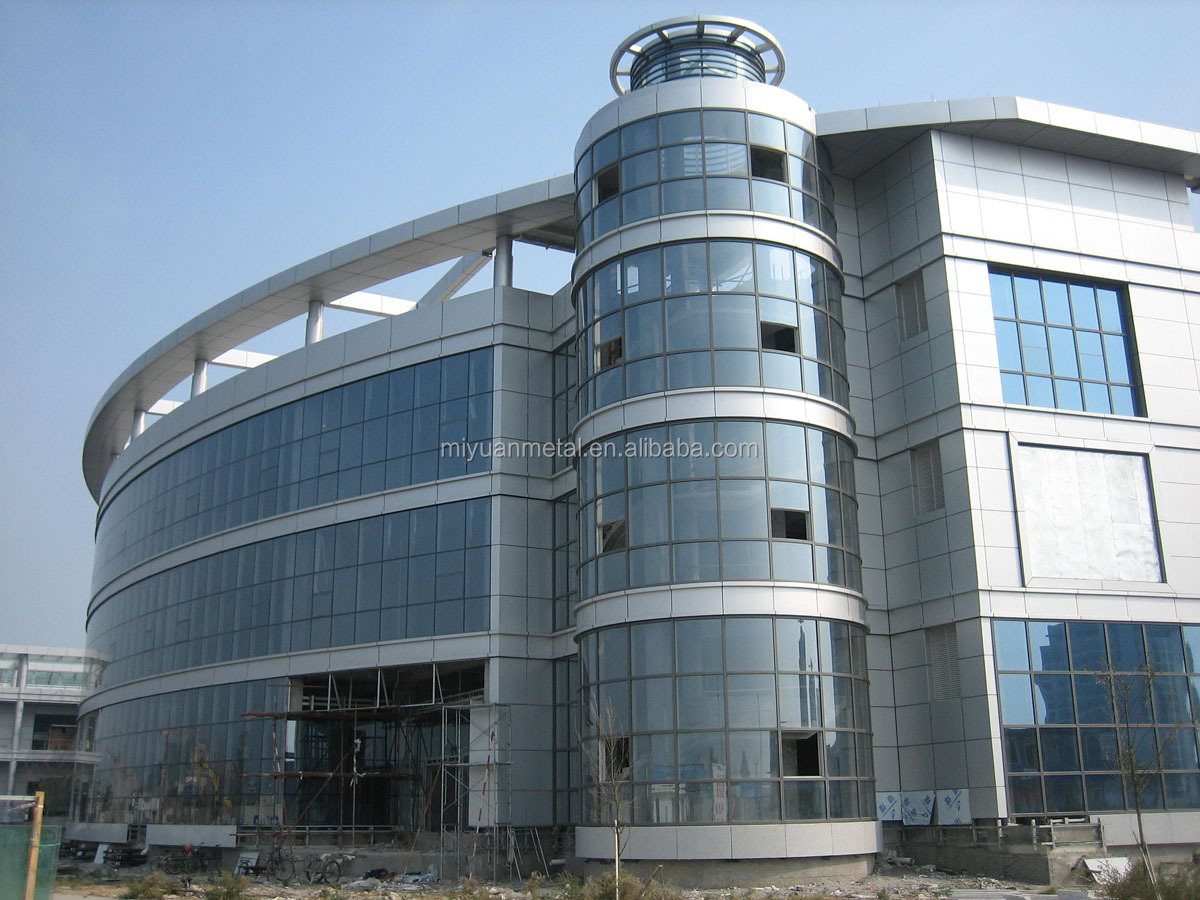

| Application | Office buildings, hospitals, hotels, houses and buildings with heating or cooling requirements. |
| Accessories | Glass Silicone, Glazing Rubber, Stainless steel accessories. |
Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator. Unlike continuous windows, which are smaller units and can rely to a high degree on sill flashings to capture frame corner leakage, curtain walls cover large expanses of wall without sill flashings at each glazed opening. Our specially patented curtain wall system achieves water penetration resistance up to 1000 Pa.

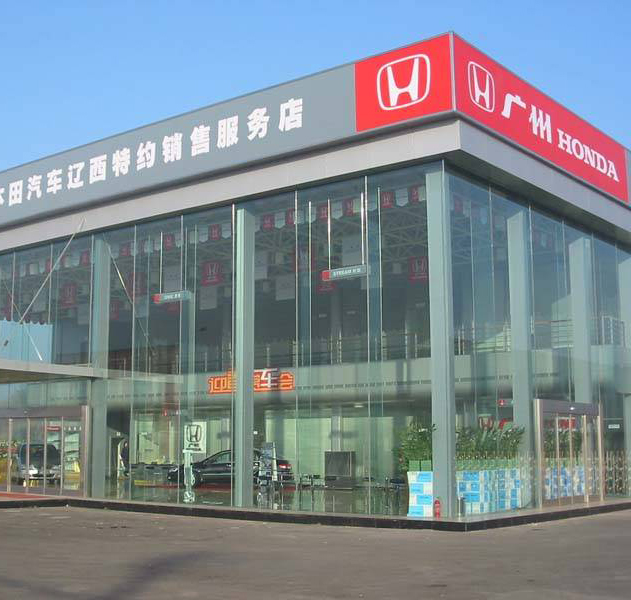

Our company has a strong design team which can provide thorough calculations and precise fabrication. We offer a wide variety of aesthetic variations, allowing architects to use any combination of finishes, infills, external feature caps, and glazing specifications.

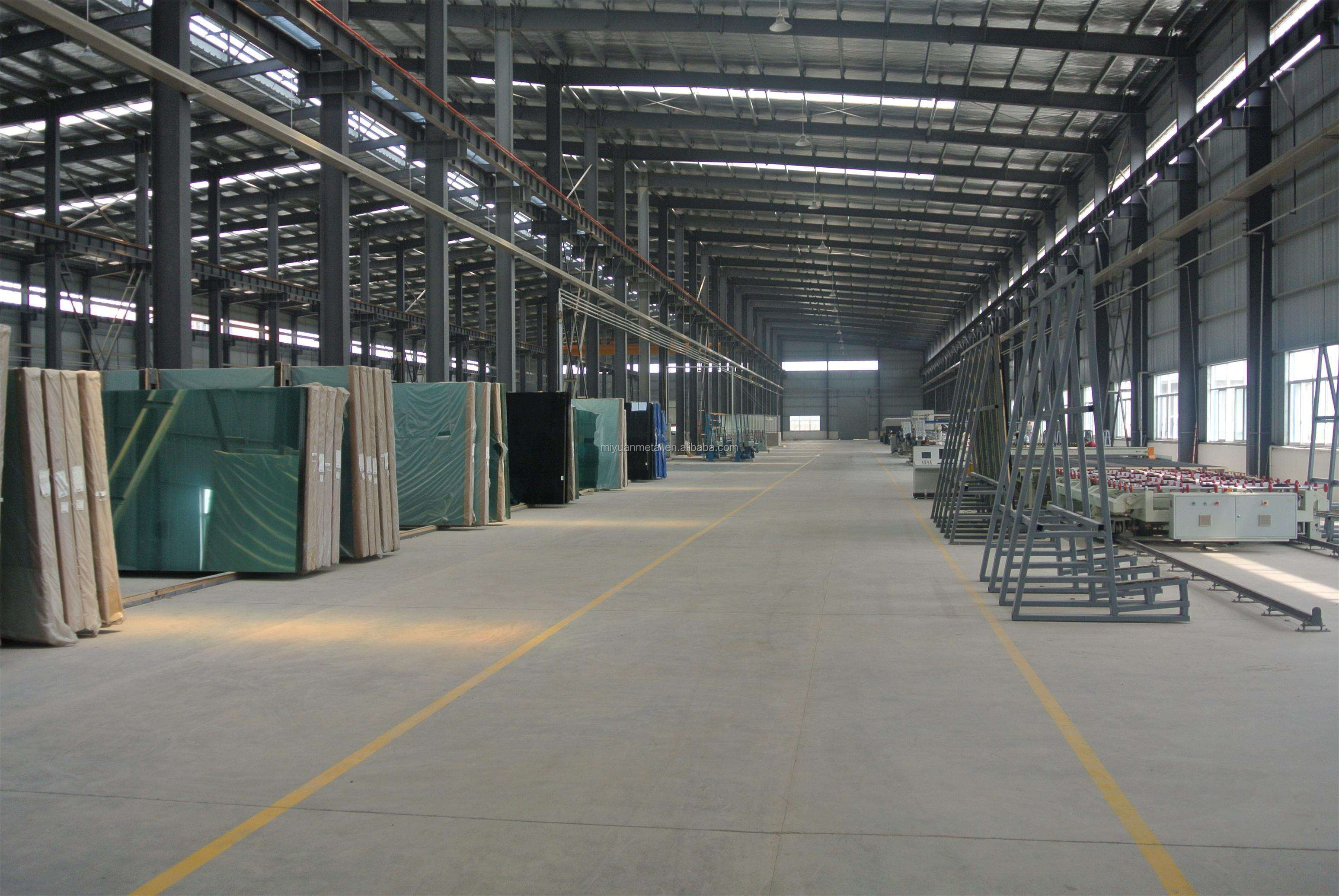

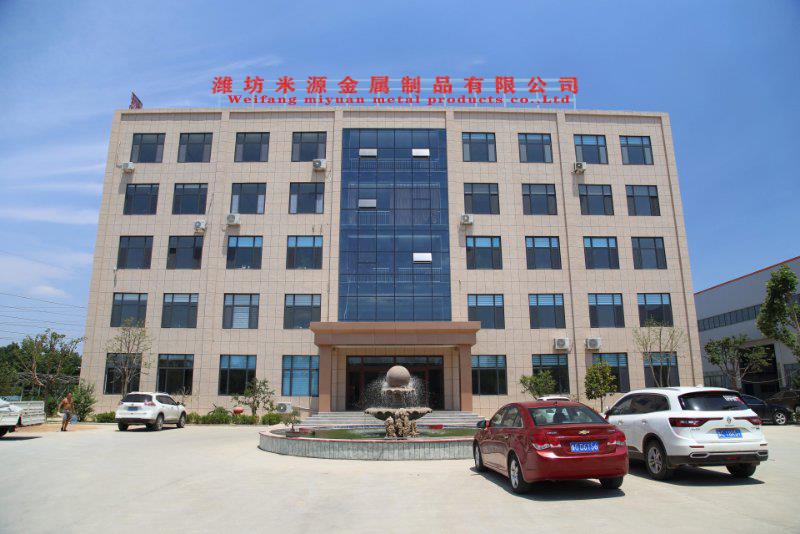

Our company integrates design and development, production, processing, construction, and sales into a large, professional door, window, and curtain wall manufacturing enterprise. Our core products include architectural drawings and designs, aluminum alloy doors and windows, structural curtain walls, metal products, aluminum alloy products, stair railings, and guardrails.

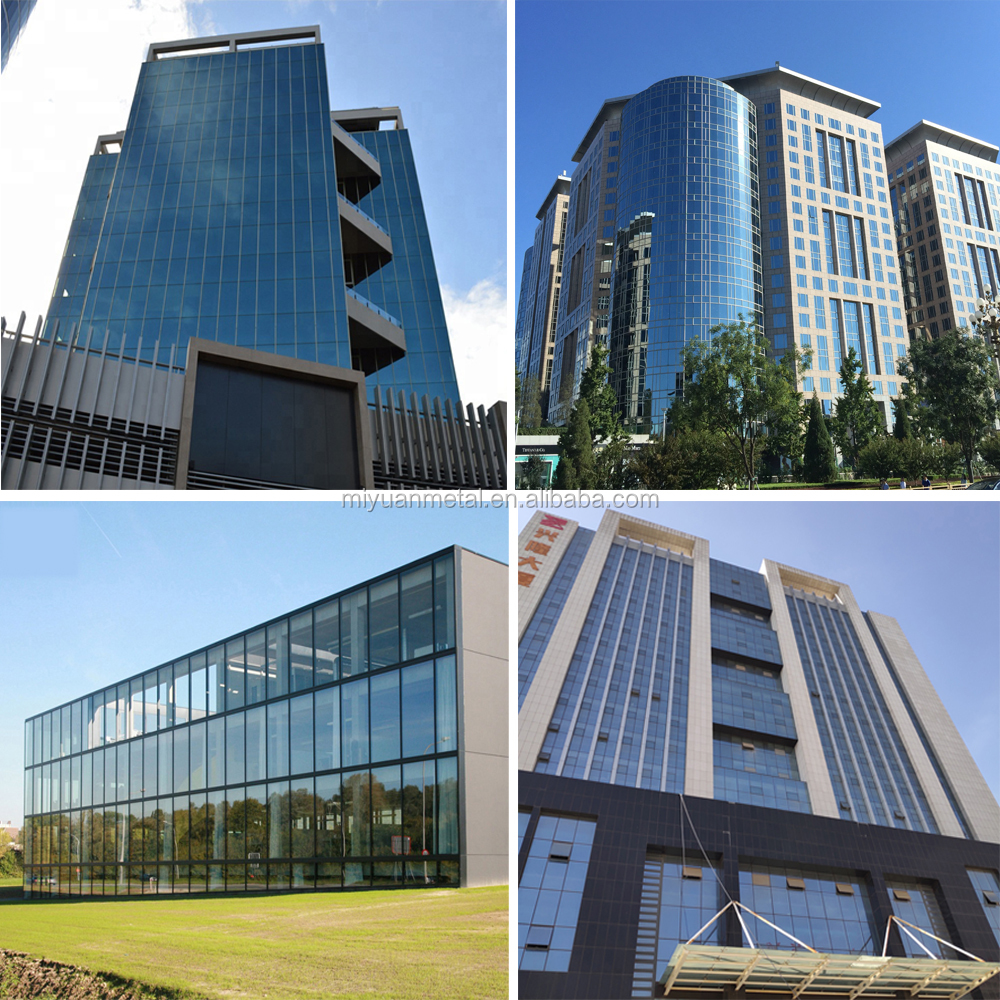

Featuring novel designs and durable build quality, our products are widely utilized in hotels, banks, airports, hospitals, factories, and other major public buildings. We successfully export to the United States, England, Saudi Arabia, and other countries across Southeast Asia.
