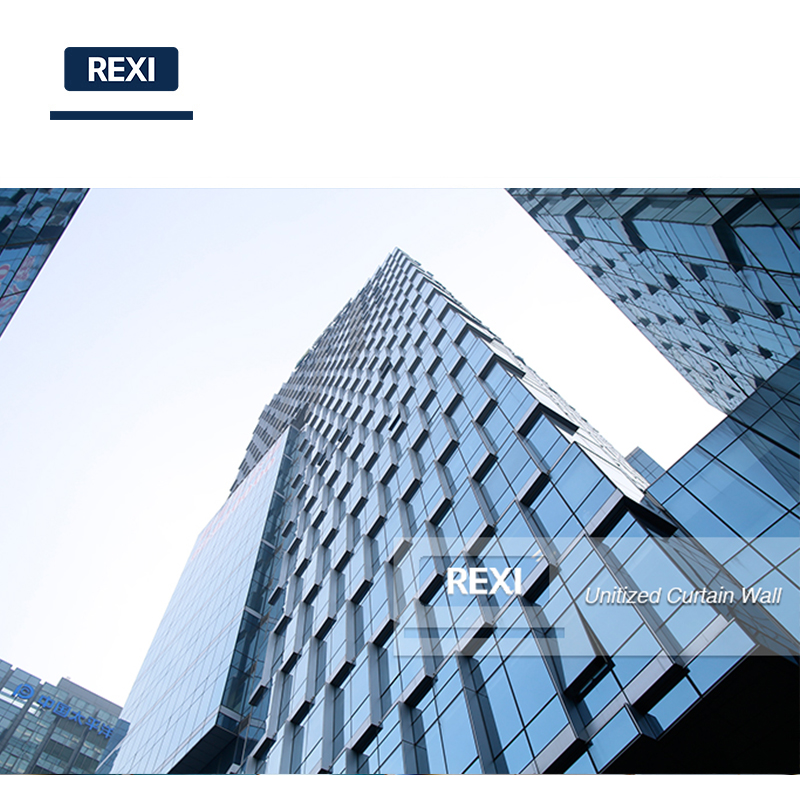

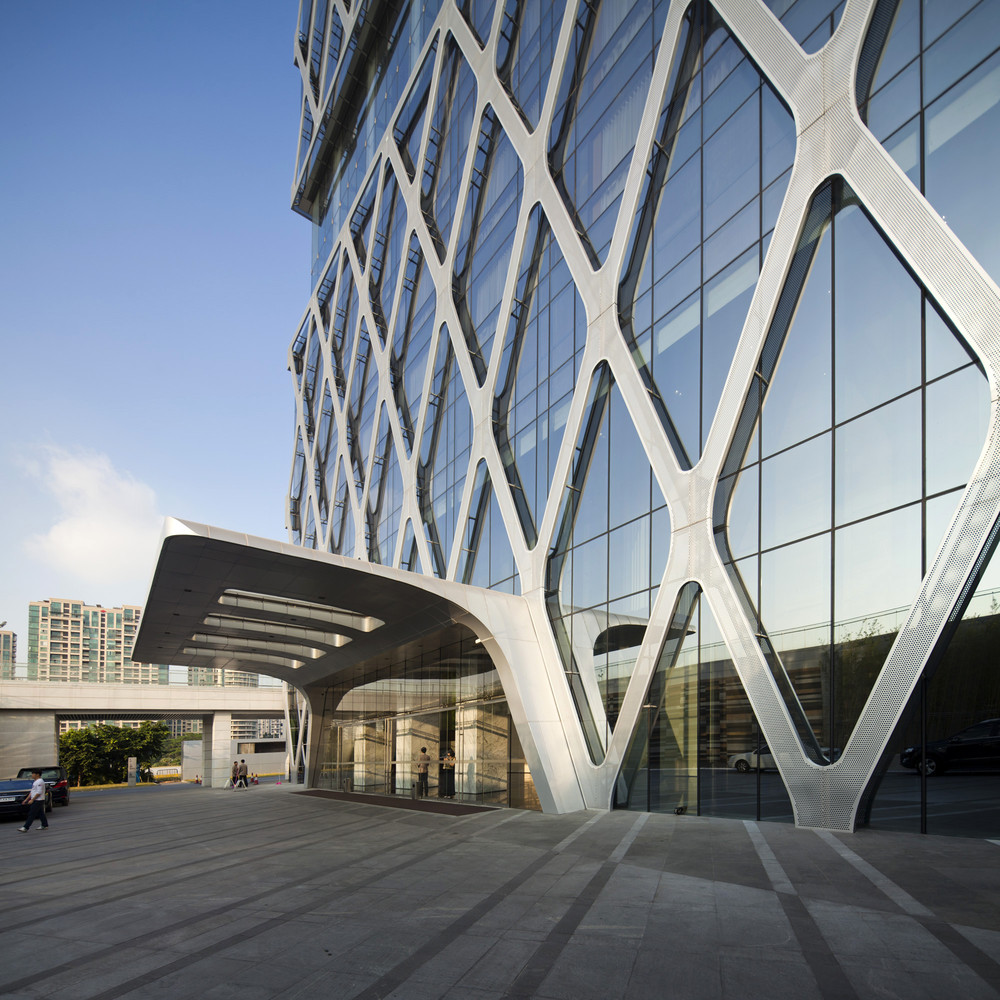

China Bespoke Australia UAE Dubai USA New Zealand Curtain Wall Façade Customized Unitized Aluminium Glass System

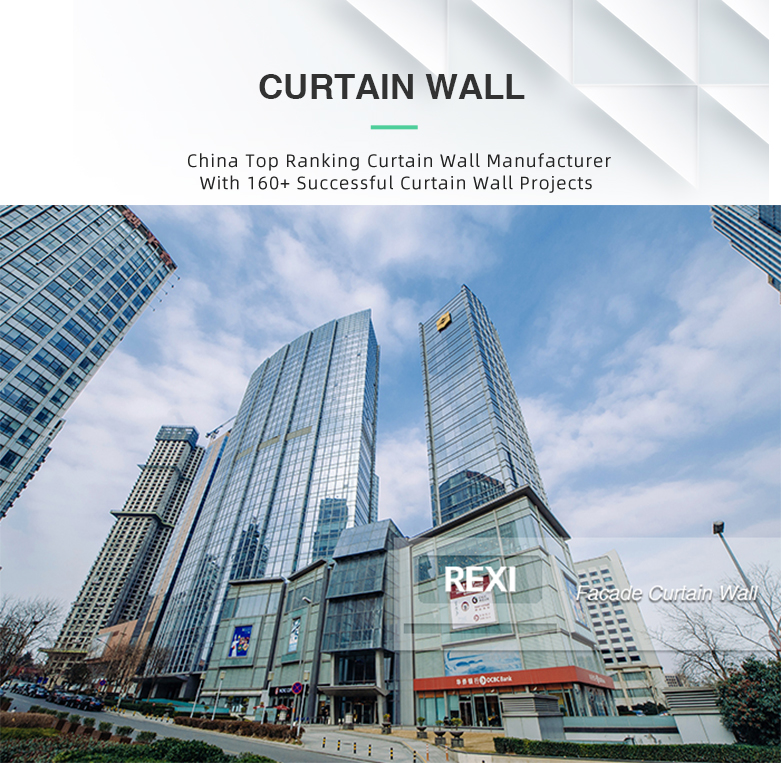

Aluminium glass curtain walls are typically designed with extruded aluminum framing members. The aluminum frame is typically infilled with glass, which provides an architecturally pleasing building, as well as benefits such as daylighting.
With a long and reputable history beginning as a curtain wall manufacturer in 2005, operations now span across China and different countries around the world. A high standard has been set in high-quality, high-performance curtain wall design. With over decades of experience in the facade industry, there is a wealth of knowledge and resources to develop class-leading curtain wall systems. All of the curtain wall systems used in these designs are exclusive. New systems are continually developed to meet the ever-changing and challenging specifications and green star requirements. Together with virtual trials and testing, engineering, and real-world testing, a facade system can be developed to meet any building's requirements.
Product Features

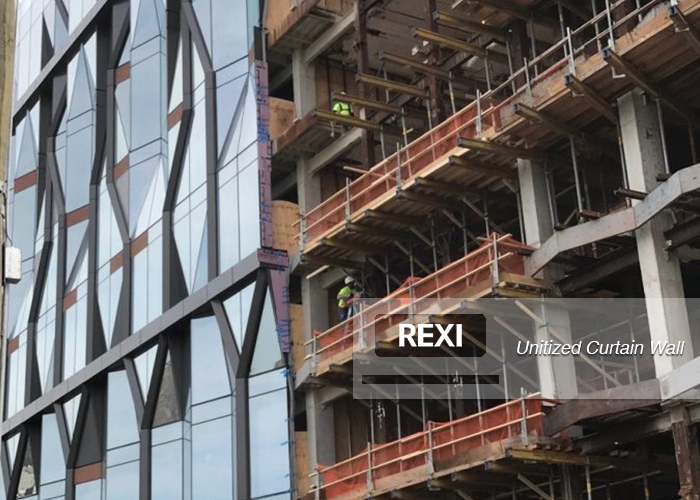

Excellent Thermal Efficient
Overall curtain wall thermal performance is a function of the glazing infill panel, the frame, construction behind opaque (spandrel and column cover) areas, and the perimeter details. Specially designed curtain wall systems are available. The system thermal insulation U-value is low to 0.8 W/m²·K.

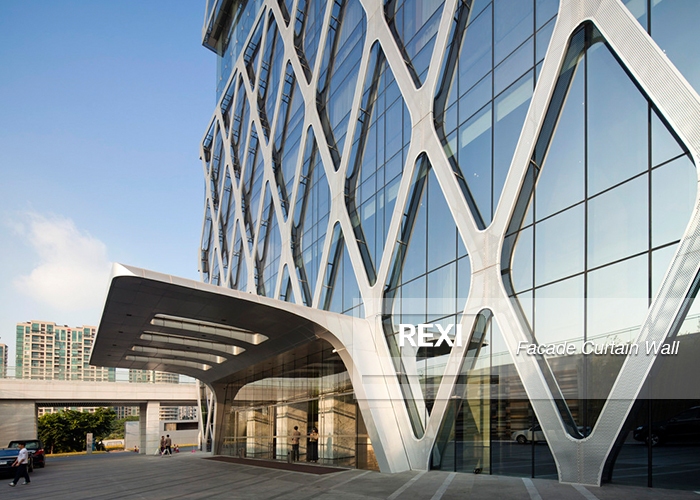

Strong Moisture Protection
Curtain walls have the primary purpose of keeping air and water out of the building, essentially acting as both a buffer and an insulator. Unlike discontinuous windows, which are smaller units and can rely to a high degree on sill flashings to capture frame corner leakage, curtain walls cover large expanses of wall without sill flashings at each glazed opening. The specially patented curtain wall system features water penetration resistance up to 1000 Pa.

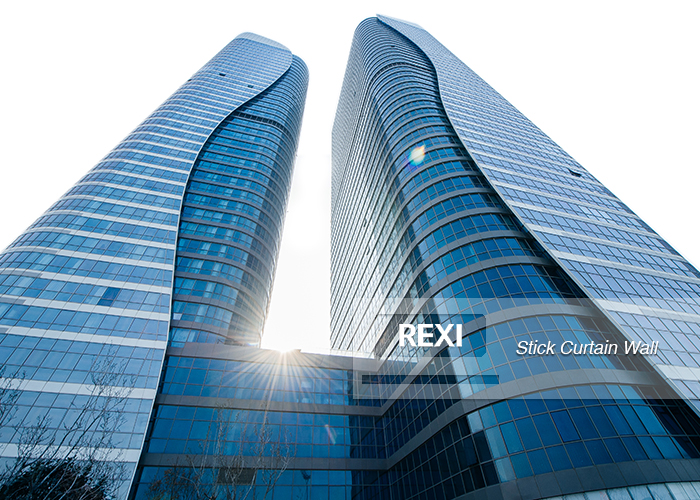

Unique Visual Appearance
A strong design team makes thorough calculations and precise fabrication, offering a wide variety of aesthetic variations allowing architects to use any combination of finishes, infills, external feature caps, and glazing specifications.

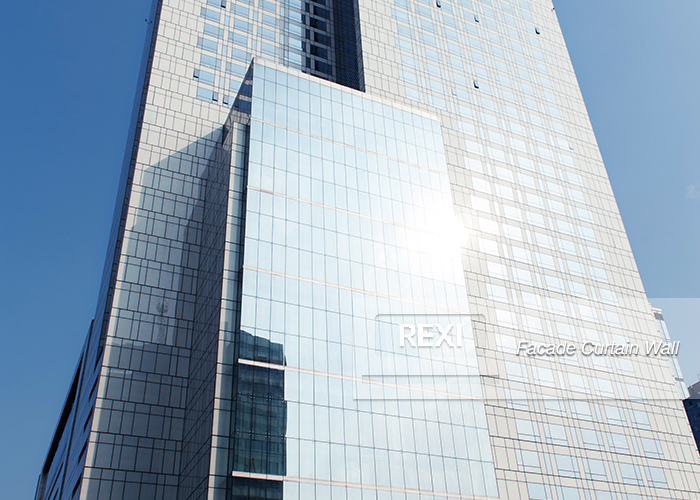

System Achievements
- Energy Efficiency U-value low to 0.8 W/m²·K
- Water Penetration Resistance high to 1000 Pa
- Durable powder coating warranty to 20 years
- Glazing unit weight max to 1,000 kg
- Glazing thickness from 4mm to 60 mm
- Sound Resistance Rw to 68 dB
Quick Details
| Types |
Unitized curtain wall, Stick curtain wall, Spider curtain wall |
| Materials |
Aluminium alloy and glass/ Aluminum panel/ ACP/ Stone |
| Hardware |
Chinese top brand/ Germany brand |
| Glass Types |
Tempered, Laminated, Double Glazed, Ceramic Fritted |
| Surface Treatments |
PVDF, Powder Coated, Anodized, Electrophoresis, Wooden Grain etc. |
| Aluminium Alloy |
6063-T5/T6, 6061-T5 profile |
| Advantages |
Professional Design Team/ 21,000 square meters large workshop/ International Standards |
| Standards |
In compliance with US BS AU EU standards |
| Application |
Residential Houses & apartments, Commercial Buildings, Skyscrapers etc. |
| Supply Ability |
20,000 square meters per Month |
| Packing |
Plastic Film, EPE Cloth, Wood Case, Steel stillage |
| Loading Port |
QingDao |
Production Profile
We are a professional leader in the design, fabrication, and installation of windows, doors, and curtain walls. There is a full commitment from concept through to completion, delivering projects on time and within budget. Designs are produced using tried and proven details developed by experienced engineers. Work is done collaboratively to find the right system to meet design aesthetics and performance requirements.

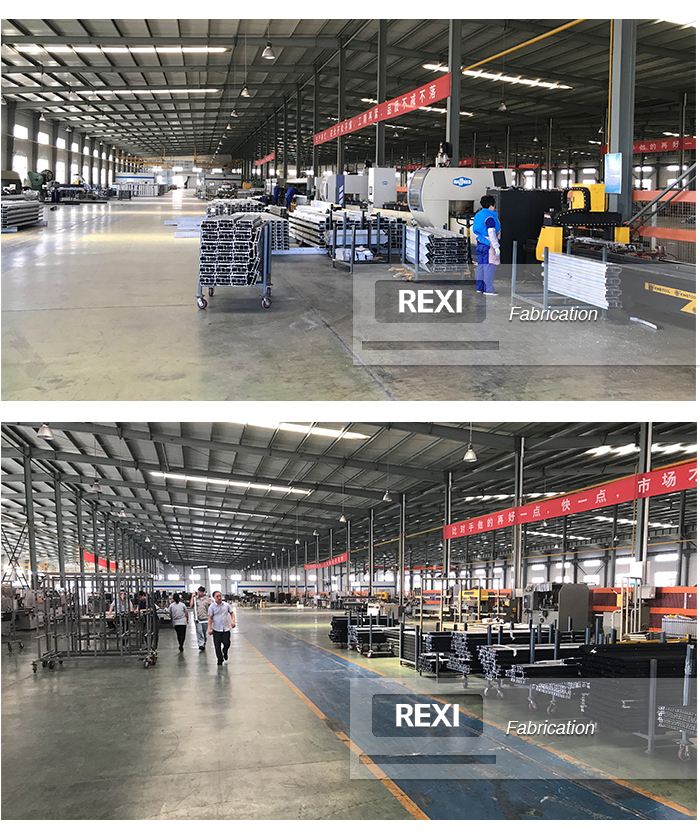

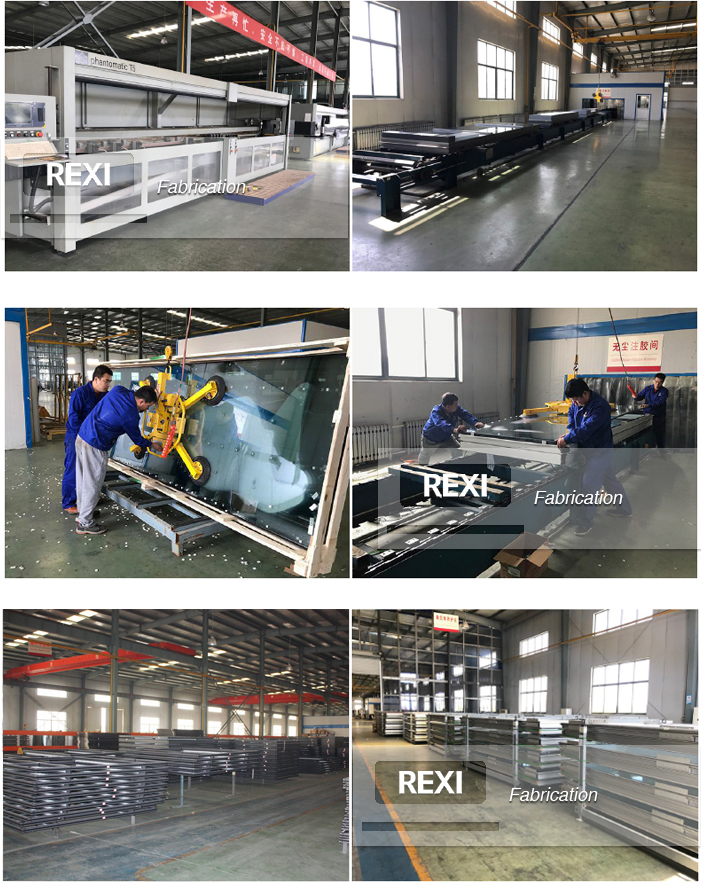

Fabrication Capacities
Proudly featuring one of the largest fabrication workshops in North China, covering 21,000 square meters with over 100 experienced workers. There is ample capacity for large-scale projects.
| Products Types |
Lines Qty |
Annual Production Capacity |

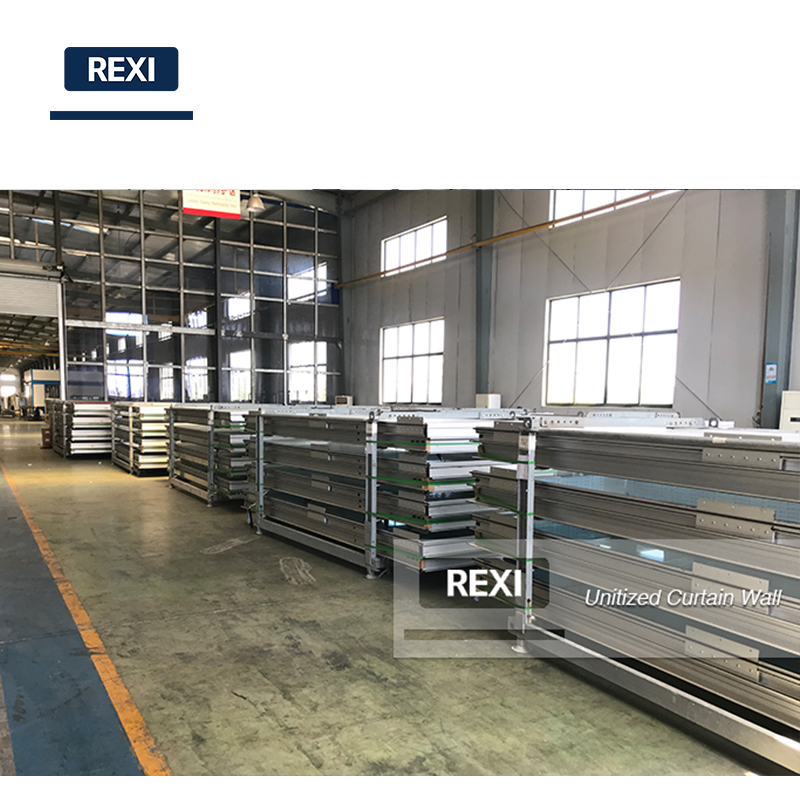

| Unitized Curtain Wall |
4 |
200,000 sqm |
| Stick Curtain Wall |
4 |
300,000 sqm |
| Aluminium Windows & Doors |
6 |
300,000 sqm |
Quality Control

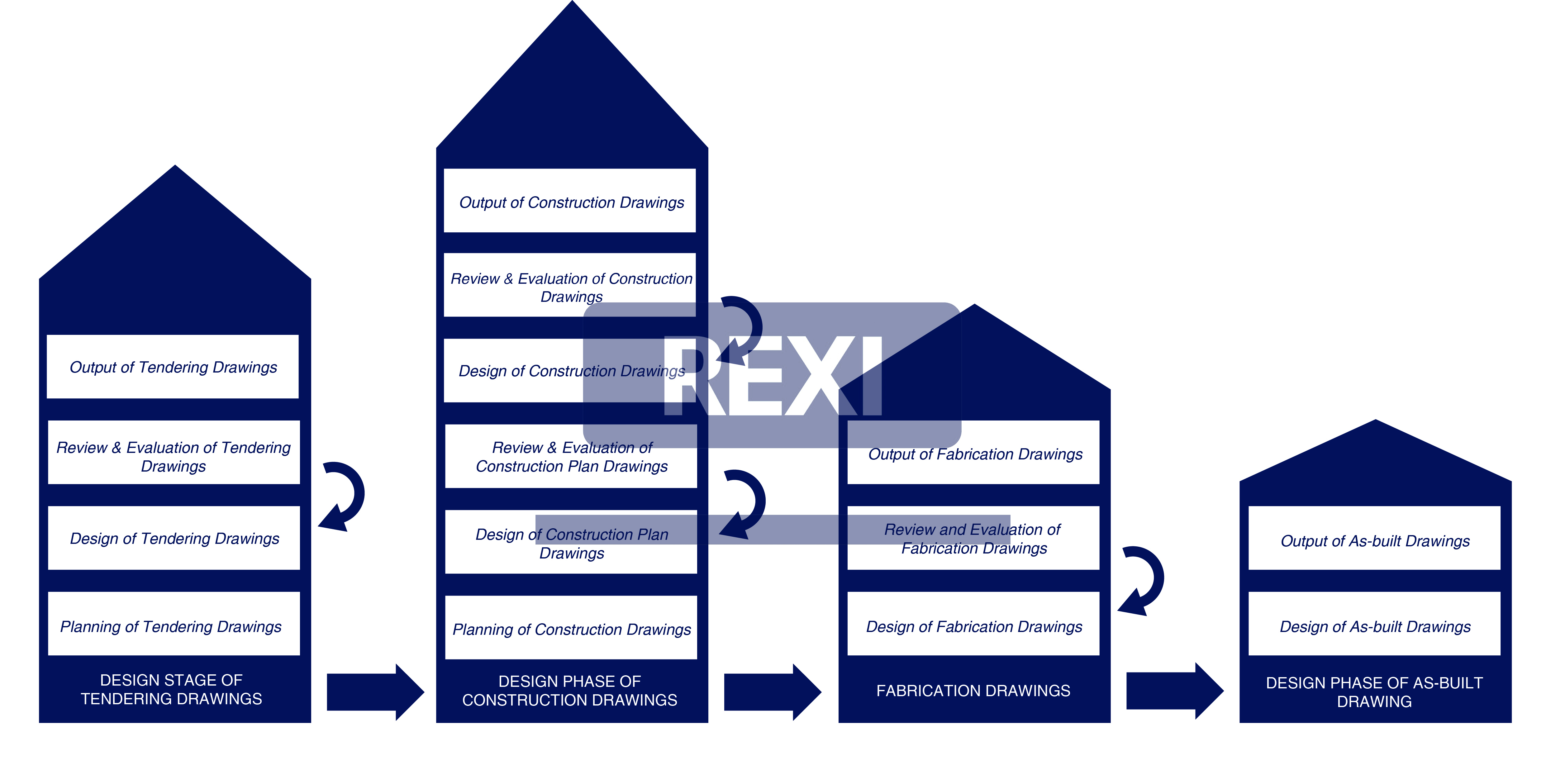

Design Quality Control Processes

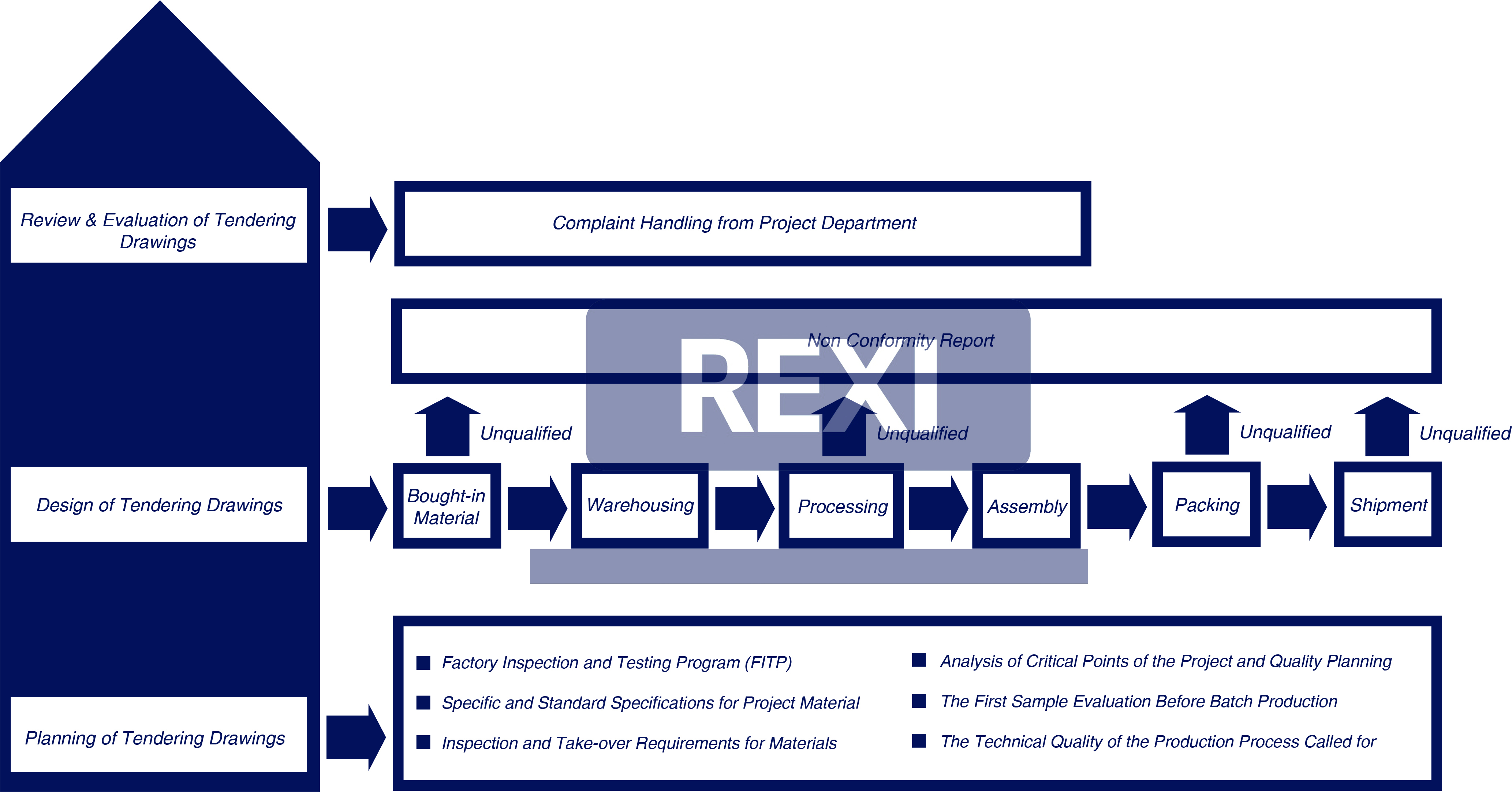

QC of Specific Operational Procedures

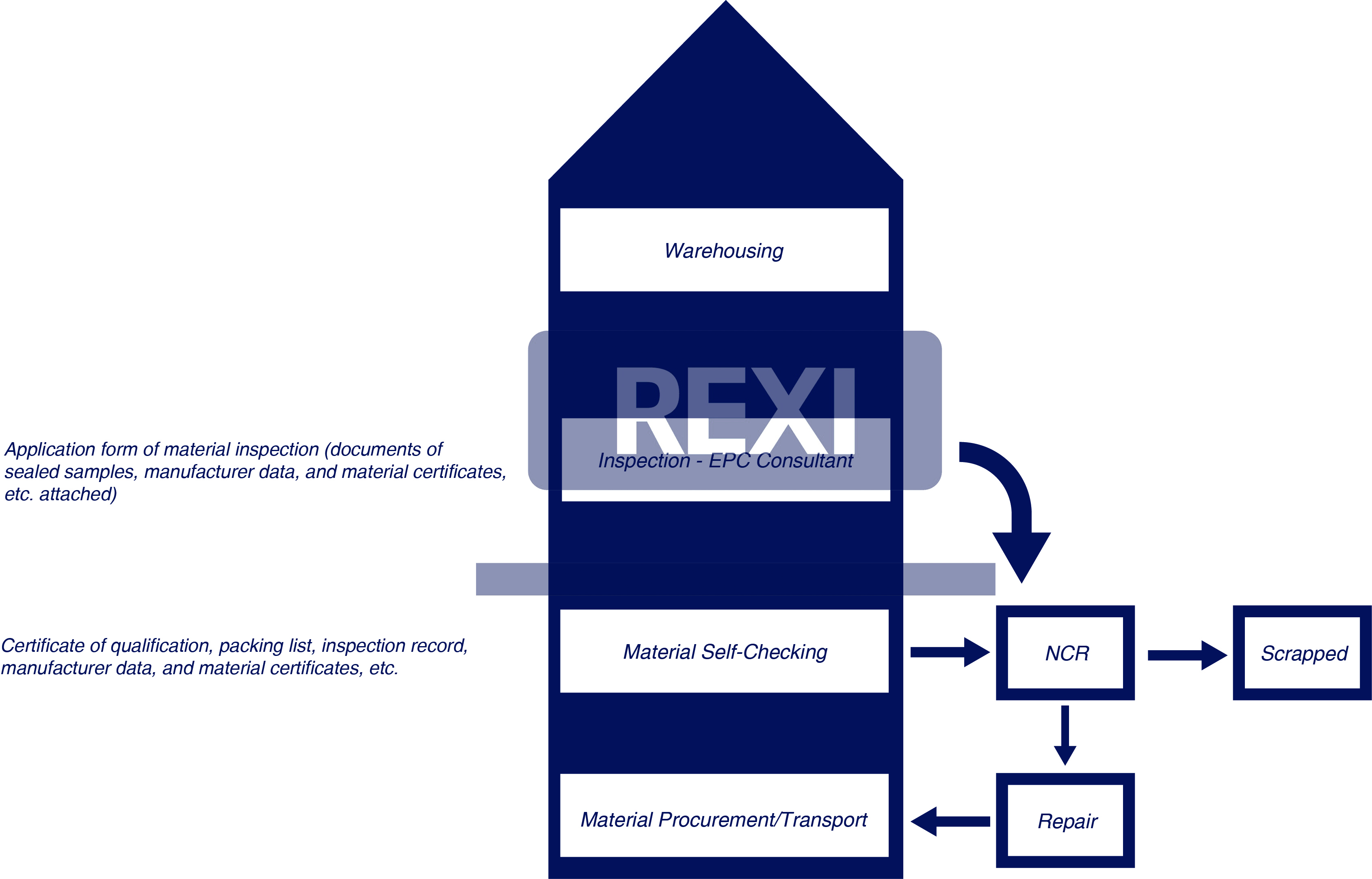

Material Quality Control Process at Site

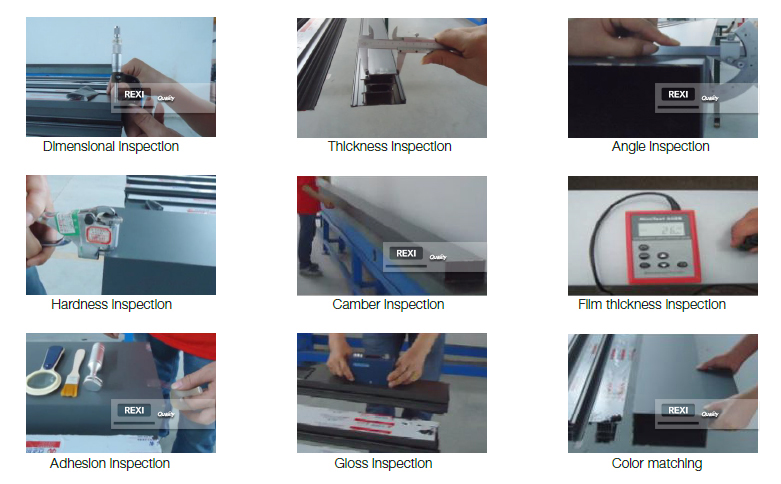

Aluminum Profiles Incoming Inspection

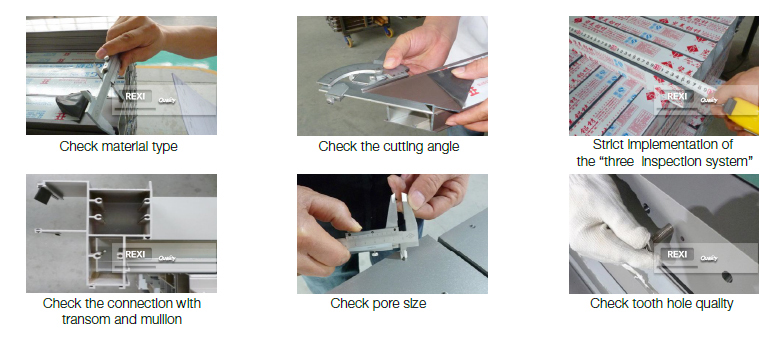

Machining Quality Control

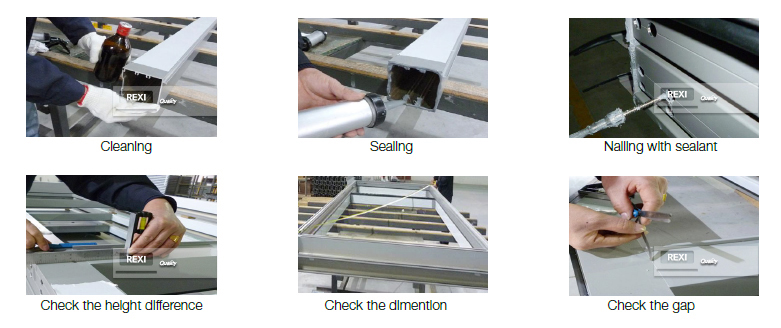

Assembly Quality Control

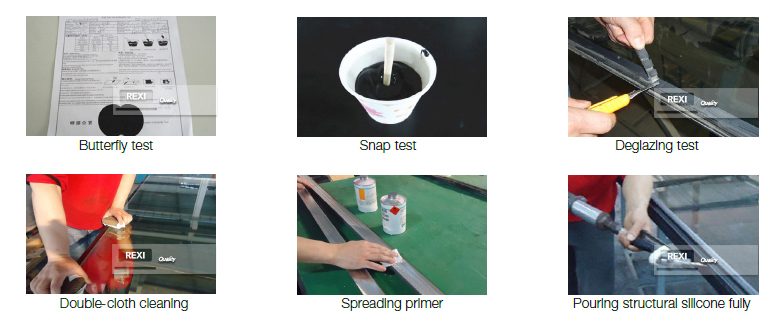

Structural Silicone Quality Control

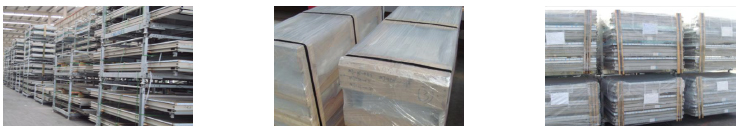

Packing & Shipment

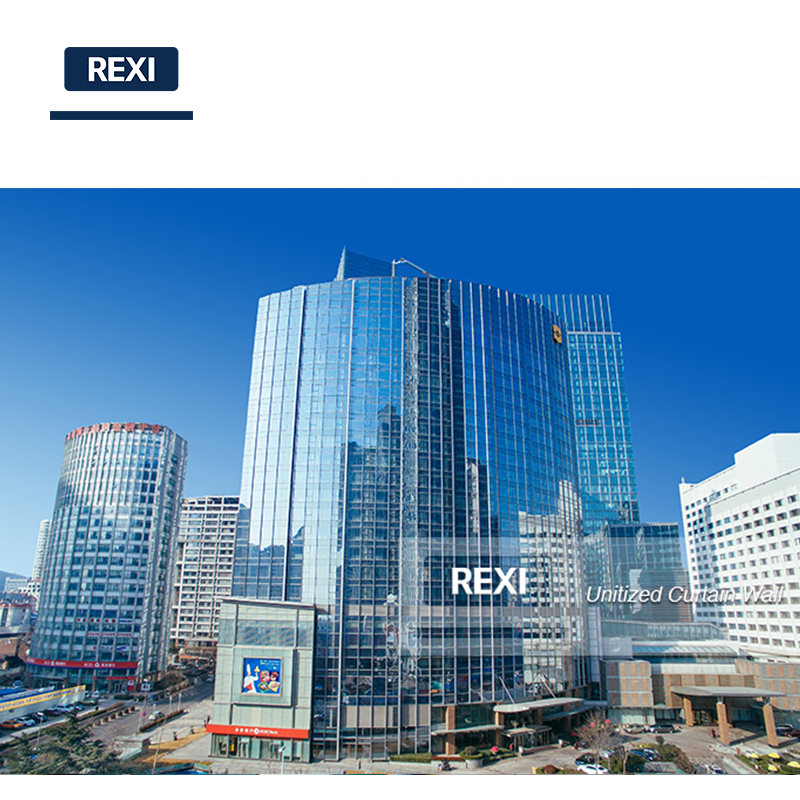

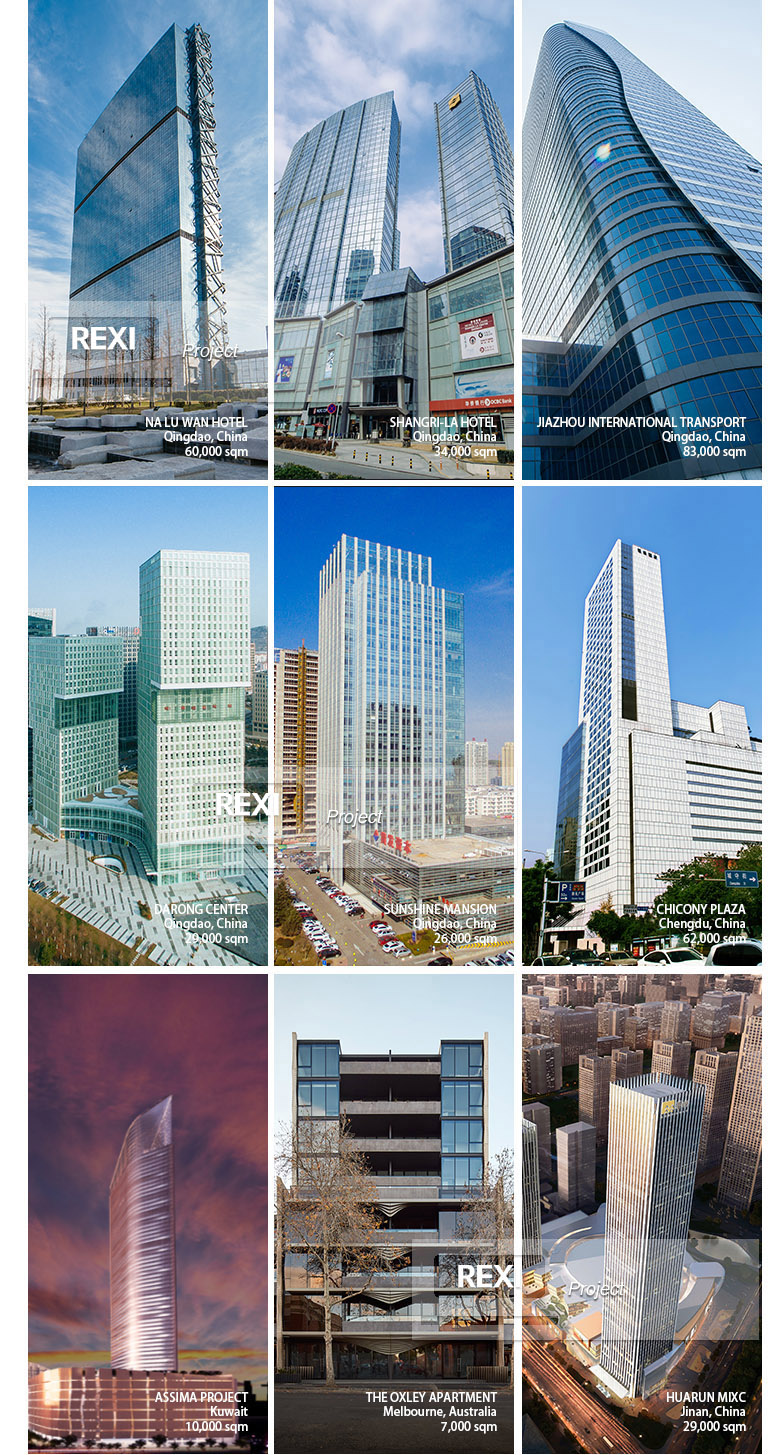

Projects
Frequently Asked Questions
Q
What is the difference between unitized and stick curtain wall systems?

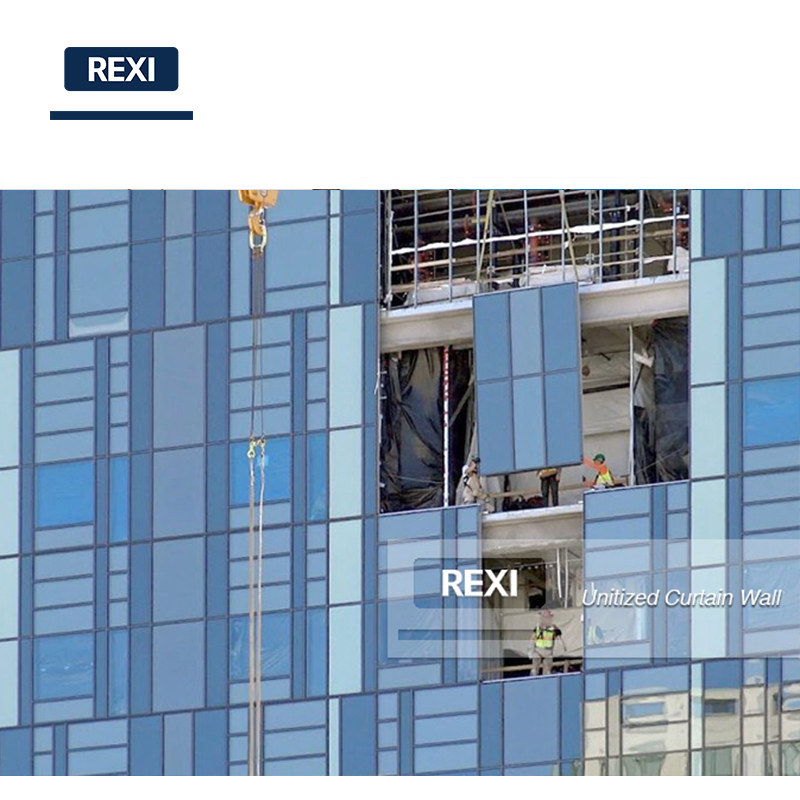

Unitized curtain walls consist of large glass units that are assembled and glazed within a factory environment before being shipped to the construction site for rapid installation. Stick curtain walls are sent as long aluminum framing members (sticks) and glass panels, which are then assembled and installed piece-by-piece directly on site.
Q
What standard specifications do these curtain walls comply with?
Our curtain wall systems are designed, fabricated, and tested in compliance with major international standards, including US, BS, AU, and EU building and safety regulations.
Q
How thermal efficient are the aluminum glass curtain wall systems?
The system thermal insulation U-value can go as low as 0.8 W/m²·K, offering high energy efficiency by minimizing heat transfer and reducing building energy consumption.
Q
What are the options for glass thickness and maximum glazing weight?
The systems support a glazing thickness range from 4mm up to 60mm, and can accommodate a maximum glazing unit weight of up to 1,000 kg per panel.
Q
How are the products packaged to prevent damage during sea shipment?
All components are securely packed using protective plastic film, EPE cloth, sturdy wood cases, and steel stillages to prevent shifting, moisture damage, and scratches during transit.
