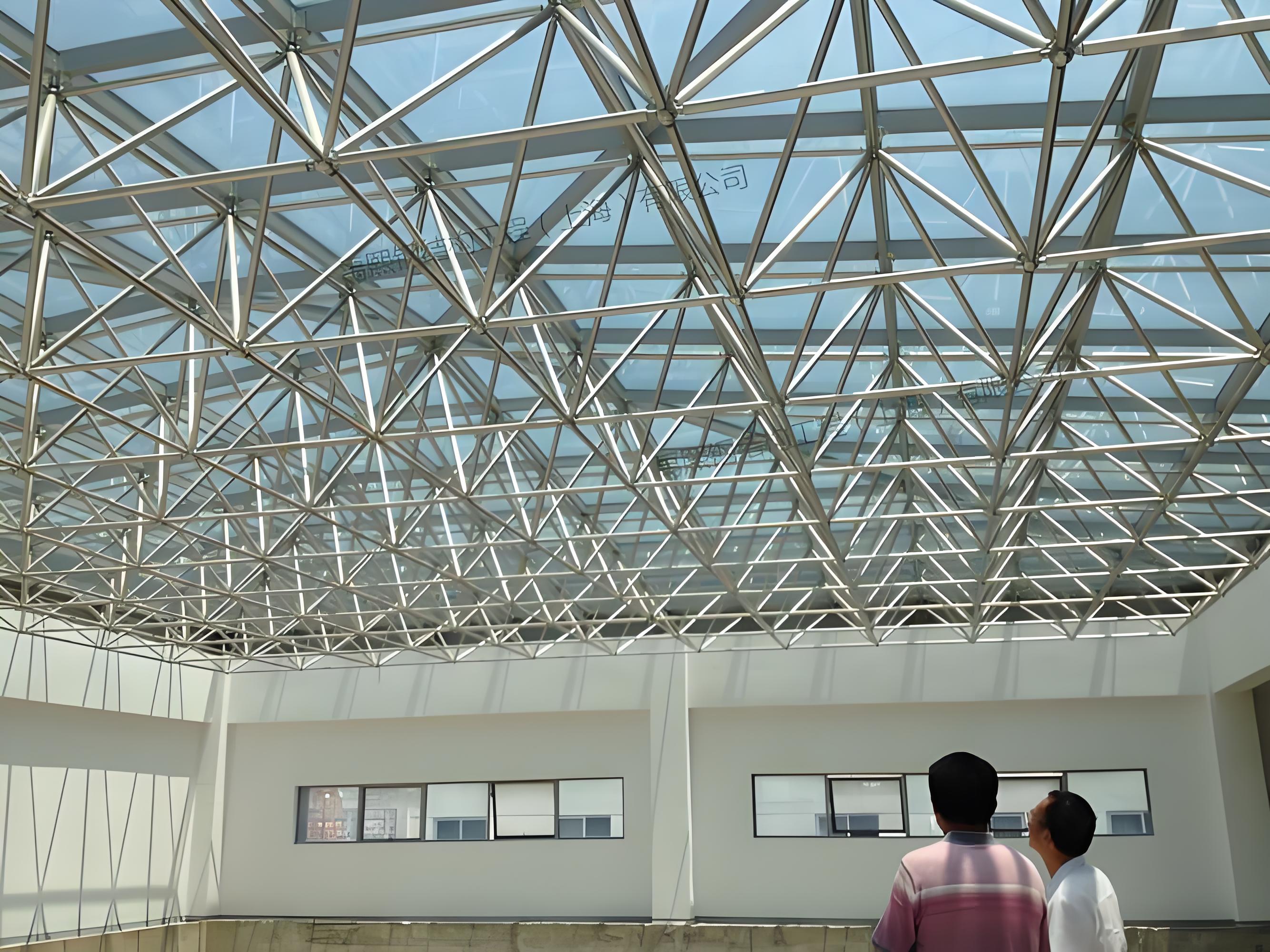

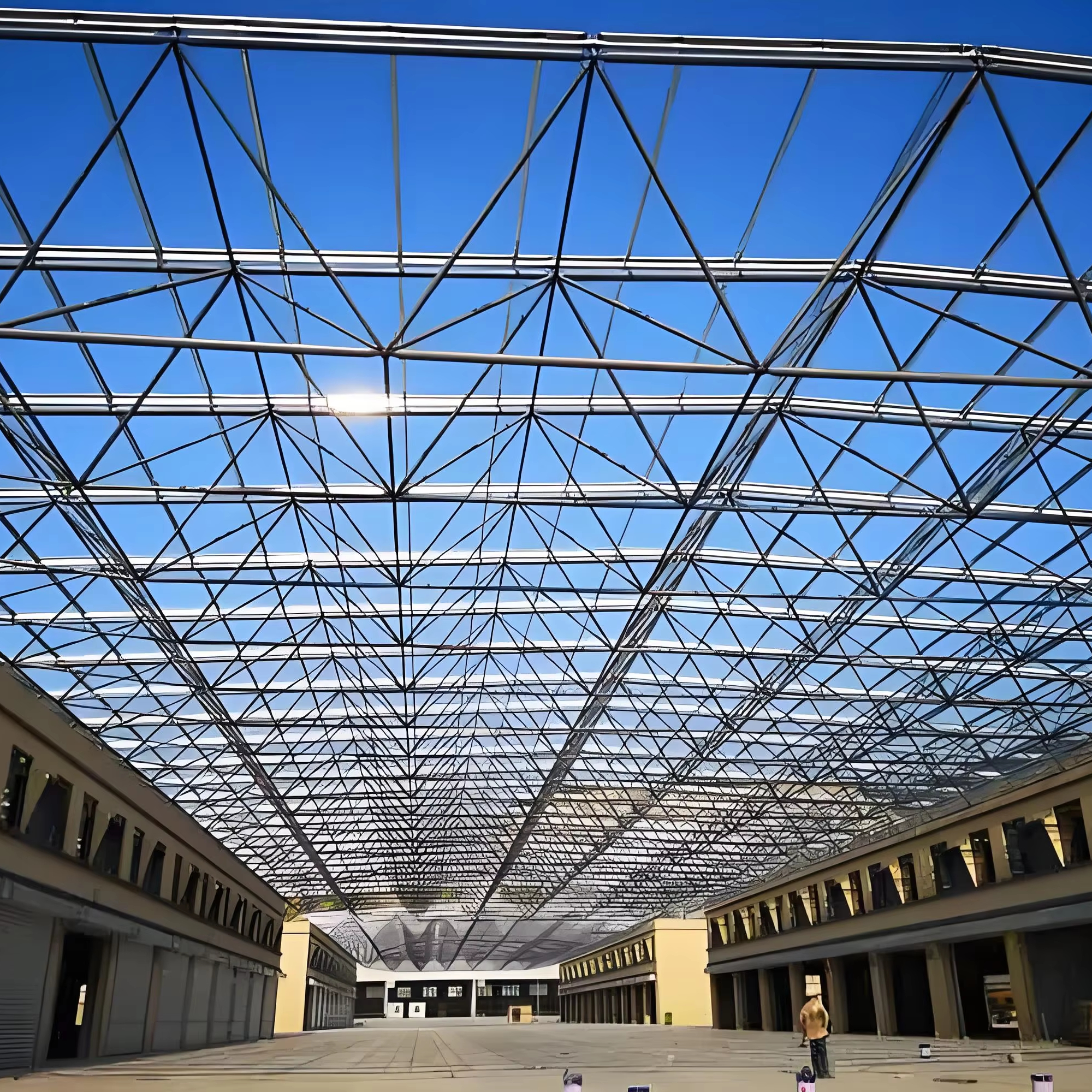

Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
1 / 5
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design
Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design

Modern Industrial Space Frame Workshop Space Frame Building Prefabricated Warehouse Factory Construction Design

Send Inquiry

Product Description

Products Description

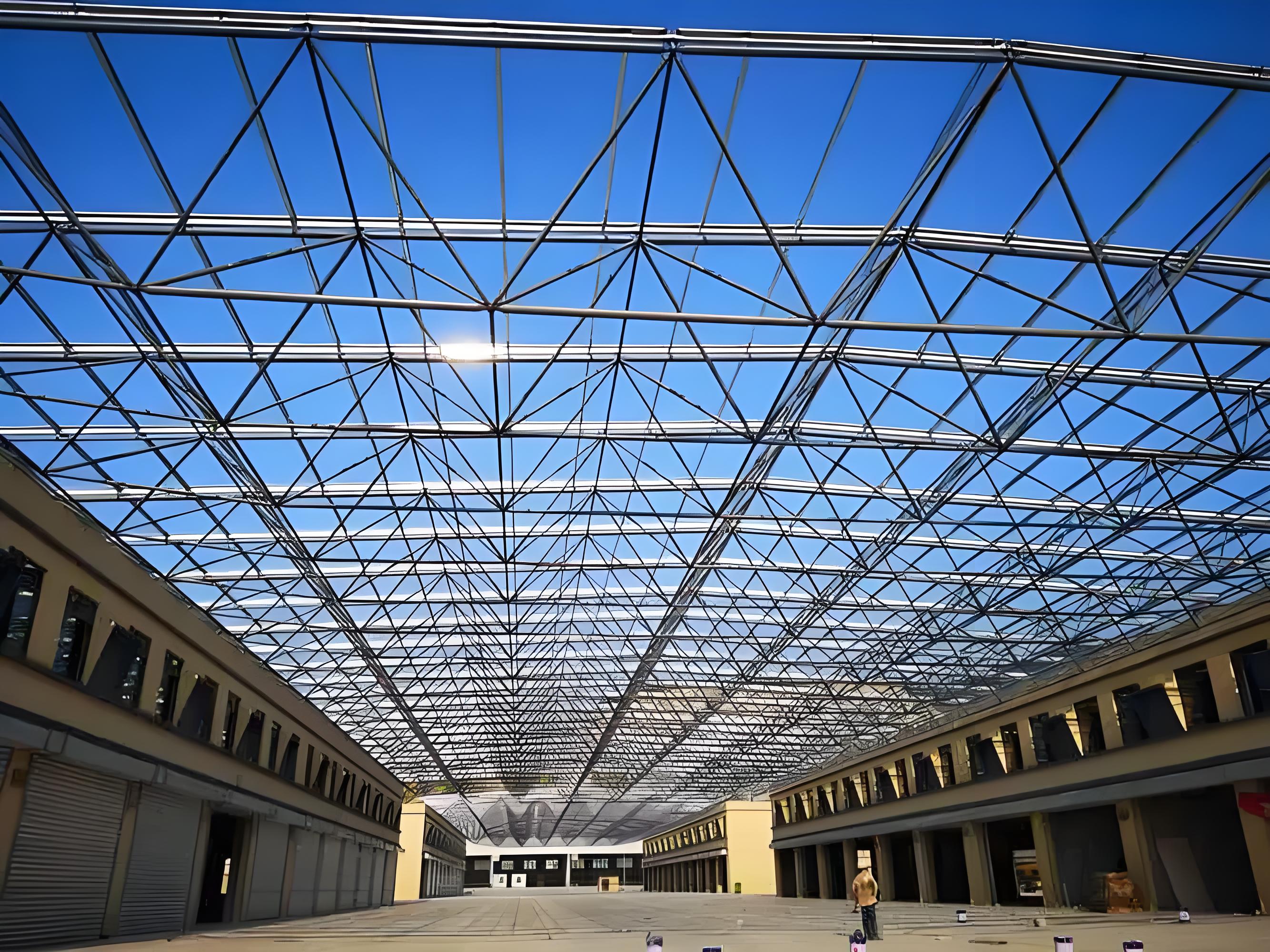

Steel Structure Overview

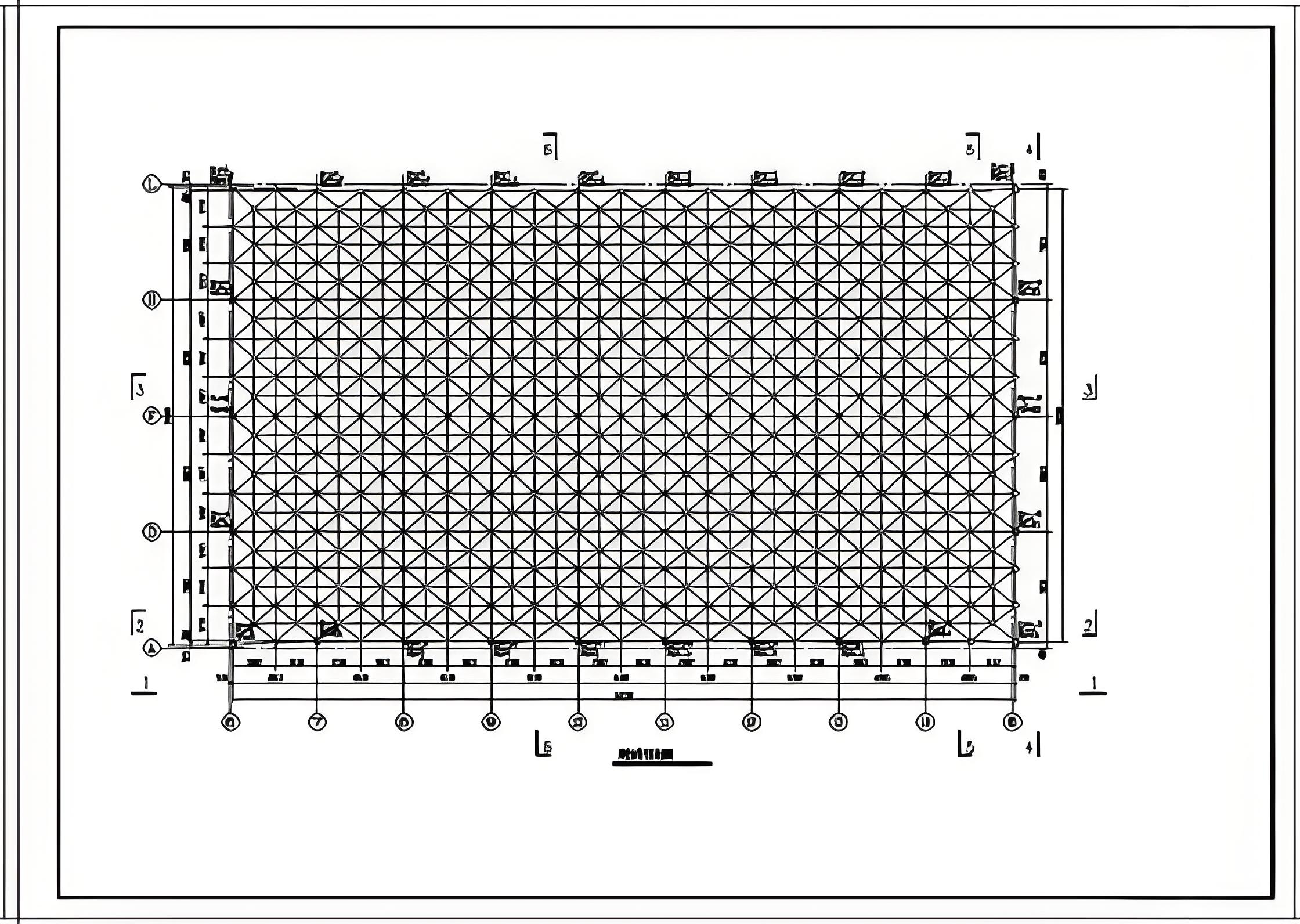

Steel Structure Detail 1

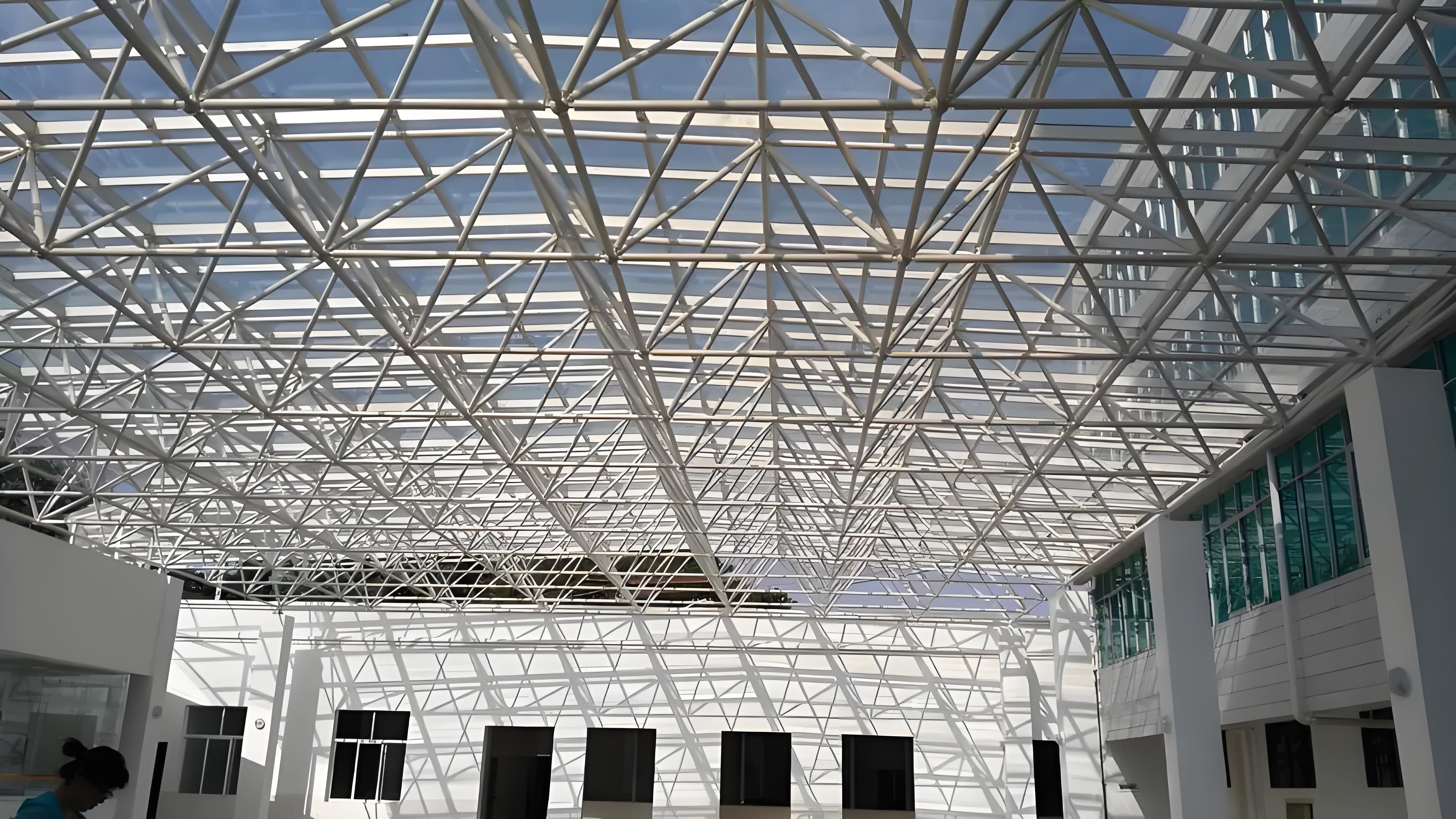

Steel Structure Detail 2

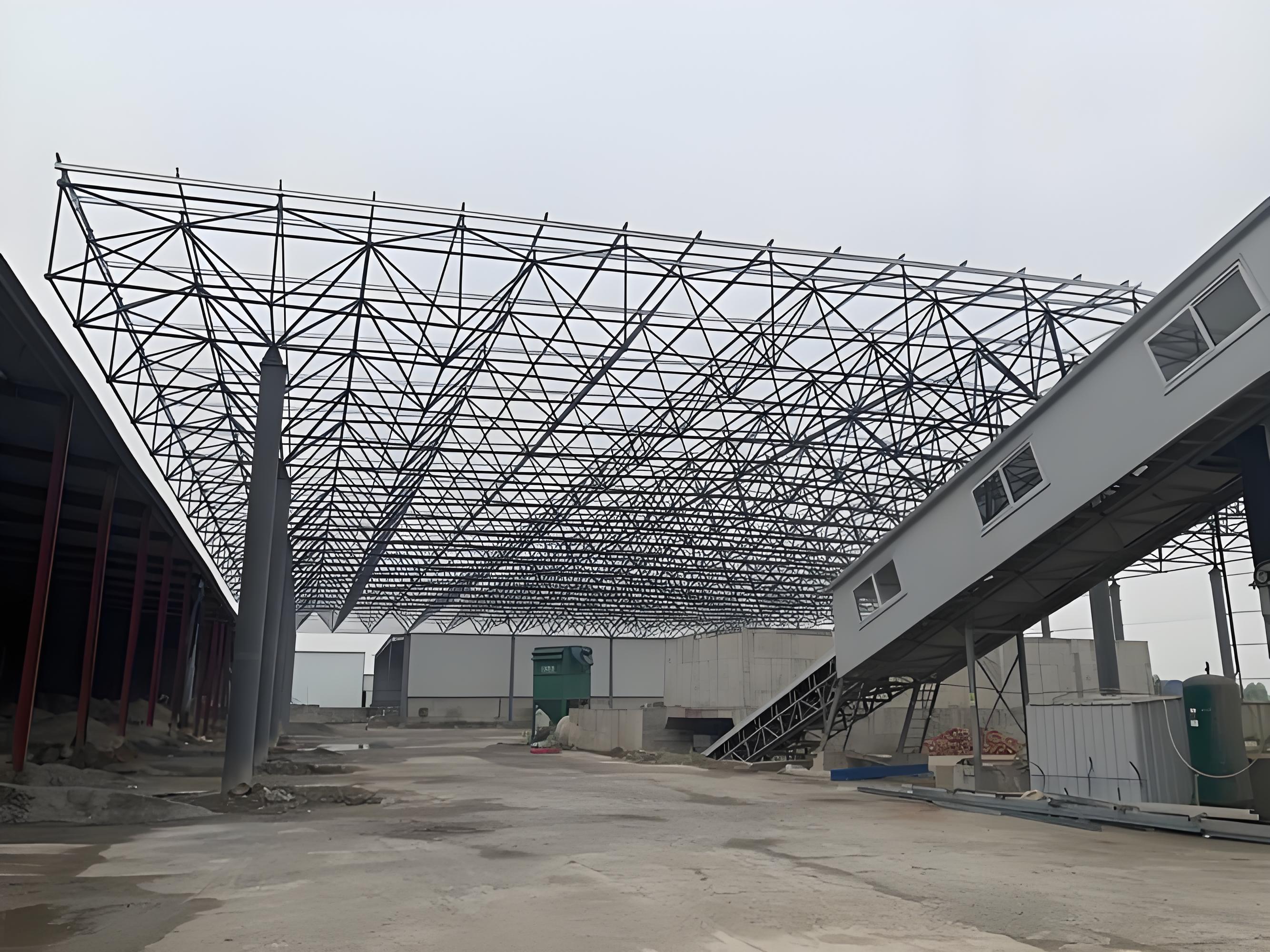

Steel Structure Detail 3
I. Material Grade
  • Carbon Structural Steel: Q235
  • High-Strength Structural Steel: Q345
  • Special Purpose Steel
II. Quality Standard
  • Certificate: ISO9001:2000
  • Steel Structure Design: GB 50017-2003
  • Cold-Formed Thin-Wall Steel: GB50018-2002
  • Building Load Design Code: GB 50009-2006
  • Construction Acceptance of Steel: GB50205-2001
  • High Strength Steel Structure Code: JGJ82-2011
  • Welding Specification: JGJ 81-2002
  • Tall Building Steel Specification: JGJ99-98
III. Structure Assembly
  • Steel Framework: Component: H-Column, H-Beam & C/Z-Purlin
  • Connection Method: Welding or Bolted
  • Surface Treatment: Painting or Galvanized
  • Roof & Wall: Colored steel tiles or colored steel sandwich panels as per request
  • Doors: Rolling or Pushing doors, as requested
Structure Parameters & Material Specifications
Structure Type Bolted ball jointed space frame
Shape Any custom shapes
Design Code NSCP
Wind Load 2(200kph)
Earthquake Load 4(Z=0.4)
Live Load 50kg/sq.m
Dust Load 10kg/sq.m
Temperature +/-30°C
Snow Load Anchor, ordinary, high strength bolt
Bolt Ball Steel #45, epoxy zinc primer with PU paint
Tube Steel Q235, epoxy zinc primer with PU paint
Sleeve Steel Q235 & #45, galvanization
Roof & Wall Panel Al Mg Mn Panel roofing, steel sheet

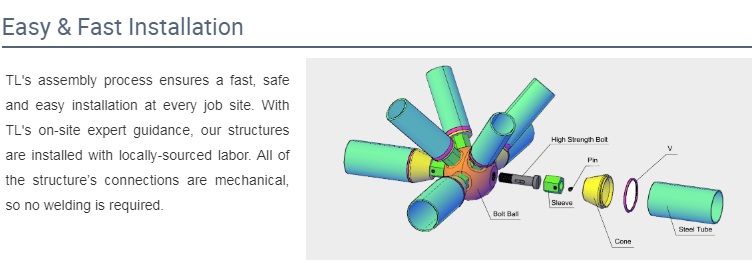

Structural Details and Connections
Production Process

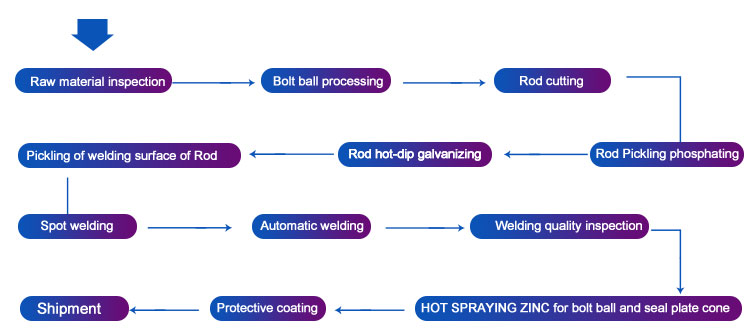

Production Process Step 1
Production Process Step 2
Sample Room
Sample Room Showroom
Package & Shipment
Package and Loading Process
Company Profile
Steel Structure Facility Profile 1
Steel Structure Facility Profile 2
Exhibition
Company Exhibition Booth
FAQ
What grades of steel are primarily used in your structures?
We primarily utilize Q235 Carbon Structural Steel and Q345 High-Strength Structural Steel to ensure optimal load capacity, safety, and durability tailored to specific architectural requirements.
Which international standards do your steel structures comply with?
Our structural designs comply with international standards such as ISO9001:2000, GB 50017-2003 (Code for design of steel structure), and NSCP design specifications to guarantee global quality acceptance.
Can your bolted ball jointed space frames be built in custom shapes?
Yes, our bolted ball jointed space frames can be designed and manufactured in virtually any custom geometric shape required for your specific industrial or commercial project.
How do your steel structures perform under extreme weather conditions?
They are specifically engineered to withstand heavy environmental loads, with wind load resistances up to 2 (200kph), Zone 4 (Z=0.4) earthquake loads, and wide temperature tolerances from +/-30°C.
What anti-corrosion surface treatments are available?
We offer professional-grade surface treatments including hot-dip galvanization, structural painting, and epoxy zinc primers finished with high-durability Polyurethane (PU) paint to ensure long-lasting rust protection.
What choices are offered for roof and wall panels?
Depending on thermal insulation and architectural requirements, we offer Al-Mg-Mn (Aluminum-Magnesium-Manganese) roofing panels, standard steel sheets, colored steel tiles, or colored steel sandwich panels.
