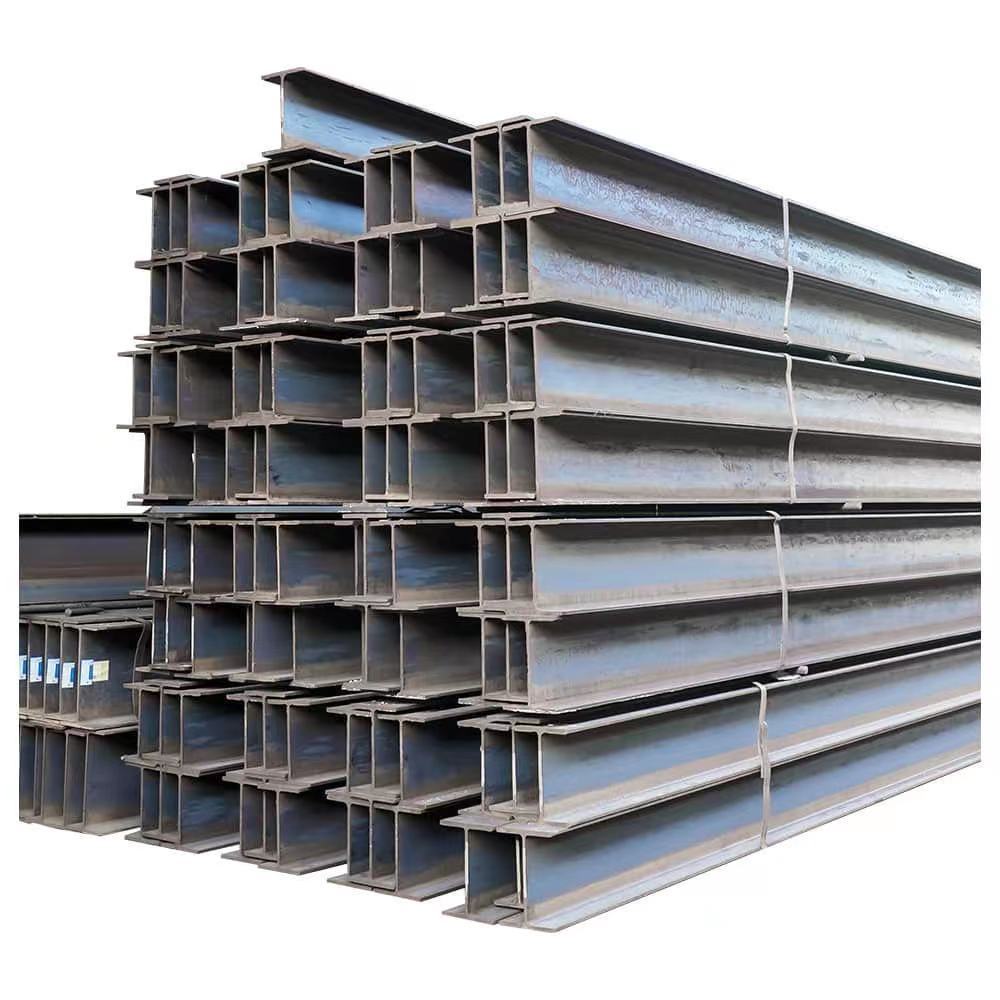

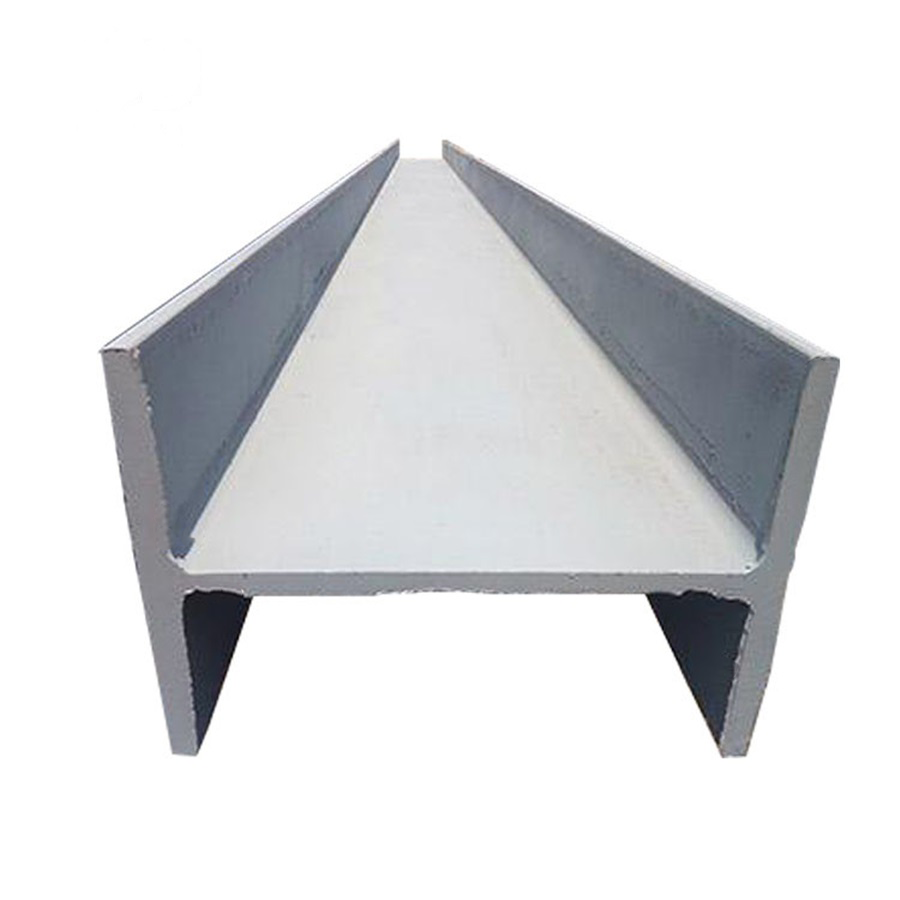

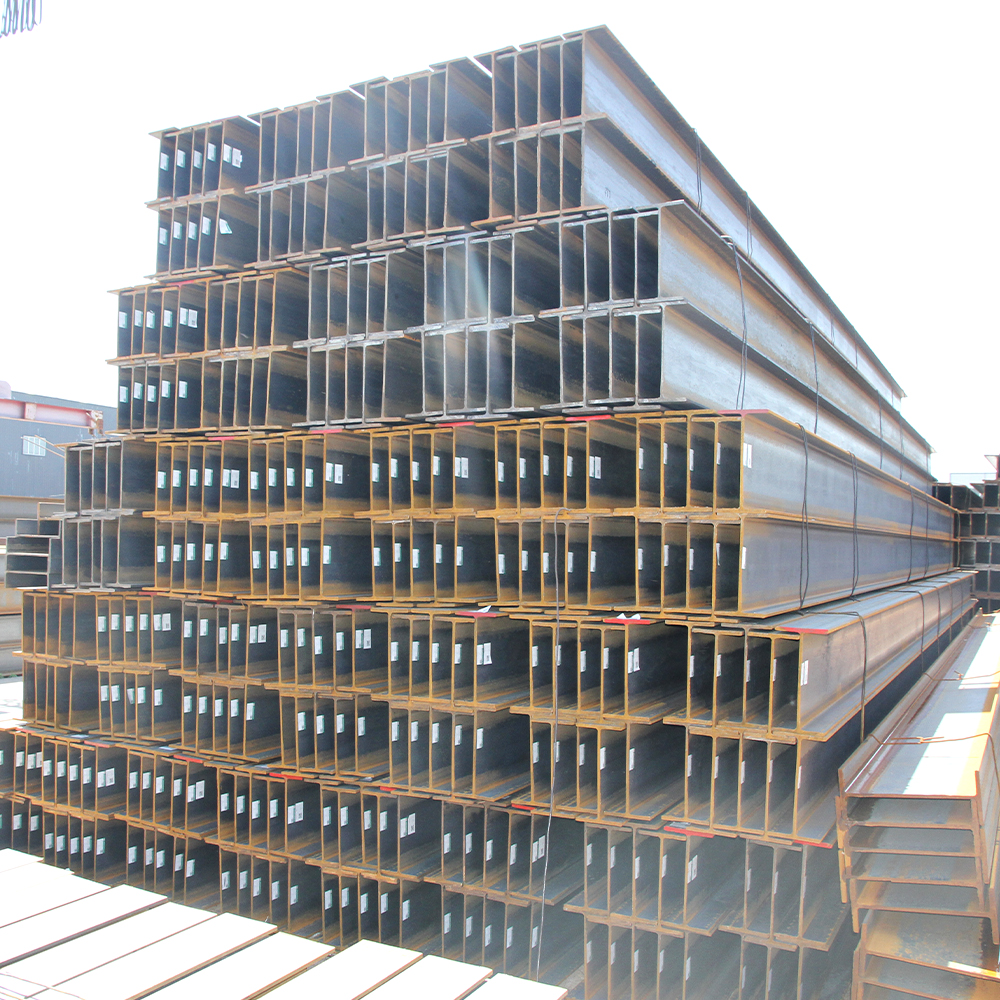

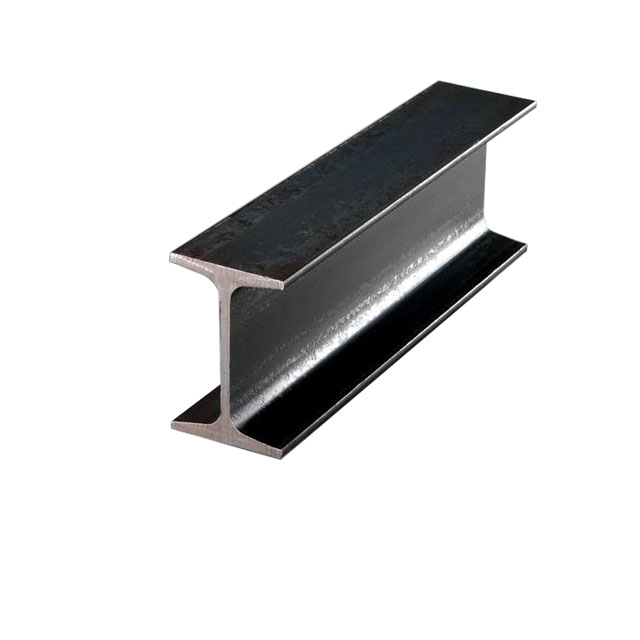

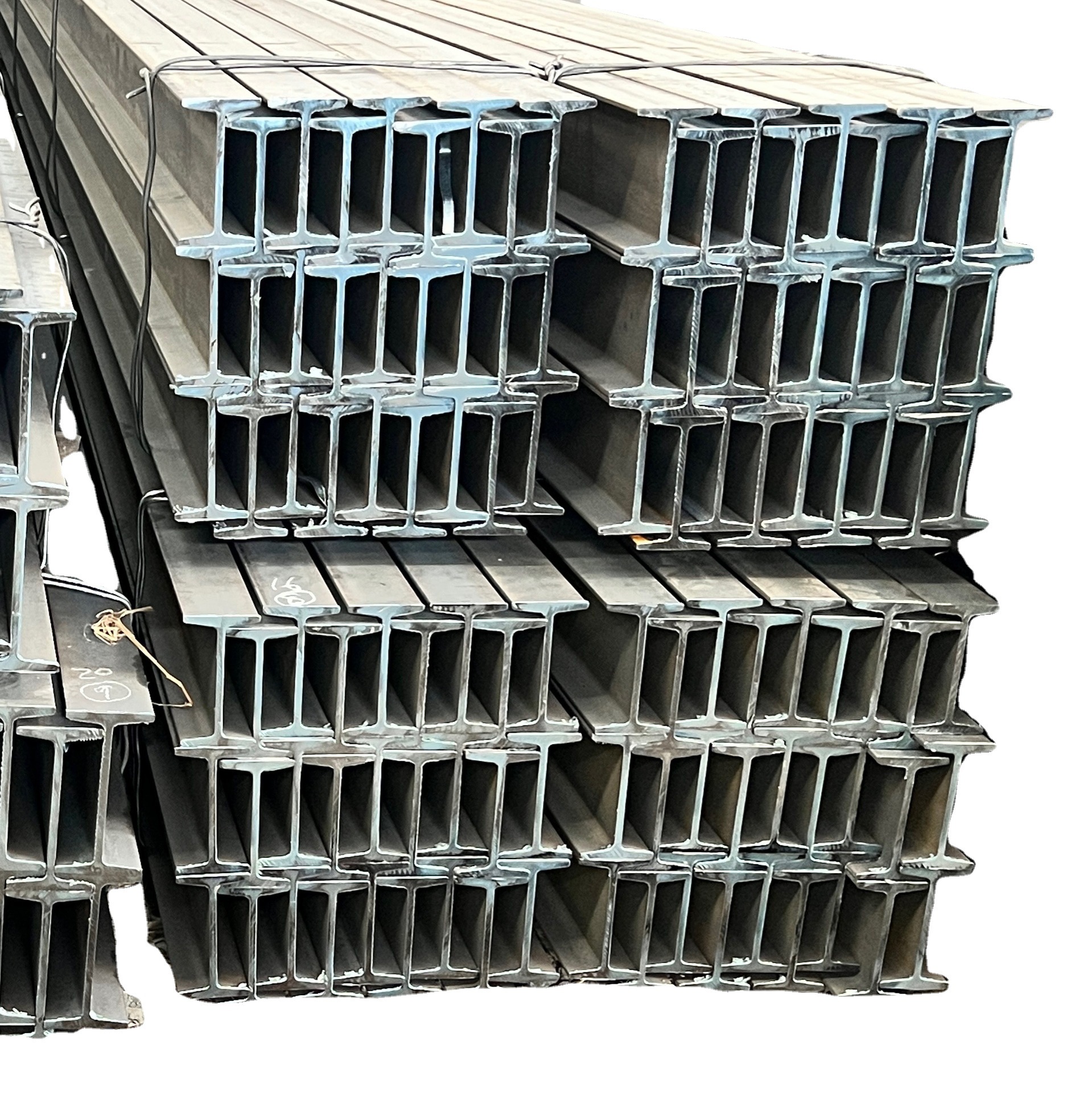

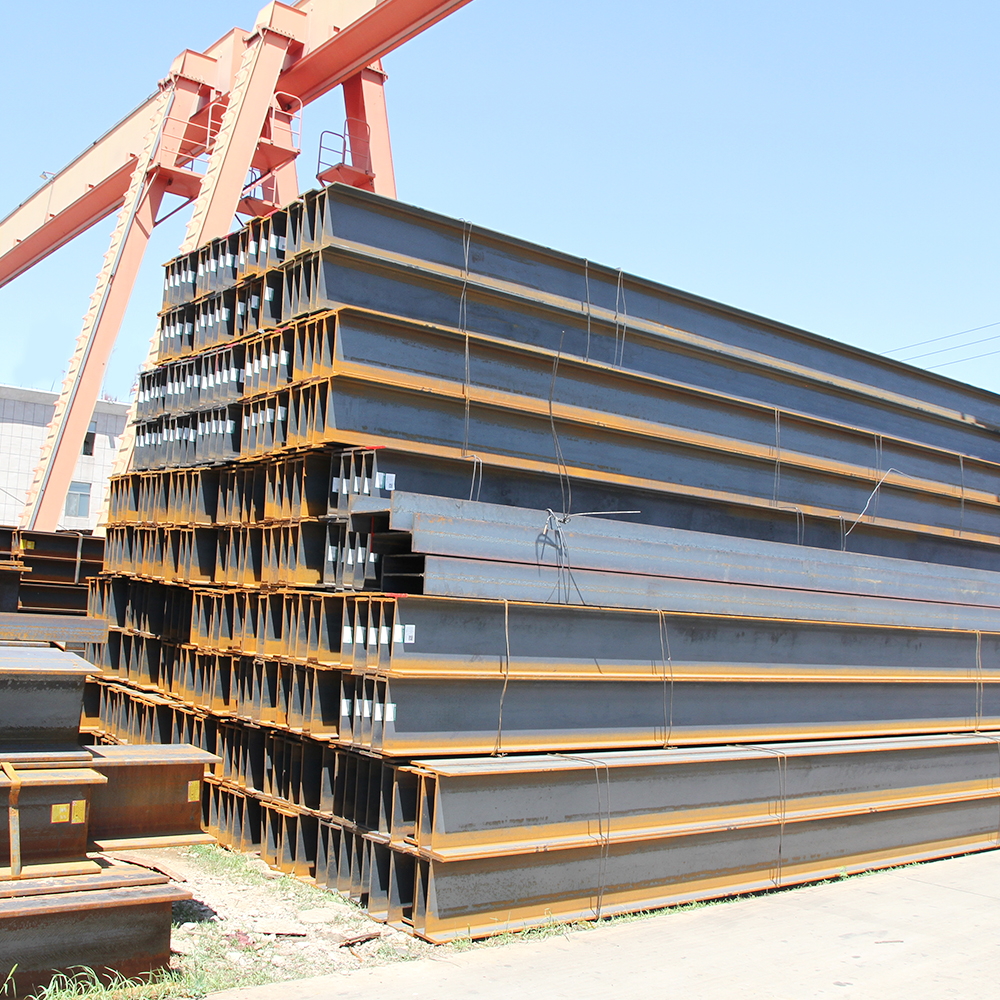

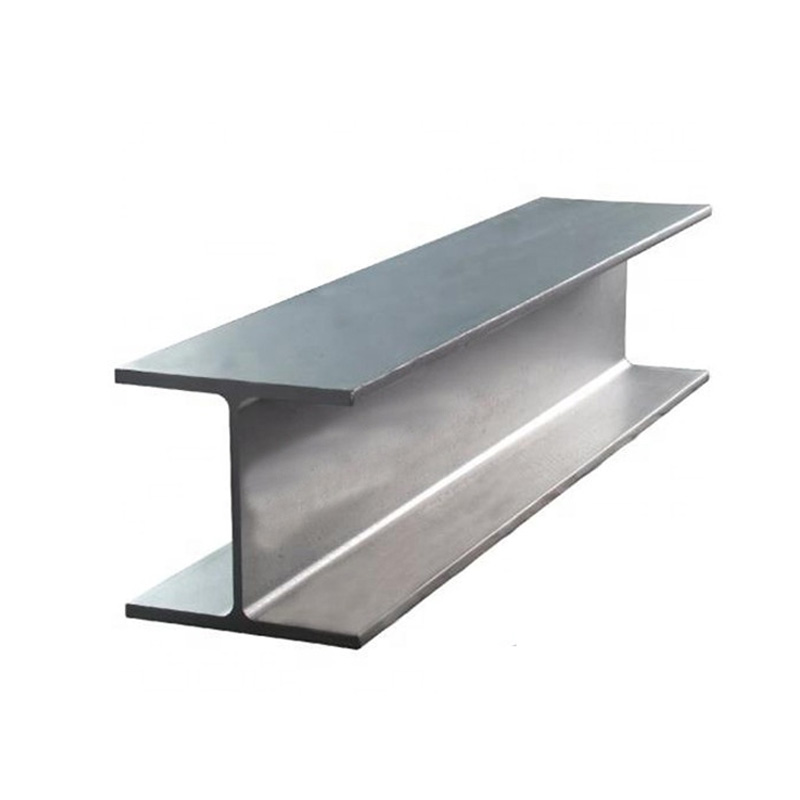

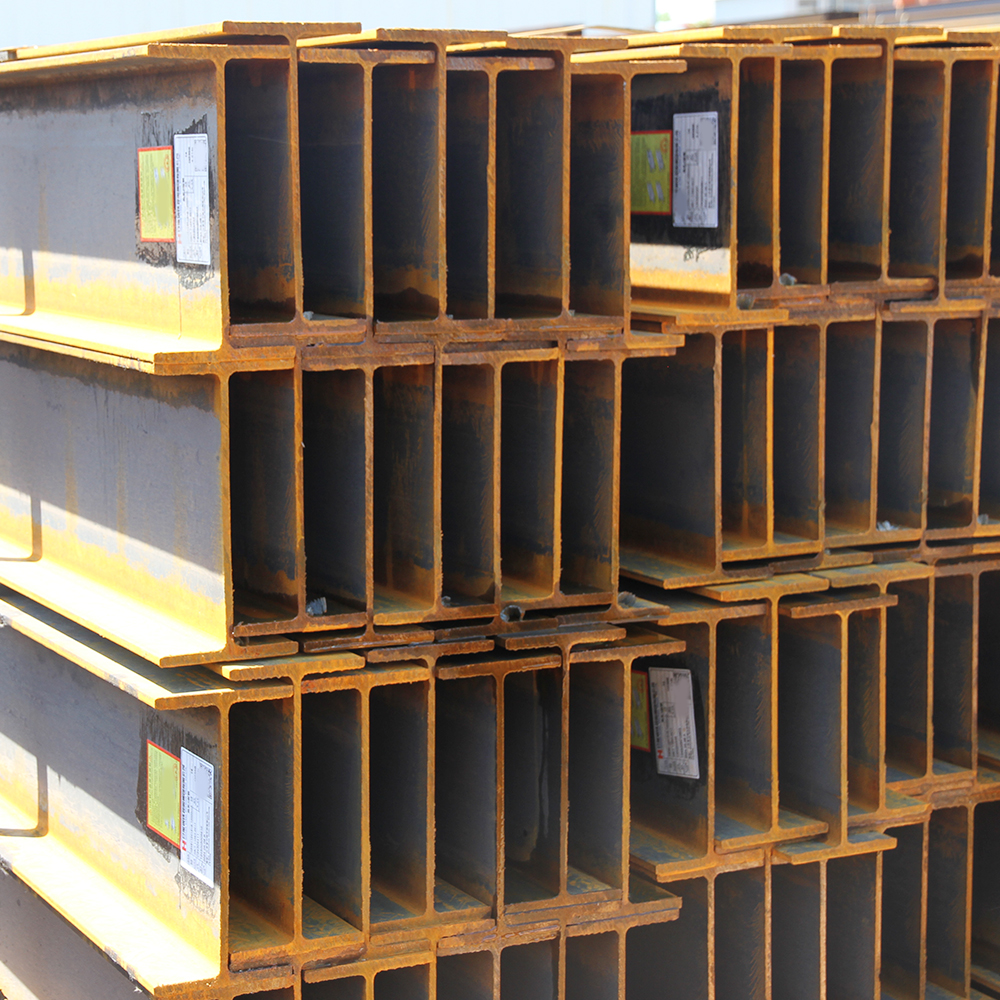

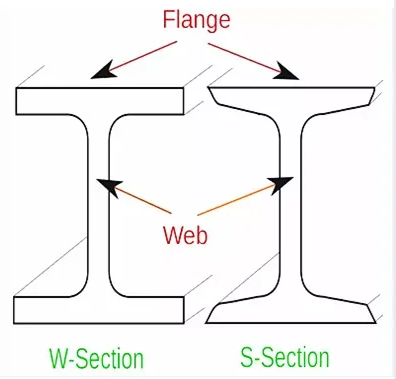

H-beam is a new type of economic construction steel. The section shape of H-shaped steel is economical and reasonable, and the mechanical properties are good. The points on the section during rolling are more uniform and the internal stress is small. Compared with ordinary I-beam, it has the advantages of large section modulus, light weight, and metal saving.
The section size of H-shaped steel is regular, the moment of inertia and resistance are large, and it has excellent mechanical properties which allow it to bear significantly greater weight and ensure structural integrity under heavy loads.
Powerful manufacturers support non-standard customization. The production cycle is fast and efficient while strictly guaranteeing product quality according to project demands.
The product adopts professional processing technologies. Backed by years of accumulated industry experience and professional technical expertise, the overall stability and corrosion resistance of the steel is greatly enhanced.
| Property | Details | |||
|---|---|---|---|---|
| Material Grade | Q195, Q215, Q235B, Q345B, S235JR/S235/S355JR/S355, SS440/SM400A/SM400B, SS400-SS540 Series, ST Series, A36-A992 Series, Gr50 Series | |||
| Size Range | Length: 6m - 12m | |||
|

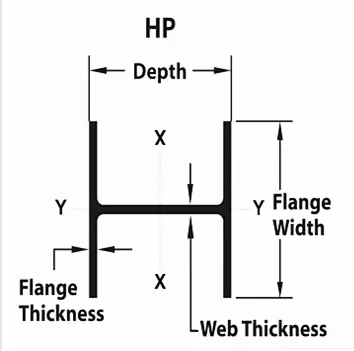

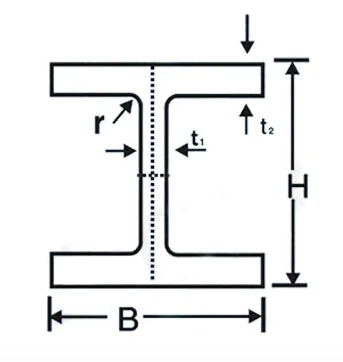

1. Web Width (H): 100 - 900mm 2. Flange Width (B): 100 - 300mm 3. Web Thickness (t1): 5 - 30mm 4. Flange Thickness (t2): 5 - 30mm |
||||

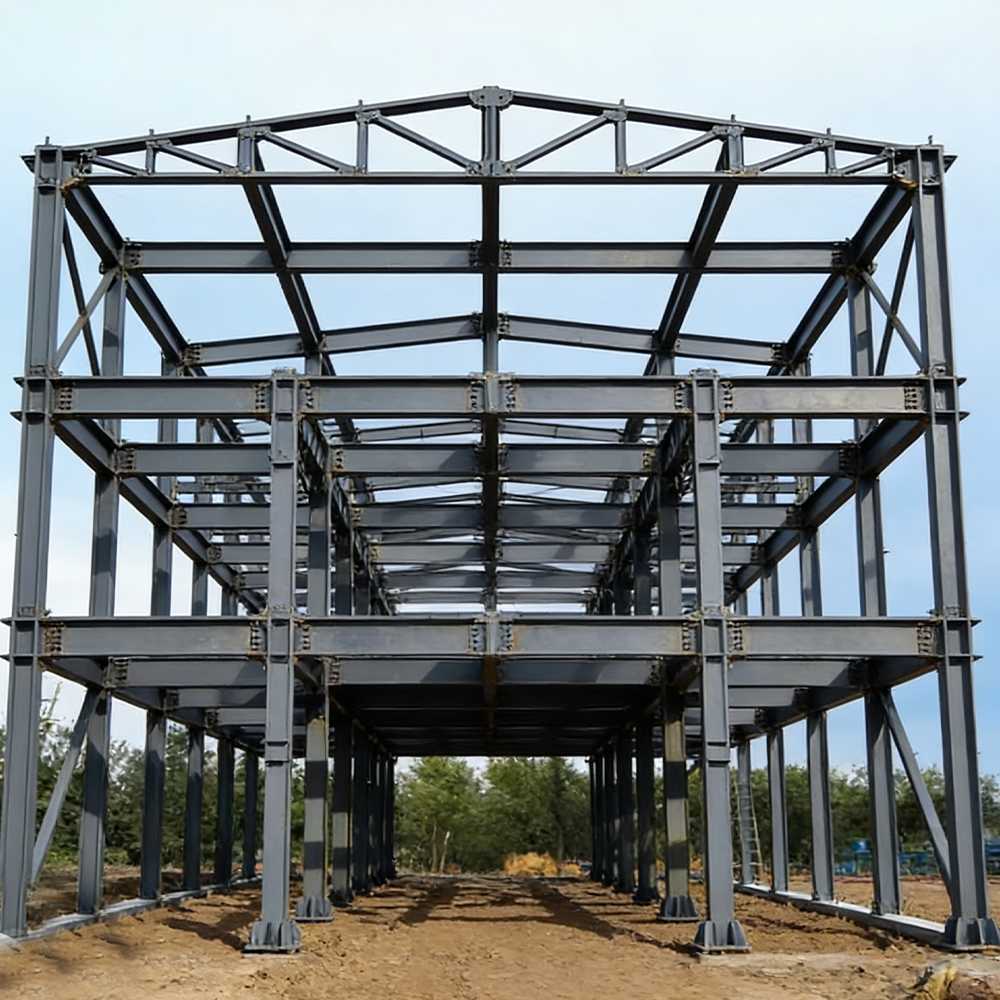

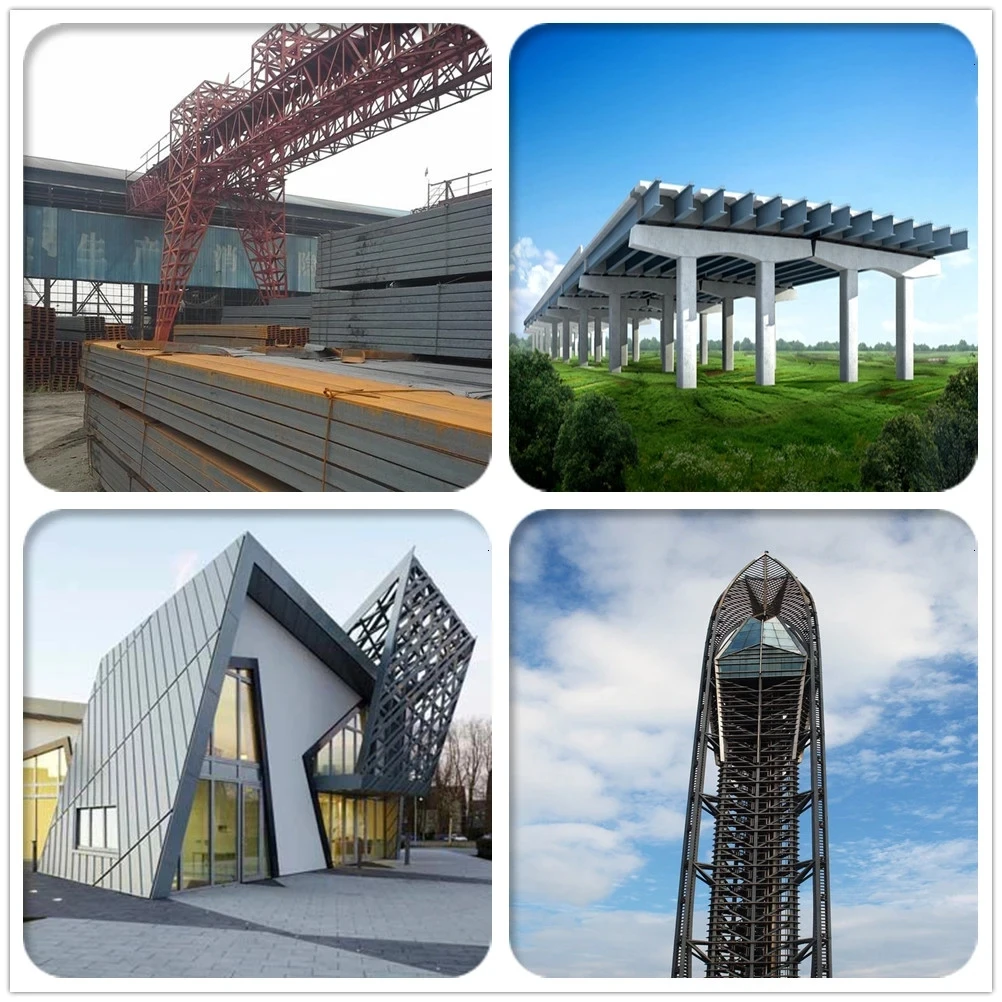

| Application | Building structure and engineering structures, such as structural beams, bridges, transmission towers, lifting and transportation machinery, shipbuilding, industrial furnaces, reaction towers, container frames, and warehouse structures. | |||
| Technique | Hot Rolled | |||

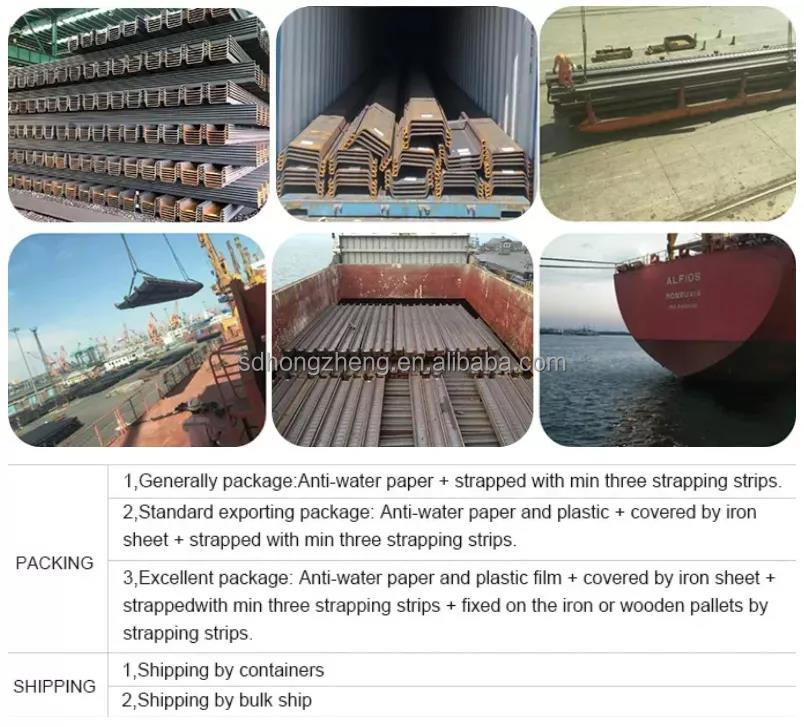

| Packing | Export standard packing or customized according to customer requirements | |||
| Code | Specification (mm) | Height (mm) | Breadth (mm) | Web Thickness t1 (mm) | Flange Thickness t2 (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|---|---|---|
| HW | 100 * 100 | 100 | 100 | 6 | 8 | 16.9 |
| 125 * 125 | 125 | 125 | 6.5 | 9 | 23.6 | |
| 150 * 150 | 150 | 150 | 7 | 10 | 31.1 | |
| 175 * 175 | 175 | 175 | 7.5 | 11 | 40.4 | |
| 200 * 200 | 200 | 200 | 8 | 12 | 49.9 | |
| HM | 150 * 100 | 148 | 100 | 6 | 9 | 20.7 |
| 200 * 150 | 194 | 150 | 6 | 9 | 29.9 | |
| 300 * 200 | 294 | 200 | 8 | 12 | 55.8 | |
| 350 * 250 | 340 | 250 | 9 | 14 | 78.1 | |
| HN | 150 * 75 | 150 | 75 | 5 | 7 | 14.0 |
| 175 * 90 | 175 | 90 | 5 | 8 | 18.0 | |
| 200 * 100 | 200 | 100 | 5.5 | 8 | 20.9 | |
| 300 * 150 | 300 | 150 | 6.5 | 9 | 41.2 | |
| 400 * 150 | 400 | 150 | 8 | 13 | 55.2 |

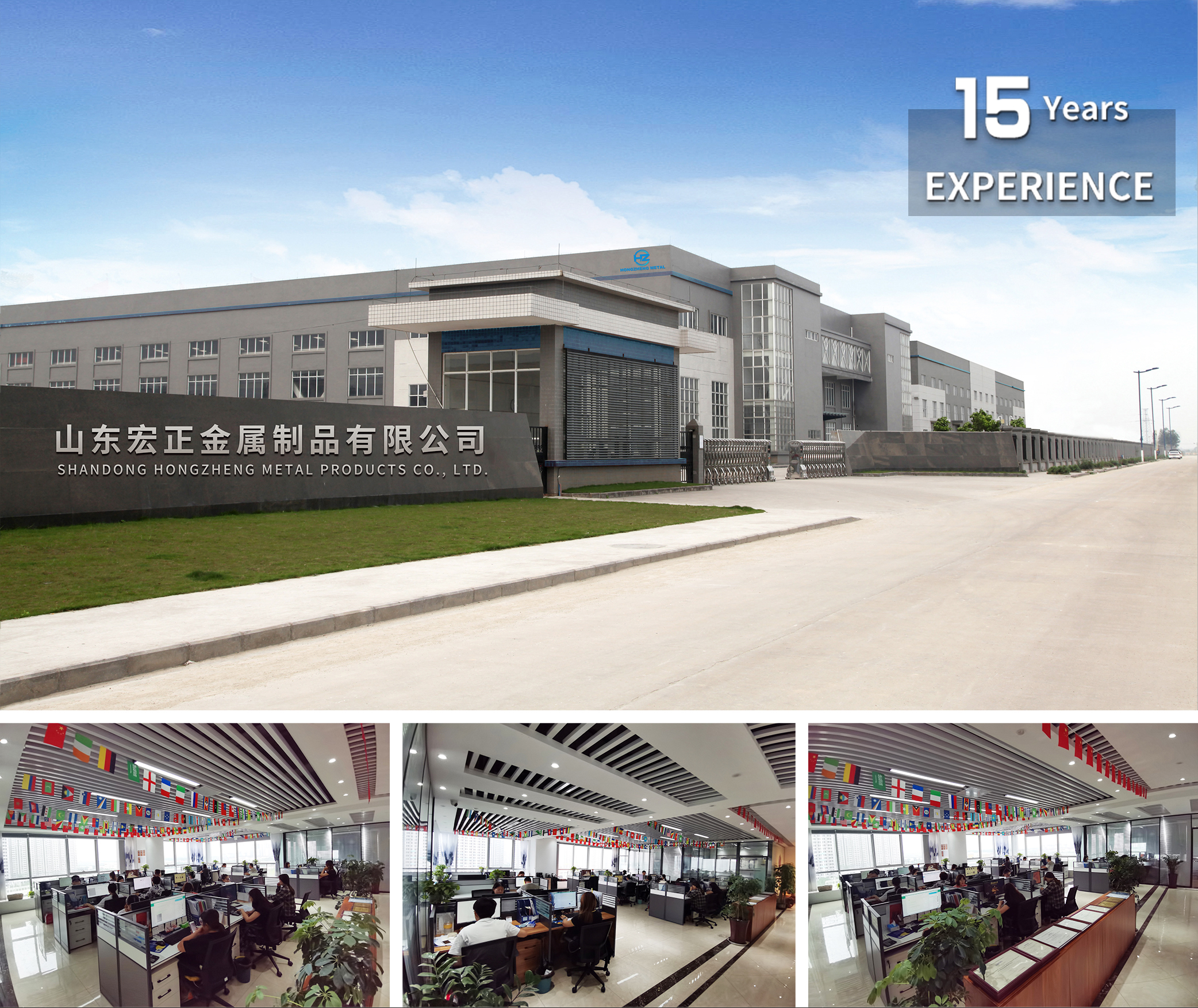

We are a specialized steel sales company integrating domestic trade and foreign trade. Our diverse product catalog includes stainless steel, seamless pipe, color coated plate, galvanized sheet, aluminized sheet, aluminum sheet, copper sheet, profiles, building materials, and pipe series. These products are widely used in chemical, pharmaceutical, electric power, railway, automotive, paper making, and construction engineering industries.
