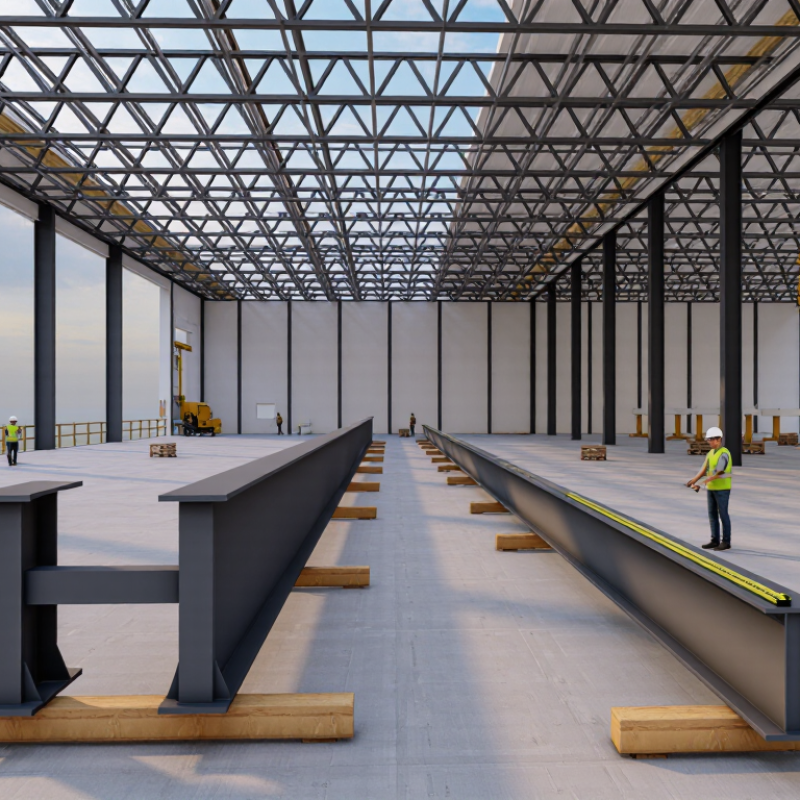

How to Choose H Beam or I Beam for a Warehouse?

Time：2026-09-20 Author：Liam
0%

Table of Contents

Choosing the right steel section can determine whether a warehouse feels stable, efficient, and ready for future loads. The decision is not simply about choosing the stronger-looking profile. It depends on span length, roof weight, crane loads, wind pressure, connection details, and local design requirements. For many project teams, understanding how to choose between H-beam and I-beam for warehouse construction is an early, important step.

Structural design educator Dr. Jonathan Ochshorn offers a practical reminder: “A structural member must be selected for its actual forces, not its appearance.” That principle matters on a busy warehouse site. An H-beam usually provides a wider flange and stronger resistance in multiple directions. It may suit columns, heavy frames, and areas carrying substantial axial loads. An I-beam often offers an efficient shape for bending. It can work well as a roof beam, floor beam, or secondary support when loads remain predictable.

But the answer is rarely automatic. A wide H-beam can increase material cost, lifting weight, and connection complexity. A lighter I-beam may reduce weight, yet deflection could become uncomfortable under long spans. Real projects also reveal awkward issues. Available mill sizes may limit the ideal design. Delivery access may influence the final choice. I have seen drawings look perfect until fabrication begins. Therefore, this comparison should support, not replace, calculations by a qualified structural engineer. The safest choice balances strength, serviceability, cost, fabrication, and future expansion.

How to Choose H Beam or I Beam for a Warehouse?
Table of Contents [Hide]
1 Define the Structural Roles of H Beams and I Beams in Warehouses
2 Compare Beam Shapes, Strength, Weight, and Load-Bearing Performance
3 Assess Warehouse Loads, Spans, Heights, and Environmental Conditions
4 Select the Suitable Beam Based on Design, Cost, and Construction Needs
5 Verify Safety, Standards, Connections, and Professional Engineering Approval

Define the Structural Roles of H Beams and I Beams in Warehouses

H beams and I beams perform different structural roles in a warehouse. An H beam has a wider flange and a thicker web, creating strong two-way resistance. Engineers often use it for columns, portal frames, and heavily loaded transfer members. It handles axial compression more effectively. I beams usually have narrower flanges and suit primary or secondary floor beams, roof rafters, and crane runway members.

Load paths matter. A warehouse roof transfers snow, wind, and equipment loads into rafters, columns, and foundations. AISC 360-22 requires checks for bending, shear, compression, and lateral-torsional buckling. The AISC Steel Construction Manual also stresses connection design, not just member selection. A beam that looks adequate can fail through weak bolts, local buckling, or poor bracing. This is where practical judgment matters.

The World Steel Association reported 1,892.2 million tonnes of crude steel production in 2023. That scale supports broad availability, but it does not make every section interchangeable. Site spans, rack loads, crane impact, fire requirements, and local design codes must guide the choice. An H section may reduce column movement, while an I section may lower roof weight. Not always. The boundary is not absolute. A qualified structural engineer should verify the complete load path, including foundations and connections, before fabrication. A small change in flange width can alter stability, cost, and installation effort. That detail is easy to underestimate.

Compare Beam Shapes, Strength, Weight, and Load-Bearing Performance

How to Choose H Beam or I Beam for a Warehouse?

Compare Beam Shapes, Strength, Weight, and Load-Bearing Performance

Choosing an H beam or I beam starts with the load path, not appearance. An I beam has narrow flanges and a deeper web, making it efficient for long roof spans and strong-axis bending. An H beam usually has wider, thicker flanges. This geometry improves lateral stability and performs better when columns carry compression or bending in two directions. The difference becomes visible on site: an I beam may flex across a long bay, while an H beam can feel more stable under heavy rack loads.

Weight alone does not prove strength. The AISC Shapes Database lists each section’s weight, moment of inertia, and plastic section modulus, allowing engineers to compare capacity directly. AISC design guidance commonly uses ASTM A992 steel, with a minimum yield strength of 50 ksi and tensile strength of 65 ksi. However, actual warehouse performance also depends on unbraced length, connections, deflection limits, and local buckling. ASCE/SEI 7-22 requires designers to consider dead, live, wind, seismic, and other applicable loads. A lighter section may reduce steel tonnage, but it can create costly vibration or deflection problems. That trade-off is easy to underestimate.

Tips: Compare pounds per foot with Ix and Zx, not by shape name alone. Check rack impact loads and forklift zones. Ask for a load combination review under the governing building code. I have seen preliminary selections change after connection design. That is normal. Use measured spans and support conditions, not rough sketches.

How to Choose H Beam or I Beam for a Warehouse? — Compare Beam Shapes, Strength, Weight, and Load-Bearing Performance
Comparison Dimension H Beam I Beam Warehouse Selection Consideration
Cross-Section Shape Wide flanges with a relatively large flange width compared with the section depth. The section resembles the letter “H”. Narrower flanges and a deeper web relative to flange width. The section resembles the letter “I”. H beams provide a wider bearing and connection surface; I beams are often more efficient when depth is available.
Typical Structural Role Suitable for columns, heavily loaded beams, portal-frame members, crane-support members, and major warehouse girders. Commonly used for floor beams, roof beams, joists, secondary framing, and members where bending efficiency is important. Select the section according to the structural system, span, connection details, buckling restraint, and applied loads.
Bending Strength About Major Axis High when the section has substantial flange area and depth. Wide flanges can provide high section modulus. High for its weight when the section is relatively deep, because more material is positioned away from the neutral axis. For the same steel grade, compare the required plastic or elastic section modulus rather than relying on the profile name alone.
Weak-Axis Resistance Generally better than a narrow-flange I beam of similar depth because the wider flanges distribute material farther from the weak axis. Usually lower than a wide-flange H beam of similar depth, although the exact value depends on the selected section. H beams are often advantageous for columns and members subject to biaxial bending or weak-axis buckling.
Axial Compression Capacity Often favorable because of greater cross-sectional area and improved weak-axis properties in comparable heavy sections. Can be adequate for lightly or moderately loaded columns, but slenderness and weak-axis buckling may govern. Column design must consider effective length, end restraints, local buckling, lateral-torsional effects, and the applicable design code.
Weight Efficiency Heavy H sections can carry substantial axial and bending loads, but may weigh more than a suitably deep I beam for a single-axis bending application. Often weight-efficient for long-span, gravity-loaded beams when lateral restraint is provided and depth is available. Compare strength and deflection at the required span; the lightest section is not automatically the most economical after connections and bracing are included.
Lateral-Torsional Buckling Wide flanges may improve lateral stability, but an unrestrained compression flange can still twist and buckle. Generally more sensitive to lateral-torsional buckling when the compression flange is unrestrained. Roof decking, purlins, floor slabs, and dedicated braces should be checked as sources of lateral restraint.
Connection and Bearing Surface Wide flanges make base plates, end plates, clips, seats, and beam-to-column connections easier to arrange in many layouts. Narrower flanges can require more compact connection detailing and careful checking of local flange and web stresses. Check bolt spacing, weld access, bearing length, web crippling, flange bending, and erection tolerances.
Deflection Performance Can provide high stiffness, especially in heavy sections with large second moments of area. Can provide excellent stiffness-to-weight performance when a deeper section is acceptable. Check serviceability limits for roof members, crane girders, mezzanine beams, cladding support, and vibration-sensitive areas.
Best General Use in a Warehouse Main columns, heavily loaded portal frames, crane runway supports, transfer beams, and members with significant weak-axis demands. Secondary roof beams, floor beams, joists, and long-span members where major-axis bending controls. Use a structural design calculation for final selection; shape alone does not determine load-bearing capacity.
Representative Standard Section HEA 300, European wide-flange H section IPE 300, European I section These standardized sections illustrate the difference in geometry and properties; they are not brand-specific products.
Overall Depth 290 mm 300 mm Similar overall depth allows a useful comparison of flange width, area, stiffness, and mass.
Flange Width 300 mm 150 mm The wider H-beam flange generally improves weak-axis behavior and provides more connection and bearing width.
Web Thickness 8.5 mm 7.1 mm Web thickness affects shear resistance, web buckling, concentrated-load resistance, and connection detailing.
Flange Thickness 14.0 mm 10.7 mm Flange thickness affects local buckling, compression resistance, flange bending, and connection capacity.
Cross-Sectional Area 112.5 cm² 53.8 cm² The larger area of the representative H section gives it greater axial resistance before buckling effects are considered.
Mass per Unit Length 88.3 kg/m 42.2 kg/m Transport, lifting, foundation reactions, and connection forces should be checked when using a heavier section.
Major-Axis Second Moment of Area 18,260 cm⁴ 8,356 cm⁴ A higher value generally indicates greater resistance to major-axis deflection for the same material and span conditions.
Minor-Axis Second Moment of Area 6,310 cm⁴ 604 cm⁴ The representative H section has substantially greater weak-axis stiffness, which is useful for columns and biaxial loading.
Major-Axis Elastic Section Modulus 1,260 cm³ 557 cm³ Section modulus is used with the design bending stress to evaluate elastic bending resistance.
Minor-Axis Elastic Section Modulus 420.7 cm³ 80.5 cm³ The difference demonstrates why wide-flange sections are often preferred where weak-axis bending or buckling is important.
Illustrative Steel Weight for a 12 m Member Approximately 1,060 kg Approximately 506 kg Calculated as mass per metre × 12 m; actual fabricated weight includes plates, stiffeners, welds, bolts, and connection components.
Load-Bearing Conclusion Generally the stronger and stiffer option in the representative comparison, particularly for axial load and weak-axis performance, but also substantially heavier. Generally the lighter and more material-efficient option for major-axis bending when lateral restraint and adequate depth are available. Final selection must be based on factored loads, span, support conditions, load combinations, steel grade, stability checks, deflection limits, and the governing structural design standard.
Note: The representative HEA 300 and IPE 300 values are nominal published geometric properties for standardized European sections. Actual design resistance depends on steel grade, section classification, unbraced length, shear, local buckling, connection behavior, fire requirements, corrosion allowance, and the applicable building code.

Assess Warehouse Loads, Spans, Heights, and Environmental Conditions

How to Choose H Beam or I Beam for a Warehouse?

Assess the actual warehouse loads before selecting a section. ASCE 7-22 lists storage live loads of 125 psf for light storage and 250 psf for heavy storage. Forklift traffic, pallet impacts, suspended equipment, and fire systems can increase design demand. I beams often suit long roof spans because their flanges resist bending efficiently. H beams usually provide greater stability for columns, especially under heavy axial loads. Still, a larger section is not automatically safer.

Span and height change the calculation. A 30-meter roof span may need deeper beams, intermediate frames, or reduced spacing. Tall columns face greater buckling risk, particularly when bracing is limited.

AISC 360-22 requires checks for strength, stability, deflection, and connections.

Deflection matters.

A roof can remain technically strong while ponding water or damaging cladding.

Environmental conditions also influence the choice. ASCE 7-22 requires site-specific wind, snow, seismic, and rain design values. Coastal humidity may require corrosion protection and regular thickness inspections. Cold regions can reduce steel toughness, while fire exposure may require protection systems.

Beam labels vary by region, so verify dimensions and section properties from certified tables. I have seen preliminary designs fail at the connection, not the beam. That mistake deserves more attention.

A structural engineer should review the load path, foundation reactions, bracing, and future storage changes before fabrication.

Select the Suitable Beam Based on Design, Cost, and Construction Needs

How to Choose H Beam or I Beam for a Warehouse?

Choosing between an H beam and an I beam starts with the warehouse design. H beams have wider flanges and a more balanced shape. They often perform well as columns, where axial loads and buckling stability matter. I beams usually have narrower flanges and can provide efficient bending strength for roof beams or floor supports. The final choice should follow structural calculations, local codes, and an engineer’s review.

Cost is more than the steel price per ton. Compare material weight, cutting, drilling, welding, transport, and connection details. A lighter I beam may reduce lifting costs, but extra bracing could remove that advantage. An H beam may cost more initially, yet its wider flanges can simplify column connections. Check the complete system. Cheap steel can become expensive during installation.

Tips: Mark crane access, beam lengths, and connection locations before ordering. Ask the fabricator to confirm tolerances and hole positions. Consider fire protection and corrosion exposure near loading doors. Recheck deflection, vibration, and future storage loads. Small design changes matter. A common mistake is choosing by weight alone. That approach feels practical, but it can overlook erection time and long-term maintenance. Use verified load data, documented calculations, and qualified professionals before fabrication begins.

Verify Safety, Standards, Connections, and Professional Engineering Approval

How to Choose H Beam or I Beam for a Warehouse?

Choosing an H beam or I beam starts with the warehouse load path, not appearance. H beams often provide wider flanges and better stability for columns or heavy frames. I beams can suit roof members, mezzanines, and moderate spans when bending controls the design. The correct section depends on span, loads, buckling, deflection, corrosion, and available connection space. A quick visual comparison is not enough.

Verify the applicable structural standards, material grades, fabrication tolerances, and inspection requirements for your location. Connections deserve equal attention. Bolt holes, weld sizes, end plates, base plates, and beam seats must transfer real forces safely. On site, a small mismatch at a connection can delay installation or create unsafe improvisation. I have seen teams focus on beam weight while overlooking lateral bracing. That is an expensive mistake. Sometimes the initial selection still needs revision after the engineer checks vibration or future storage loads.

Tips: Prepare accurate bay dimensions, rack loads, crane loads, roof equipment, and expansion plans. Ask a qualified structural engineer to review calculations, drawings, connections, and erection methods. Confirm mill certificates and inspection records before installation. Do not cut, drill, weld, or modify a primary beam without documented engineering approval. Keep the approval trail clear. It protects workers and improves reliability. Be willing to question an early design; the cheapest section is not always the safest choice.

How to Choose H Beam or I Beam for a Warehouse?

Material strength is only one part of beam selection. Verify the applicable standard, section properties, load effects, connections, stability, fire requirements, and approval by a qualified structural engineer.

Minimum specified yield strengths shown: ASTM A36 structural steel is 36 ksi (250 MPa), ASTM A572 Grade 50 is 50 ksi (345 MPa), and EN 10025-2 S355 is 355 MPa. These values do not replace design calculations or determine whether an H beam or I beam is suitable.

Reference standards: ASTM A36/A36M, ASTM A572/A572M, and EN 10025-2.

FAQS

When should I choose an I beam for a warehouse?

An I beam can suit long roof spans and strong-axis bending. Its deeper web efficiently resists bending. Check deflection carefully.

When is an H beam a better choice?

An H beam often suits columns carrying heavy compression or bending in two directions. Wider flanges improve lateral stability. Stability matters here.

Does a heavier beam always provide greater strength?

No. Weight is not strength. Compare weight, moment of inertia, section modulus, buckling resistance, and connection capacity.

What warehouse loads should the beam design include?

Consider storage loads, roof weight, forklifts, pallet impacts, suspended equipment, fire systems, wind, snow, rain, and seismic effects.

How do storage loads affect beam selection?

Light storage may use about 125 psf, while heavy storage may approach 250 psf. Confirm the governing local code and actual storage plan.

How does span length change the beam choice?

A 30-meter roof span may require deeper beams, closer frames, or intermediate supports. Long spans can create vibration and deflection problems.

Why are deflection checks important in warehouse design?

A beam may remain strong but deflect enough to damage cladding or cause roof ponding. Strength alone is incomplete.

What environmental conditions should be reviewed?

Coastal humidity may require corrosion protection and thickness inspections. Cold regions can reduce steel toughness. Fire exposure may require protection systems.

What information should engineers verify before fabrication?

Provide measured spans, support conditions, bracing, connection details, foundation reactions, and future storage changes. Rough sketches can mislead. Recheck everything.

Conclusion

Choosing the right steel section is essential for a safe, efficient, and economical warehouse structure. H-beams generally offer wider flanges, balanced strength, and strong resistance to bending, making them suitable for major columns, frames, and heavy loads. I-beams are often lighter and may be practical for secondary beams, shorter spans, or applications where reducing structural weight is important. To determine how to choose between H-beam and I-beam for warehouse construction, evaluate the building’s expected loads, span lengths, column heights, roof and storage systems, equipment movement, and environmental conditions such as wind, snow, humidity, or seismic activity.

The final selection should consider material weight, fabrication, transportation, connections, installation time, and overall project cost—not just the beam’s shape. Structural calculations must verify strength, stability, deflection, buckling resistance, and connection performance under all relevant load combinations. The design should comply with applicable building standards and receive approval from a qualified structural engineer before fabrication or construction begins.
